G337 2V

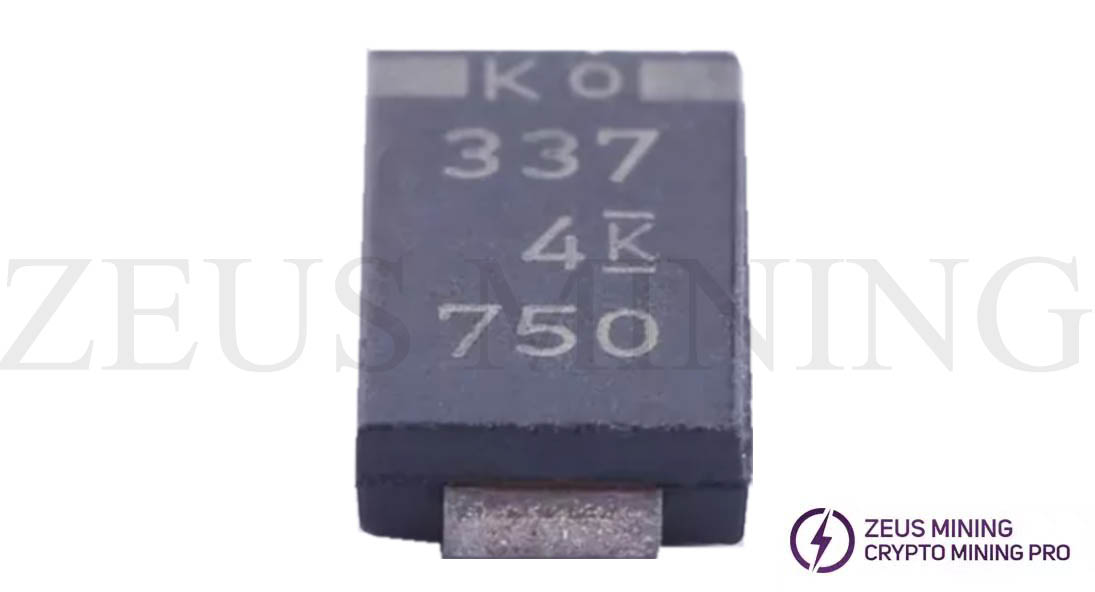

T520V337M004ATE012 capacitor / G337 2V tantalum capacitor

The G337 2V or 337 (T520V337M004ATE012) is an electrolytic capacitor with a conductive polymer cathode; It is suitable for the use of an Antmine Icerier hash board, such as T17E, S17, HS3, and KS3M (can be selected and purchased according to the silk screen of the tantalum capacitor on the original hash board). 337 tantalum electrolytic capacitors have the functions of storing electricity, charging, and discharging and are mainly used in filtering, energy storage, and conversion. Mark bypass, coupling, and decoupling as well as the time constant elements and so on.Capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramics, the high capacitance of aluminum electrolytic, and the volumetric efficiency of tantalum into a single surface mount package Unlike liquid electrolyte-based capacitors, KO-CAPs have a very long lifetime and high ripple current ability.

G337 2V or 337 (T520V337M004ATE012) is the same product with the same functional properties, different manufacturers, and a little difference in silk screen printing

Tantalum capacitors have no electrolyte inside, making them ideal for high-temperature operation. Tantalum capacitors are characterized by long life, high-temperature resistance, high accuracy, and excellent performance in filtering high-frequency waves. The withstand voltage and current capability are relatively weak. It is used in large-capacity filtering places. Tantalum capacitors can be seen on the entire back of the hash board and near the CPU socket. They are often used in conjunction with ceramic capacitors and electrolytic capacitors to be used in places where voltage and current are not large.
