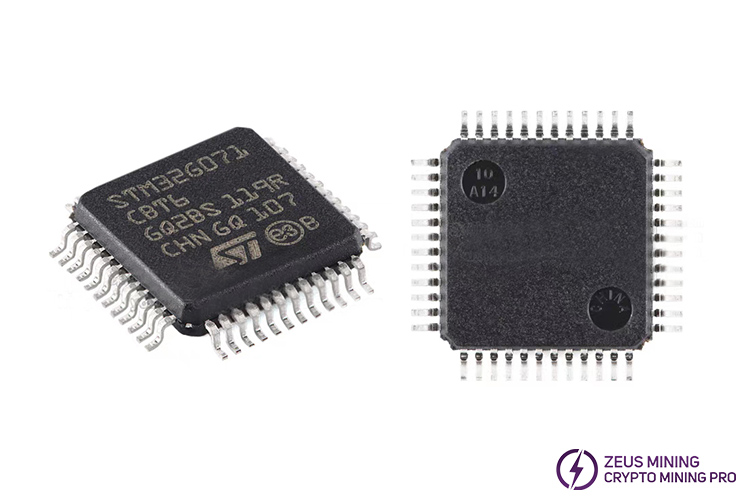

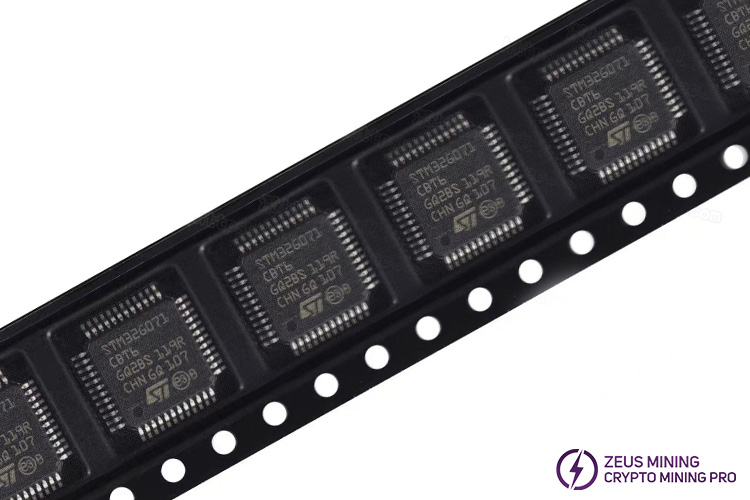

STM32G071CBT6

The STM32G071CBT6 mainstream microcontroller is housed on the Iceriver BP-H-3640 PSU and is based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core running at up to 64 MHz. The device integrates a Memory Protection Unit (MPU), high-speed embedded memory (36 KB SRAM and up to 128 KB Flash program memory with read protection, write protection, proprietary code protection, and security enclave), DMA, an extensive range of System features, enhanced I/O and peripherals.

The device provides standard communication interfaces (2 I2C, 2 SPI/1 I2S, 1 HDMI CEC, and 4 USART), 1 12-bit ADC (2.5 MSps) with up to 19 channels, 1 channel of 12-bit DAC, 2 fast comparators, an internal voltage reference buffer, a low-power RTC, an advanced control PWM timer running at up to twice the CPU frequency, five general-purpose 16-bit timers (including A general-purpose timer running at up to twice the CPU frequency), a 32-bit timer bit, two basic timers, two low-power 16-bit timers, two watchdog timers and a SysTick timer.

The device operates over an ambient temperature range of -40 to 125°C and a supply voltage of 1.7 V to 3.6 V. Optimized dynamic power consumption combined with a comprehensive set of power-saving modes, low-power timers, and low-power UART enables the design of low-power applications.

Features:

• Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz

• -40°C to 85°C/105°C/125°C operating temperature

• Memories

– Up to 128 Kbytes of Flash memory with protection and securable area

– 36 Kbytes of SRAM (32 Kbytes with HW parity check)

• CRC calculation unit

• Reset and power management

– Voltage range: 1.7 V to 3.6 V

– Power-on/Power-down reset (POR/PDR)

– Programmable Brownout reset (BOR)

– Programmable voltage detector (PVD)

– Low-power modes:

Sleep, Stop, Standby, Shutdown

– VBAT supply for RTC and backup registers

• Clock management

– 4 to 48 MHz crystal oscillator

– 32 kHz crystal oscillator with calibration

– Internal 16 MHz RC with PLL option (±1 %)

– Internal 32 kHz RC oscillator (±5 %)

• Up to 60 fast I/Os

– All mappable on external interrupt vectors

– Multiple 5 V-tolerant I/Os

• 7-channel DMA controller with flexible mapping

• 12-bit, 0.4 µs ADC (up to 16 ext. channels)

– Up to 16-bit with hardware oversampling

– Conversion range: 0 to 3.6V

• Two 12-bit DACs, low-power sample-and-hold

• Two fast low power analog comparators with programmable input and output, rail-to-rail

• 14 timers (two 128 MHz capable): 16-bit for advanced motor control, one 32-bit and five 16-bit general-purpose, two basic 16-bit, two low power 16-bit, two watchdogs, SysTick timer

• Calendar RTC with alarm and periodic wakeup from Stop / Standby / Shutdown

• Communication interfaces

– Two I2C-bus interfaces supporting Fast-mode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode

– Four USARTs with master/slave synchronous SPI; two supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection, and wakeup feature

– One low-power UART

– Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bit frame, one multiplexed with an I2S interface

– HDMI CEC interface, wakeup on header

• USB Type-C™ Power Delivery controller

• Development support: serial wire debug (SWD)

• 96-bit unique ID

• All packages ECOPACK 2 compliant
