Avalon multifunction hash board test fixture A320X

Avalon test fixture A320X can visually display the fault location during the test. It is suitable for A10 series, A11 series, A12 series, and A1346 miner fault detection. The tested chip models include A3205, A3204, A3203, A3202, A3201, A3200, A3200C, etc. Using this test fixture can help miners quickly detect hash board failures and reduce cost losses during maintenance.

For test fixtures with a screen, test results can be viewed directly by sliding the fixture screen without connecting to a computer.

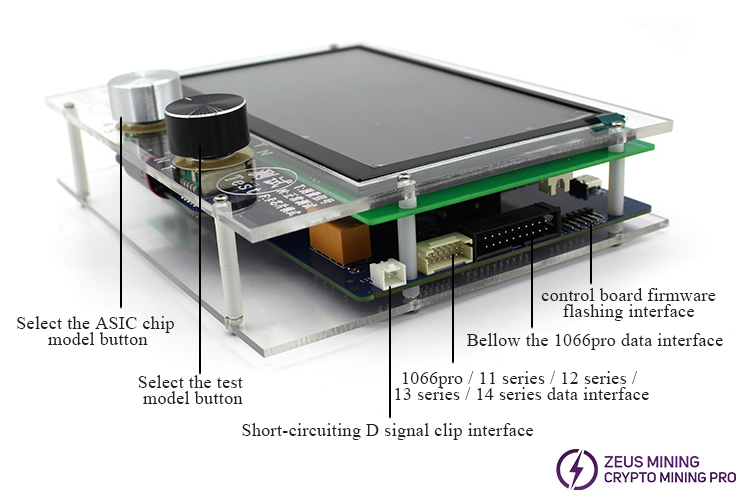

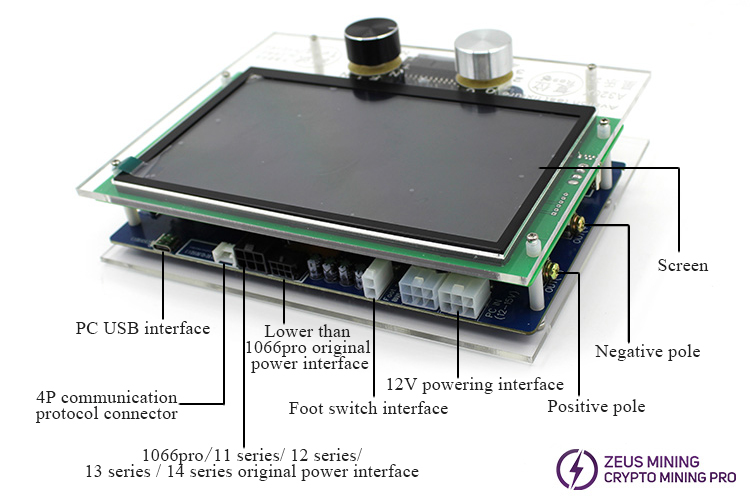

Product interface description:

Function Description:

1) The function of burning the control board: the knob on the fixture does not need to select the gear; when connecting the data cable to the control board, it is necessary to ensure that the contact is good and the cable sequence is not reversed; the computer software for viewing test results must be turned off and then Open the burning software; select the corresponding port in the burning software, which can be found in the computer device manager.

2) T measurement signal: Select this gear when repairing a defective hash board, find the position to be measured on the hash board, put the multimeter pen in place, step on the foot switch, and release the foot switch after seeing the test result of the multimeter; change the position and repeat the above steps.

3) N normal test: Select the corresponding chip model to test whether the hash board is normal. During the test, you need to step on the foot switch for a long time. Disconnecting it in the middle will cause the power-off test to fail. If the hash board is not connected or the hash board MT signal is abnormal, the test program will not run until the buzzer sounds.

4) F short circuit chip mode: For C and CK signals normal, the test result is 0 or less than the number of chips, after reaching this position, the short circuit chip clip is connected to the hash board (red + is connected to the D signal, black - is connected to the hash board chip -), press and hold to start the test, for example, short circuit between No. 10 and No. 11. If it reports 0 or 9, it means that it is abnormal before the 10th. If it reports 10, it means it is normal before the 10th.

Product lists:

① test fixture host

② 14pin data cable

③ Type C to USB cable

④ Avalon test fixture data cable

⑤ Ribbon cable for control board firmware programming

⑥ Test fixture foot switch

⑦ Red and black alligator clip power cable

⑧ D signal short circuit clip

Test renderings:

①  Test fixture cable: connected to the test fixture and hash board;

② 12V powering adapter: use APW3+ power supply to power the fixture;

③ Test fixture foot switch: used to control the circuit on/off and output current;

④ and ⑤ red and black alligator clip power cable: connect the positive and negative electrodes of the test fixture and the hash board respectively;

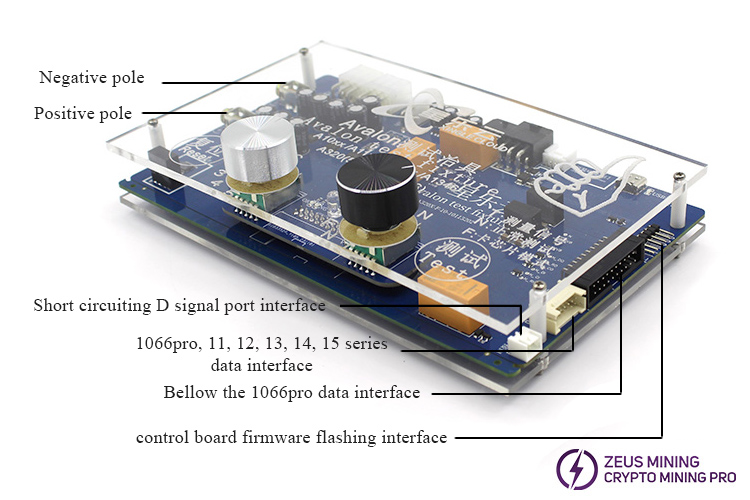

Screenless version test fixture product picture:

Product interface description:

Product lists:

① test fixture host

② 14pin data cable

③ Avalon test fixture data cable

④ Type C to USB cable

⑤ Red and black alligator clip power cable

⑥ Test fixture foot switch

⑦ Ribbon cable for control board firmware programming

⑧ D signal short circuit clip

Test renderings:

① and ② red and black alligator clip power cable: connect the positive and negative electrodes of the test fixture and the hash board respectively;

③ Test fixture cable: connected to the test fixture and hash board;

④ 12V powering adapter: use APW3+ power supply to power the fixture;

⑤ Type C to USB cable: connected to the tester and the computer USB port to view the fault log.

⑥ Test fixture foot switch: used foot switch to control circuit on/off and output current.

Avalon A320X multifunction hash board test fixture function and usage introduction:

In addition, we also need to prepare a hash board cooling base 1800RPM and an APW3++ power supply.

The hash board cooling base 1800RPM is used to help the hash board dissipate heat;

The APW3++ power supply is used to power the test fixture;

How to use the test fixture to flash control board firmware?

The difference between these two fixtures is that they have and do not have screens, but their functions and ports are the same.

For detailed usage steps, please refer to the above video or article: What is the usage method of the Avalon multi-function hash board test fixture A320X?
