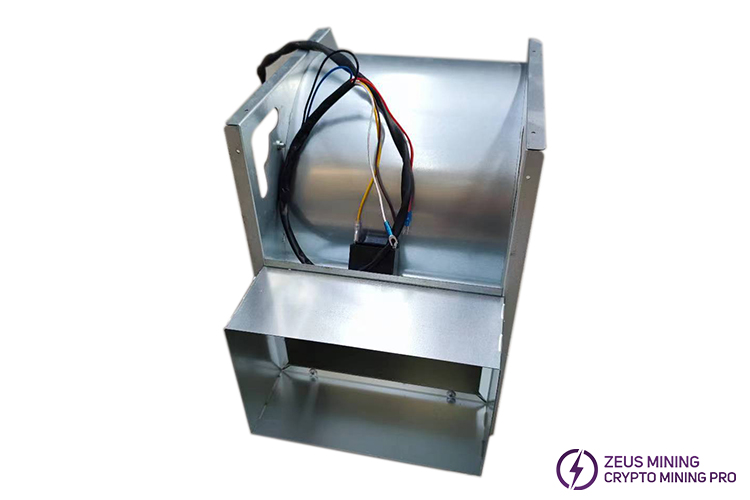

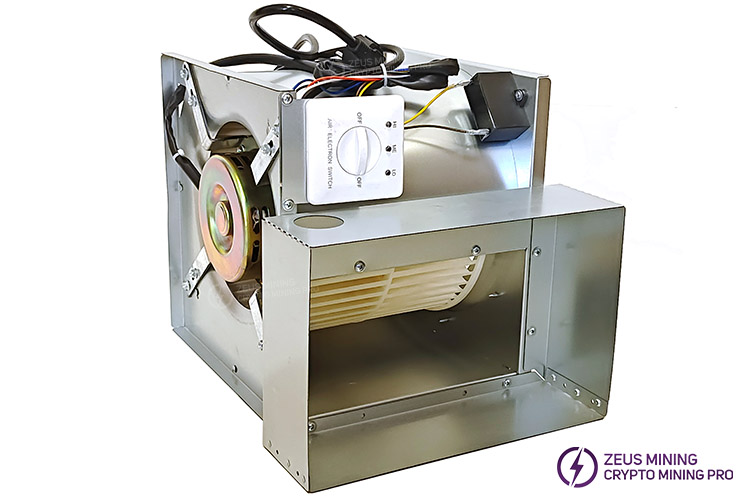

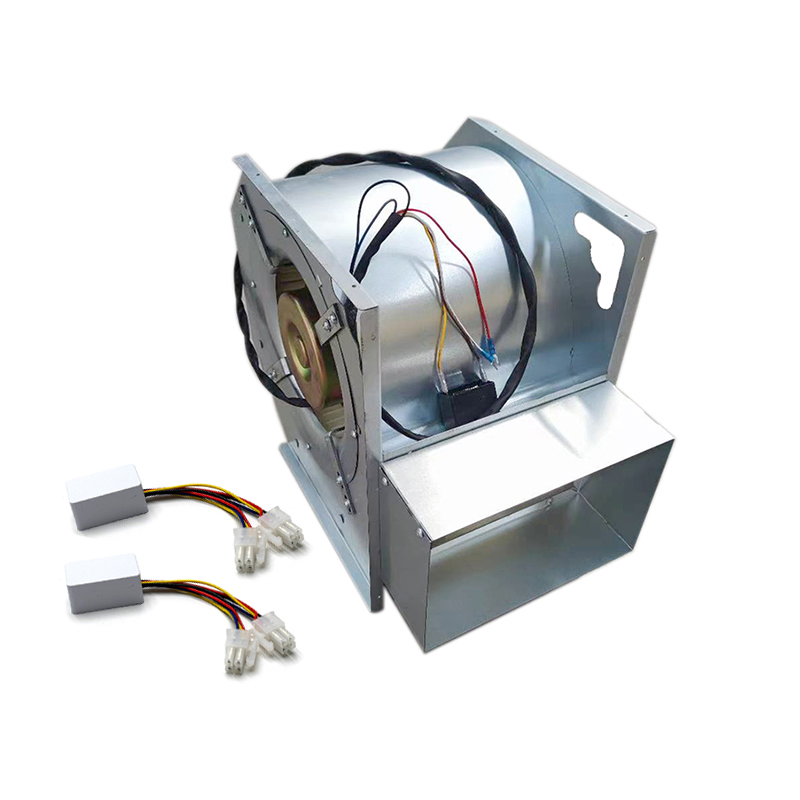

The Antminer silencer adopts pure copper wire, which has the advantages of high wind pressure, low noise, small size, large air volume, quietness and durability, etc. There are three speeds of high, medium and low, generally high speed. Please see the motor when connecting. Please do not connect it wrongly, if it is connected incorrectly, the motor will be burnt out. With the adjustable suction interface, it is suitable for Antminer L9, AL1, AL1pro, S21+, T21, S21, S21pro, S21XP, S19jXP, KS5, KS5pro, D7, L7, E11, DR7, KA3, KS3, HS3, E9, E9PRO, S19, S19j, S19Pro, S19jPro, S19i, T19, S19aPro, S19a, S19XP, S19L, S19Pro-A, S19jPro-A, S17Pro, T17, S17, S17e, S17+, T17e, T17+, S9, S9i, Z15, Z15pro, L3++, etc.

If you want to achieve the silencer's best noise reduction effect, it is recommended that you use it with the miner's corresponding miner PSU fan simulator. Please click here to purchase.

The ASIC silencer can be divided into blower version, standard version, temperature control version, and mobile remote control version according to different functions.

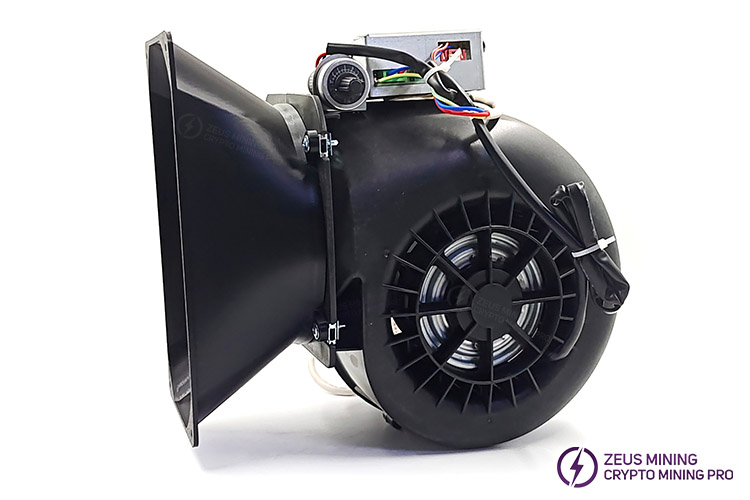

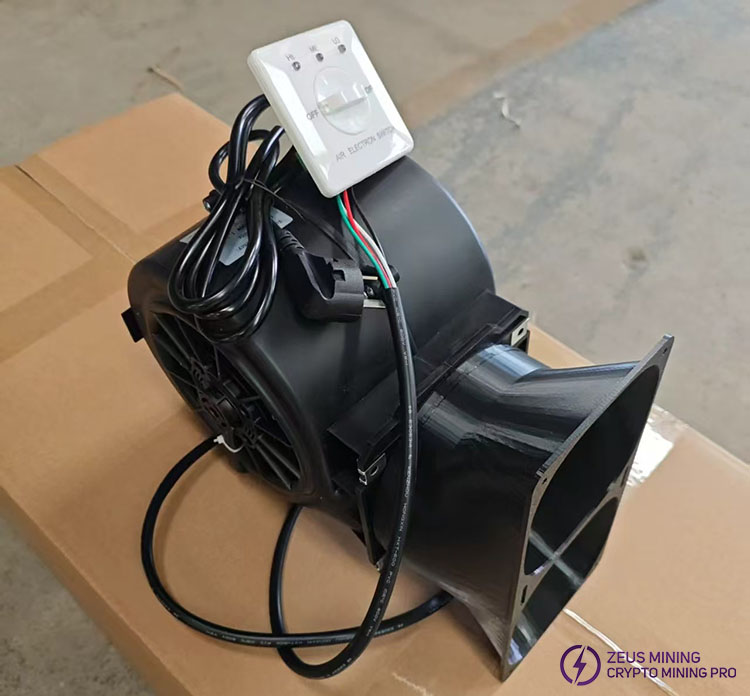

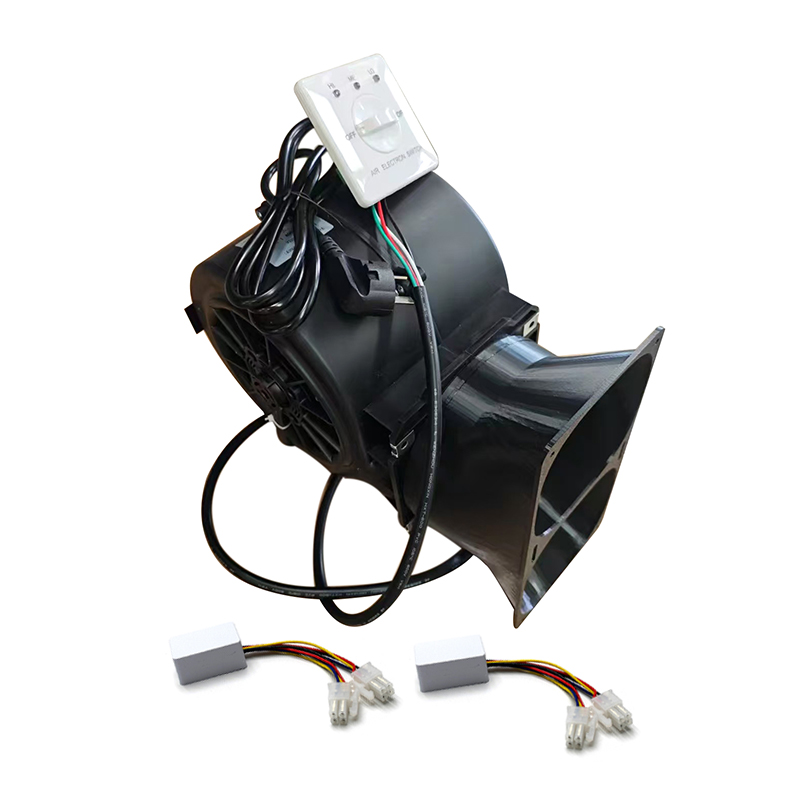

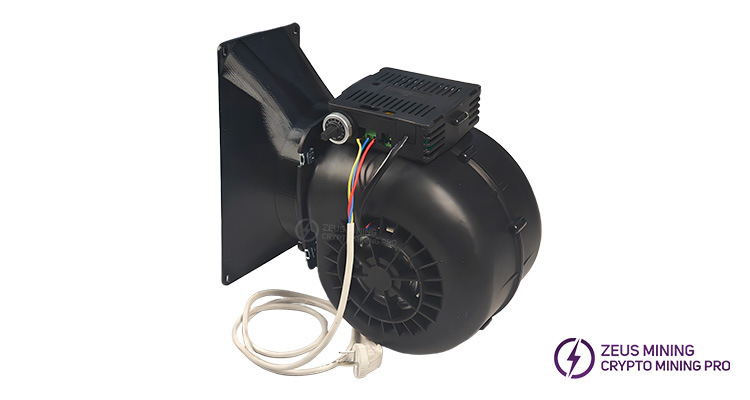

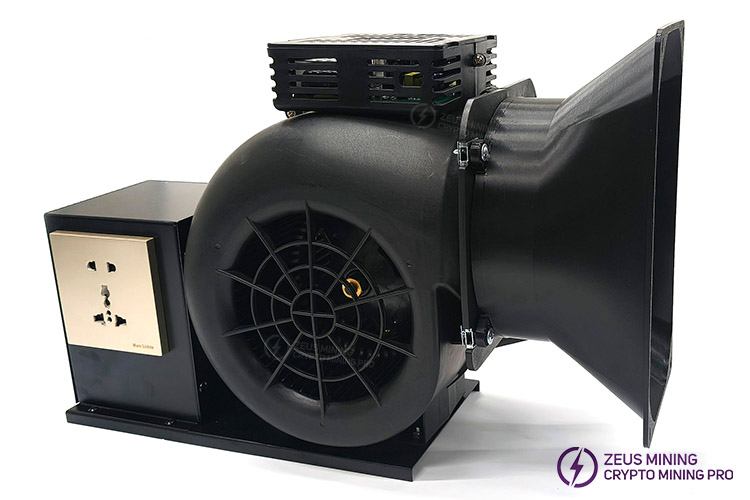

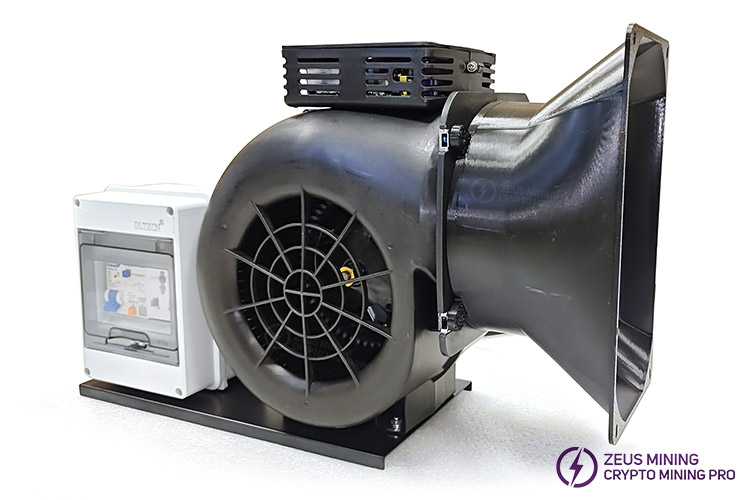

Blower version silencer:

The shell of the blower version silencer is made of an engineering plastic shell, and a high-power brushless motor and vortex fan are used inside. It is equipped with a 3-speed adjustable speed controller, allowing you to freely control the fan speed, which effectively reduces the noise of ASIC miners.

For more details, please click Mini silencer blower for ASIC miner.

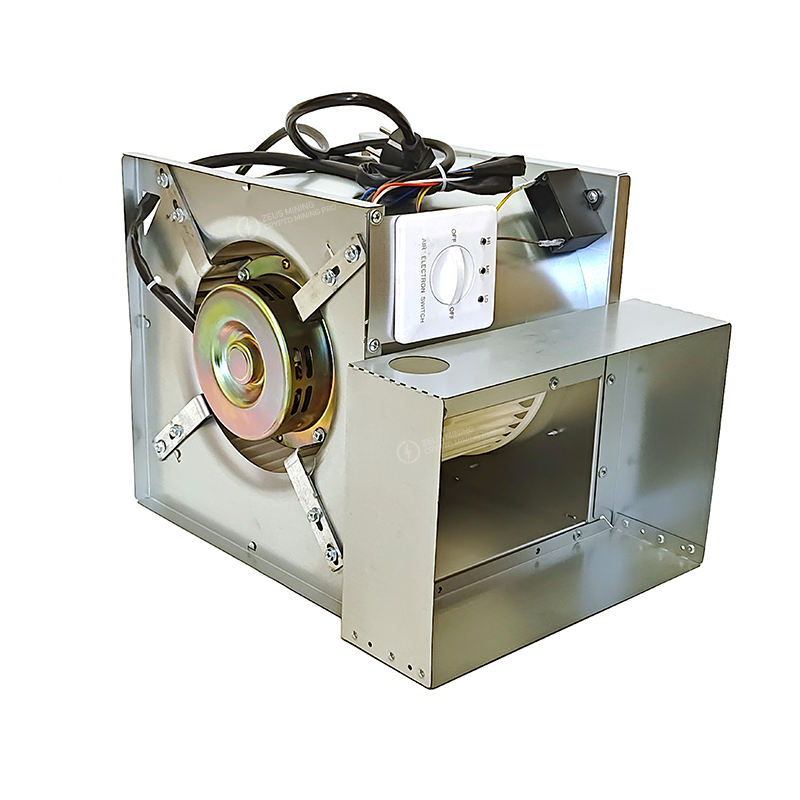

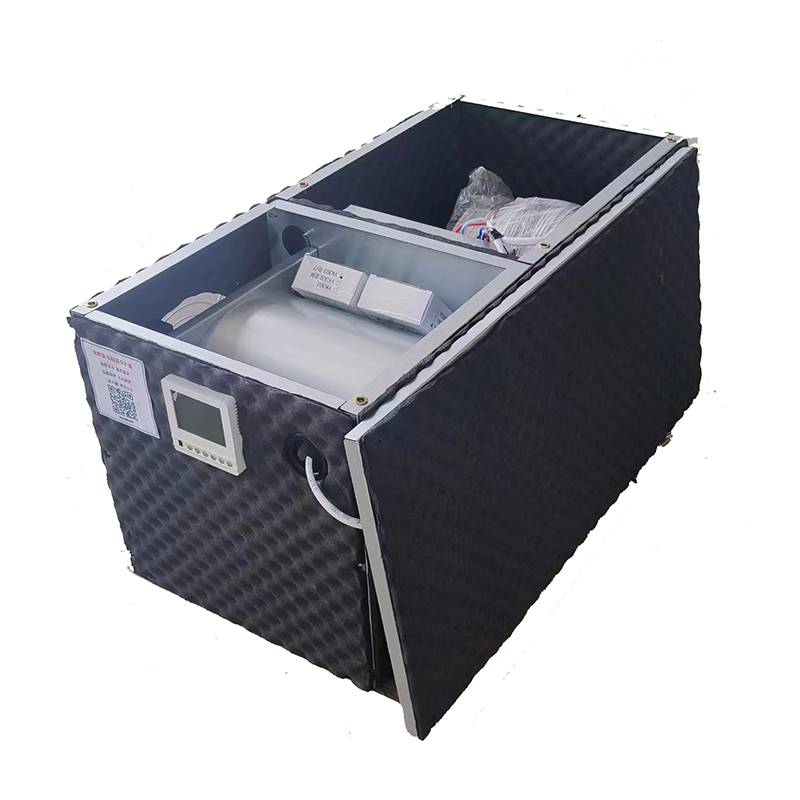

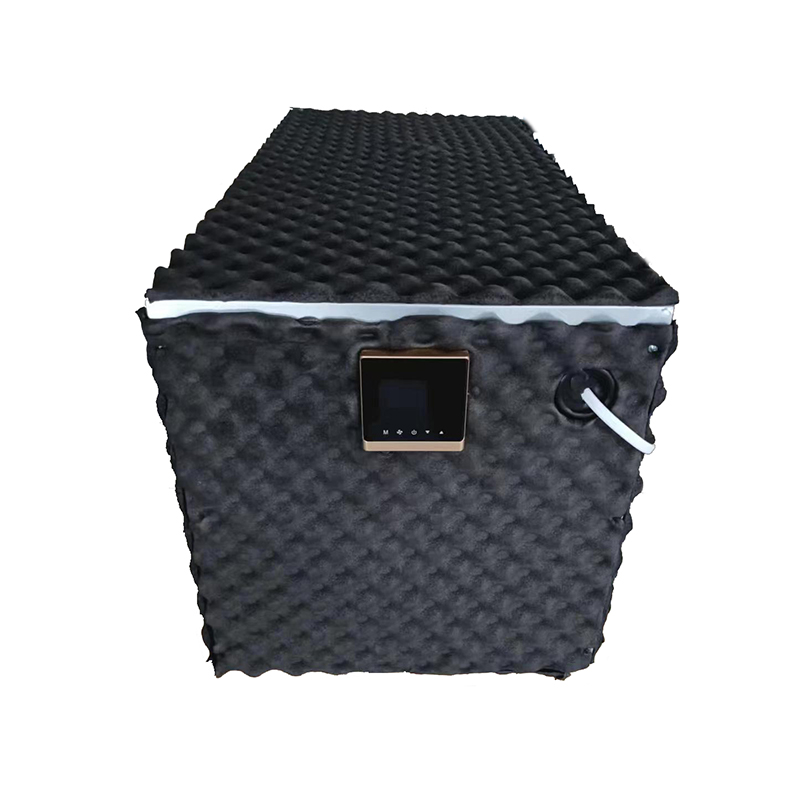

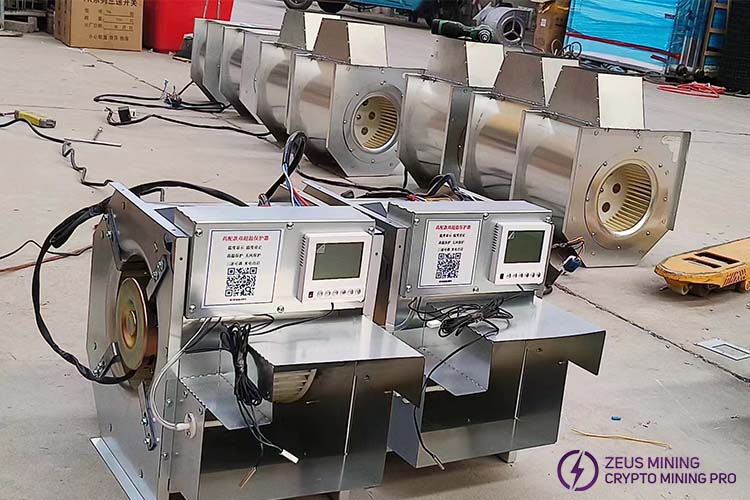

Standard / temp control / mobile remote control version silencer:

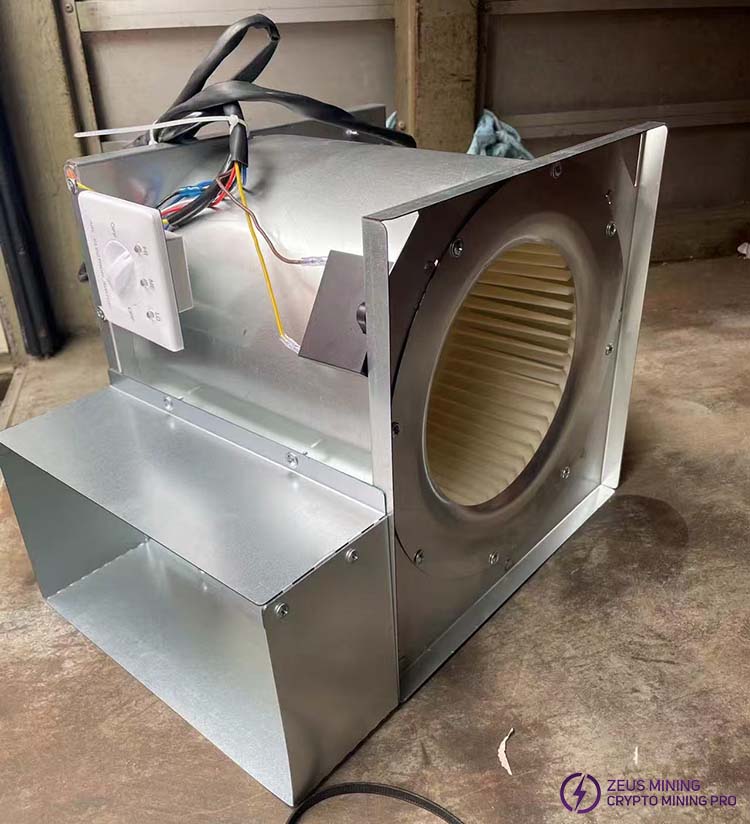

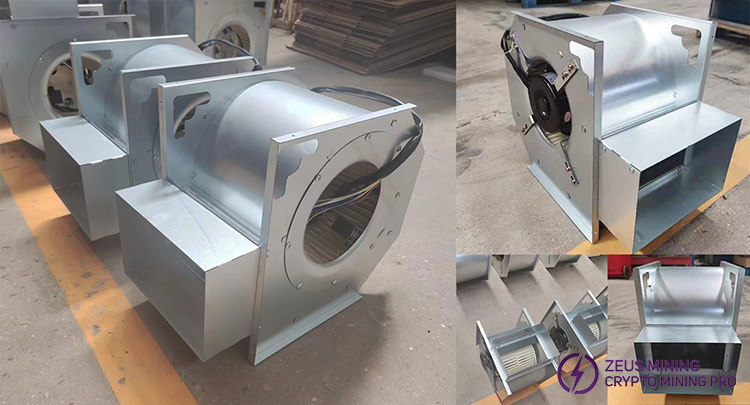

The shell of the standard version / temperature control version / mobile remote control version silencer is made of aluminum, with a high-power brushless AC motor inside, and a 3-speed adjustable speed controller to freely control the fan speed to meet the needs of different miners.

Parameter:

Air outlet size: 300x200x90mm

Packing size: 500x400x320mm

Power: 200W-500W

Speed: 1150r/min

Input voltage: 220V

Advantages:

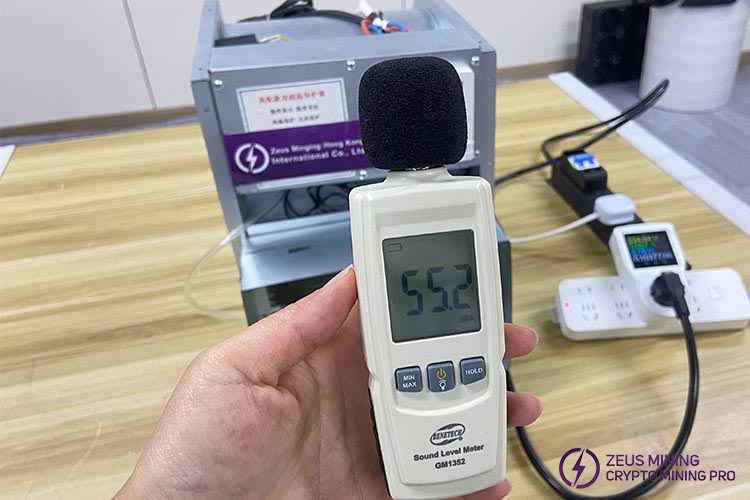

1. After the silencer is modified, the overall operating noise of the miner will be reduced to about 55 decibels;

2. The temperature control version and mobile phone remote control version also have windless power-off protection functions and high-temperature power-off protection functions;

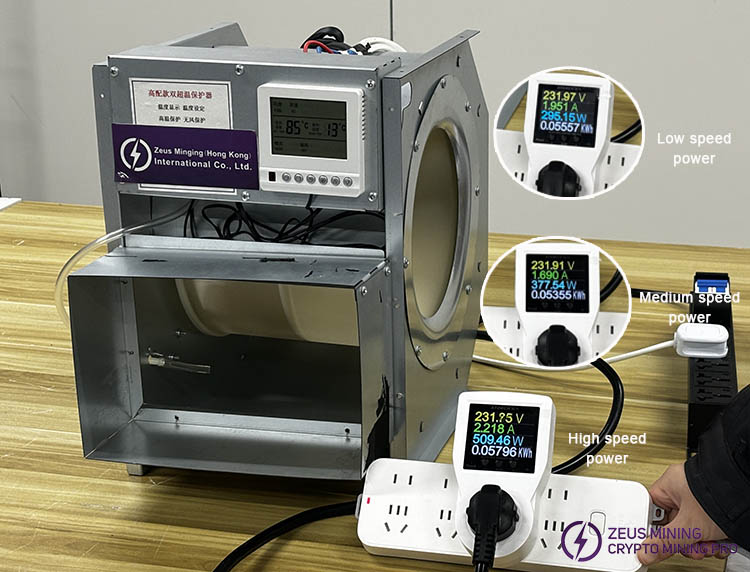

3. Low operating power consumption, between 200W-500W.

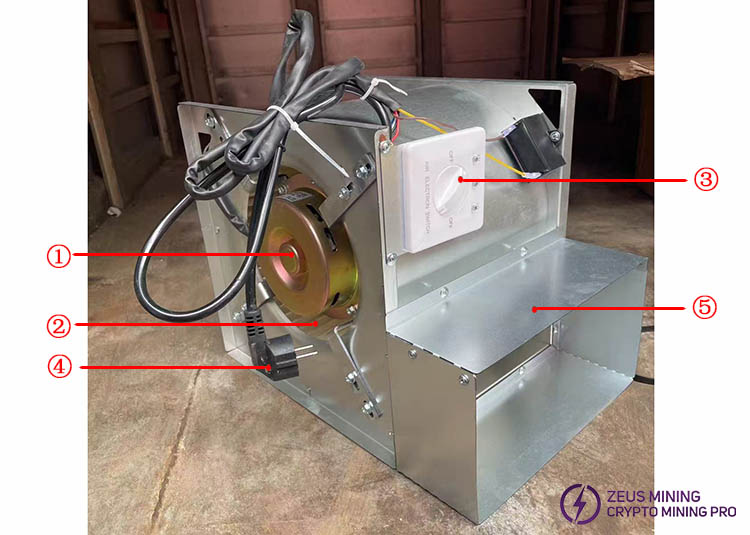

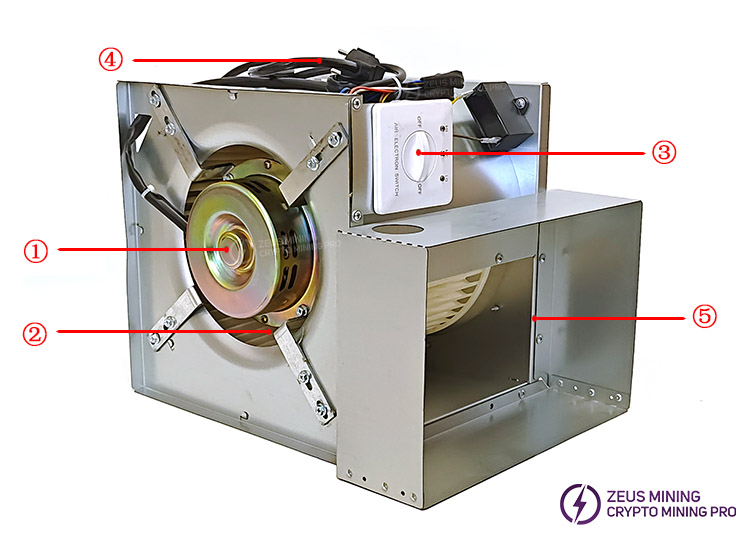

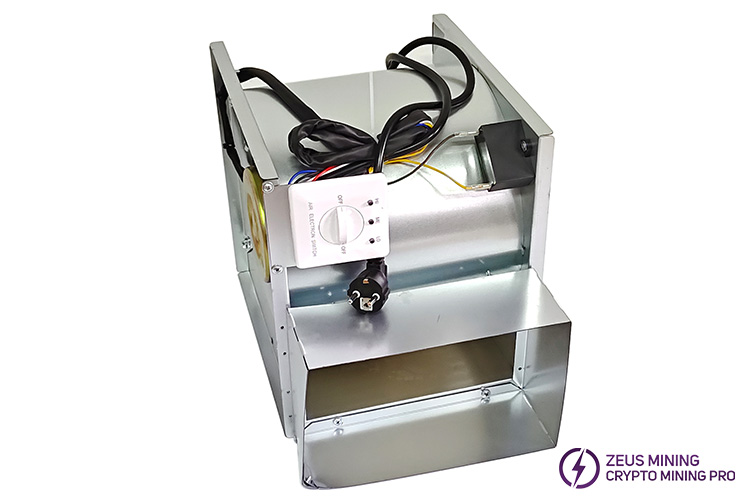

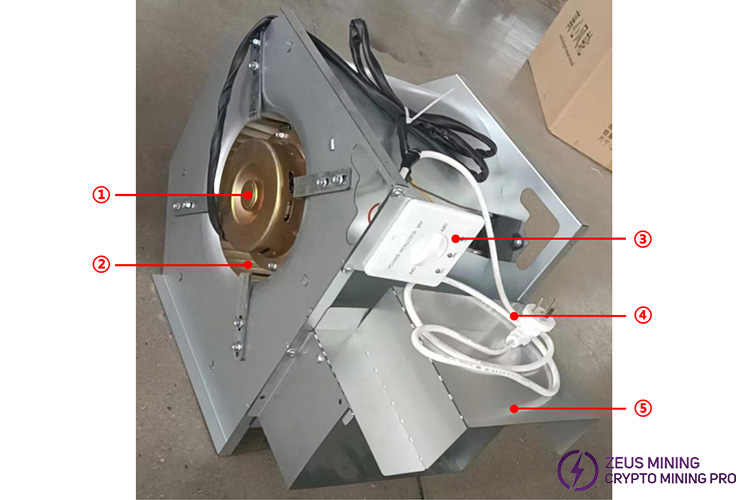

Standard version silencer:

① Pure copper brushless motor

② Turbine blades

③ Manual speed control switch

④ Power cord

⑤ Special air outlet

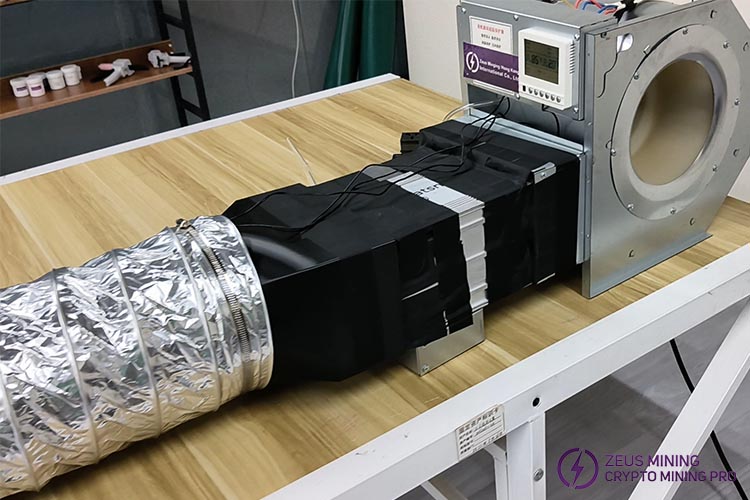

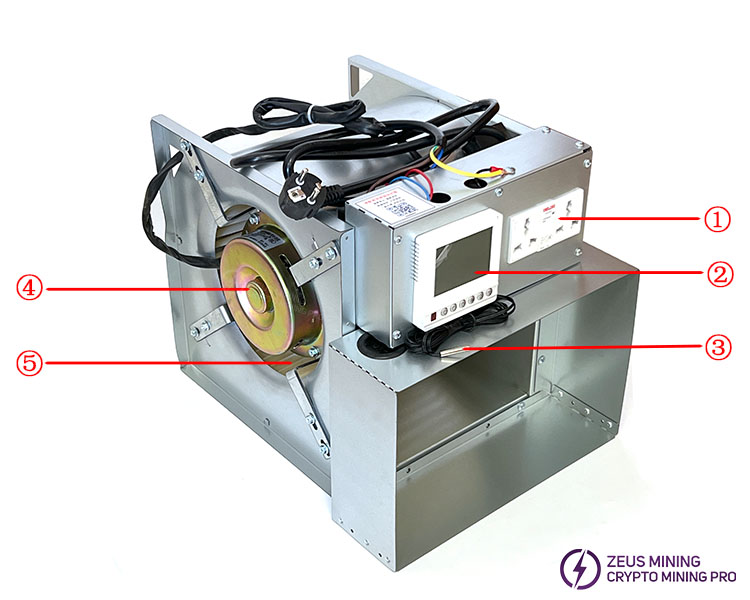

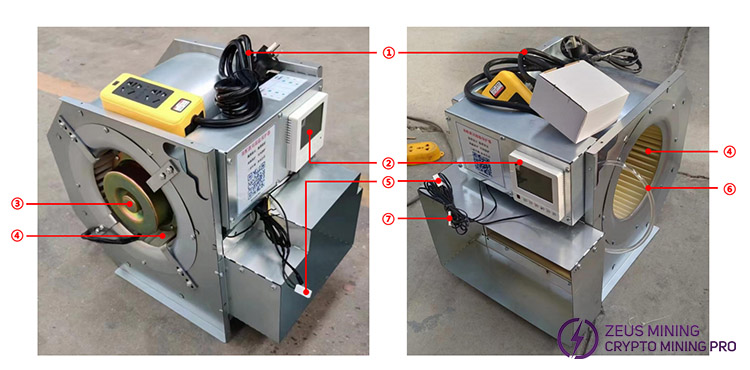

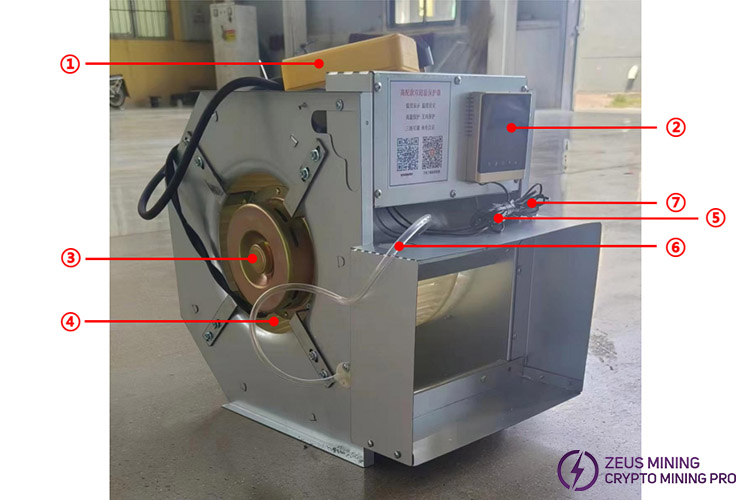

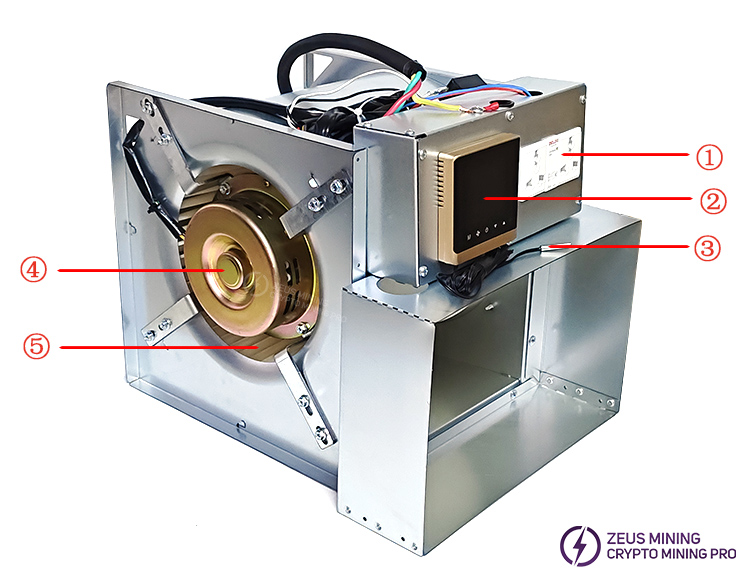

Temperature control version silencer:

① Pure copper high-power socket

② LCD thermostat

③ Pure copper brushless motor

④ Turbine fan blades

⑤ High temperature protection

⑥ Wind pressure protection/sensor

⑦ Temperature sensor

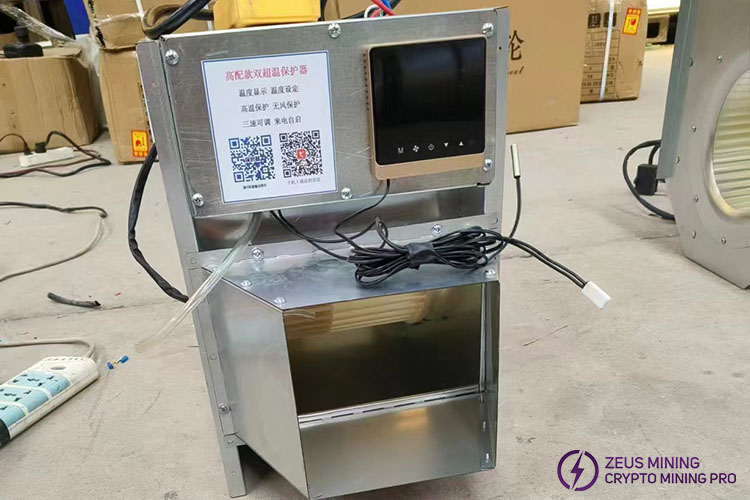

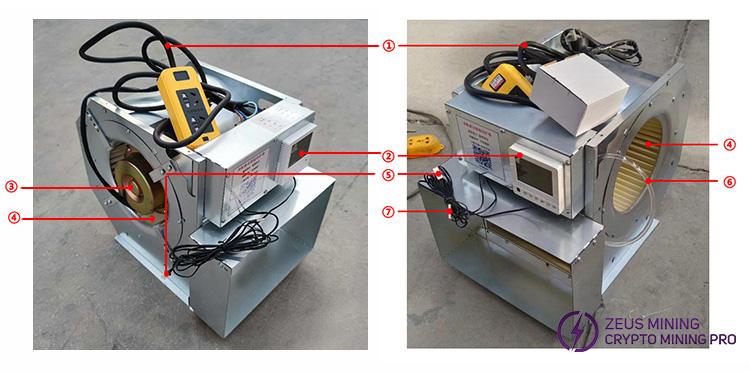

Mobile remote control version silencer:

① Pure copper high-power socket

② Mobile phone remote control LCD thermostat

③ Pure copper brushless motor

④ Turbine fan blade

⑤ High temperature protection

⑥ Wind pressure protection/sensor

⑦ Temperature sensor

The temperature-control version silencer and Mobile remote-control version silencer integrate functions such as temperature detection, compensation, user temperature setting, and fan operation mode setting. They are used to control the fan on/off and select wind speeds.

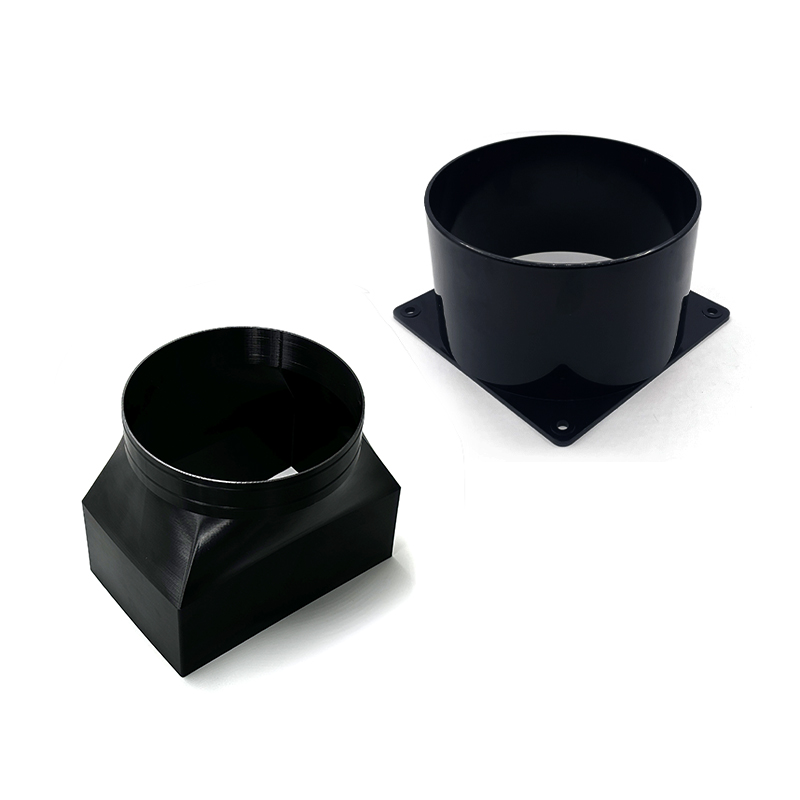

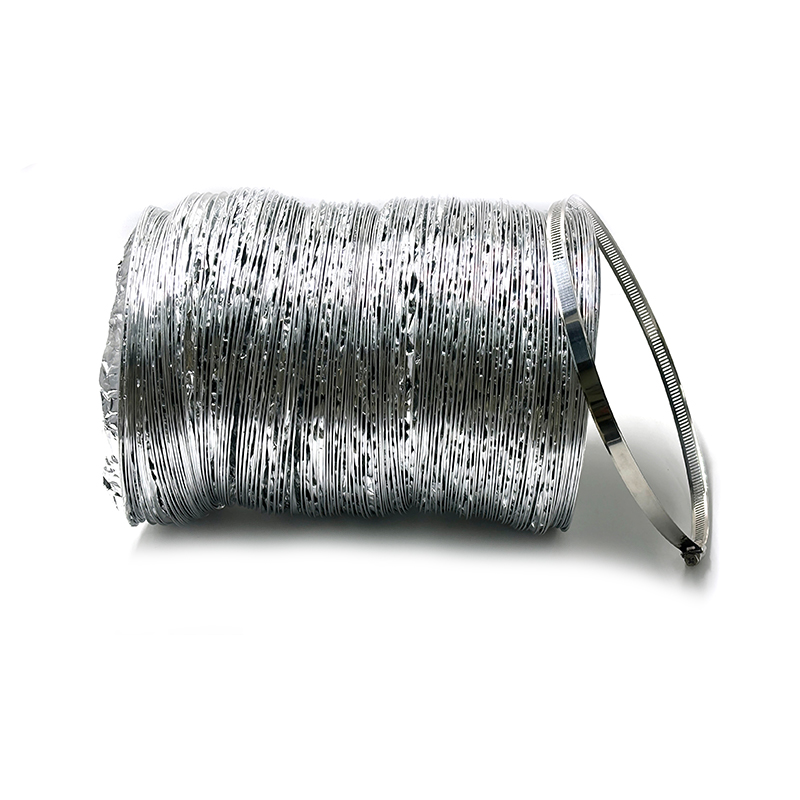

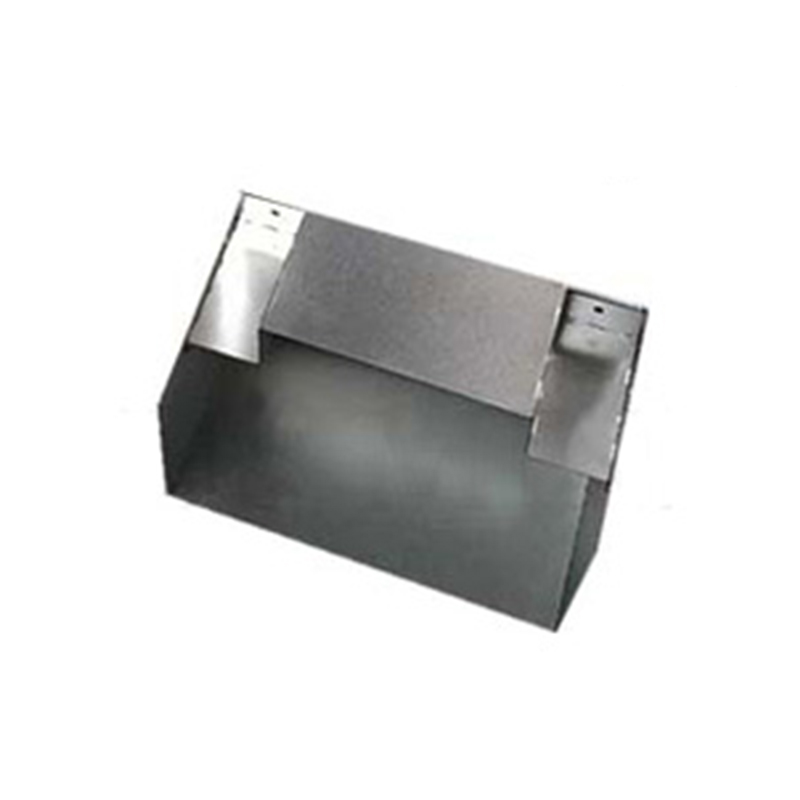

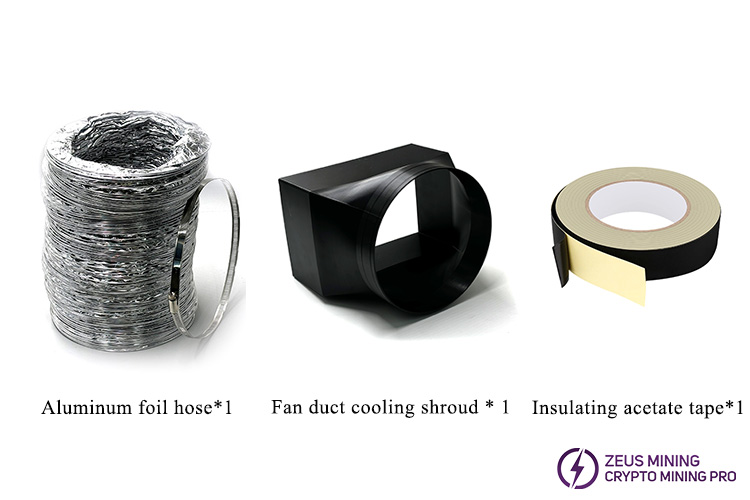

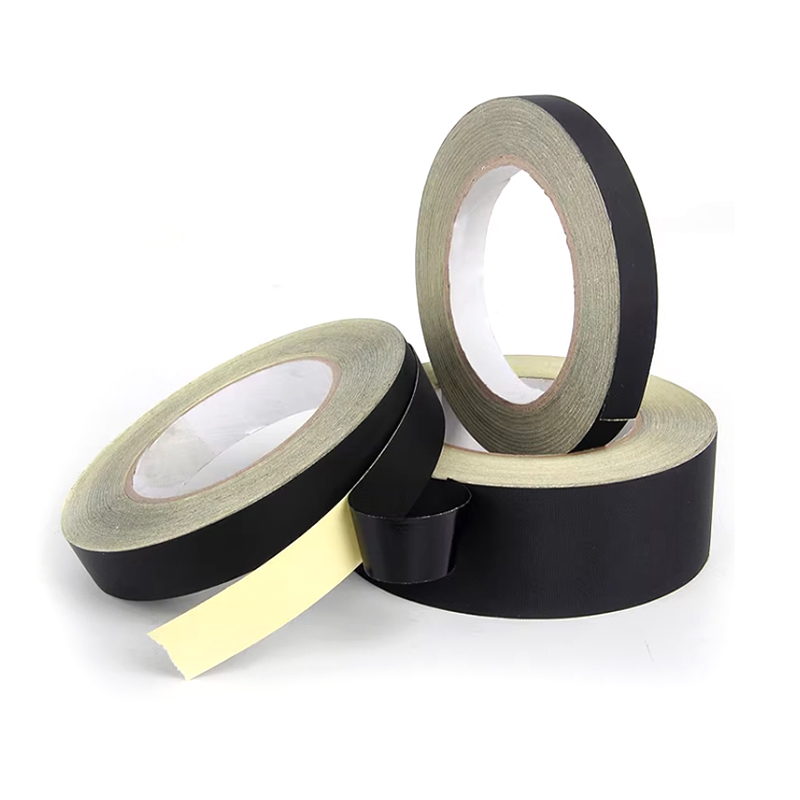

Note: If you purchase the silencer kit, you will not only receive the corresponding version of the silencer but also receive the following products:
