MP3426

MP3426 35V boost converter with programmable switching frequency and UVLO

The MP3426 is a current-mode step-up converter with a 6A, 90mΩ internal switch that provides a highly efficient regulator with a fast response. The MP3426 features a programmable frequency of up to 2MHz that allows for easy filtering and reduces noise. An external compensation pin gives the user flexibility in setting loop dynamics and uses small, low-ESR, ceramic output capacitors. Soft-start results in a small inrush current and can be programmed with an external capacitor. The operates from an input voltage as low as 3.2V and can generate up to a 35V output.

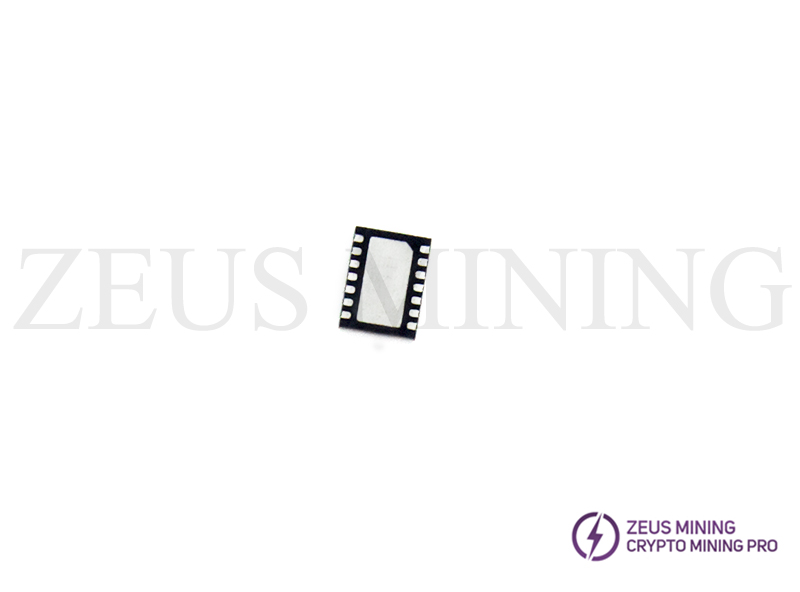

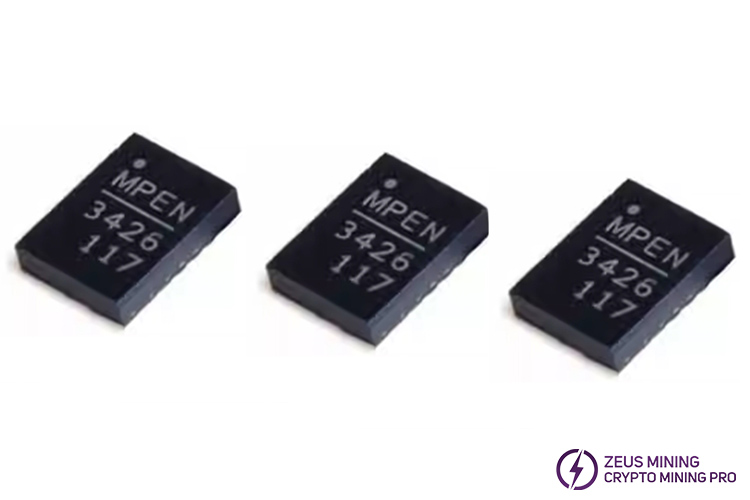

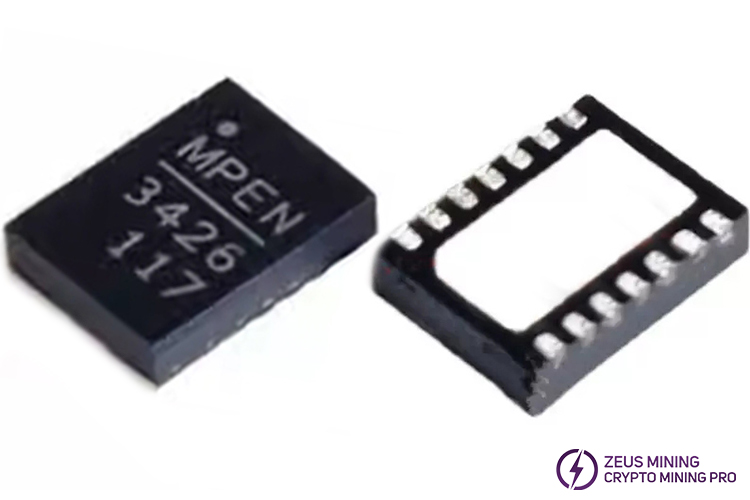

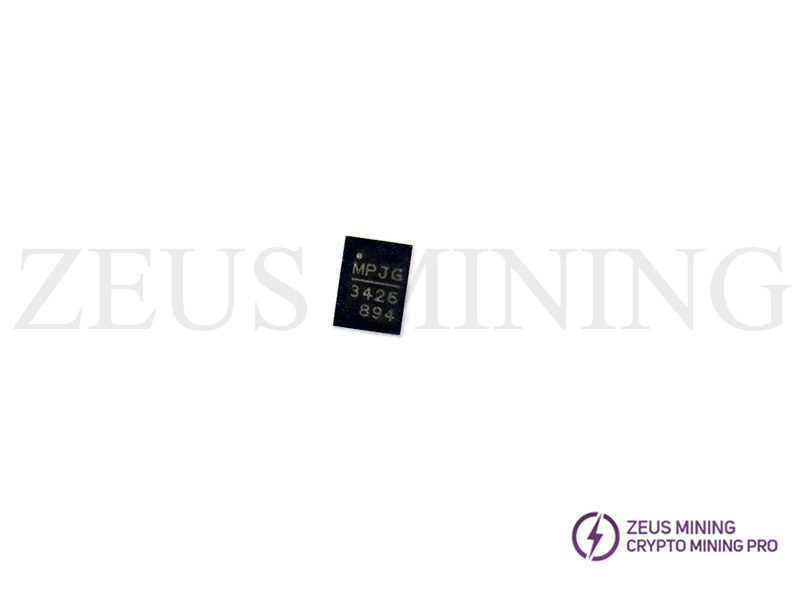

The MP3426’s features include under-voltage lockout, current limiting, and thermal overload protection. The MP3426 is available in a low-profile 14-pin 3mm×4mm QFN package with an exposed pad.

Features:

45V power MOSFET

Uses very small capacitors and inductors

Wide input range: 3.2V to 22V

Output voltage as High as 35V

Programmable fsw: 300kHz to 2MHz

Programmable UVLO, soft-start, UVLO hysteresis

Micropower shutdown <1μA

Thermal shutdown 160°C

Application:

Innosilicon T2T Hashboard Power Chip -U3

Telecommunications—Power supplies

Audio-microphone and tuner bias

Automotive
