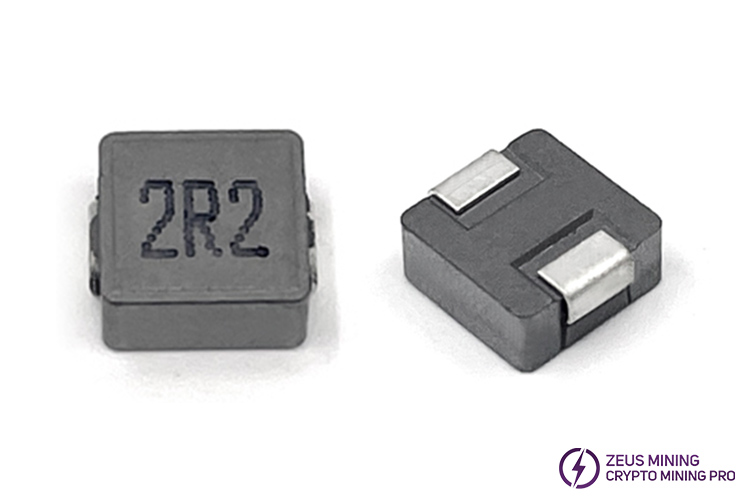

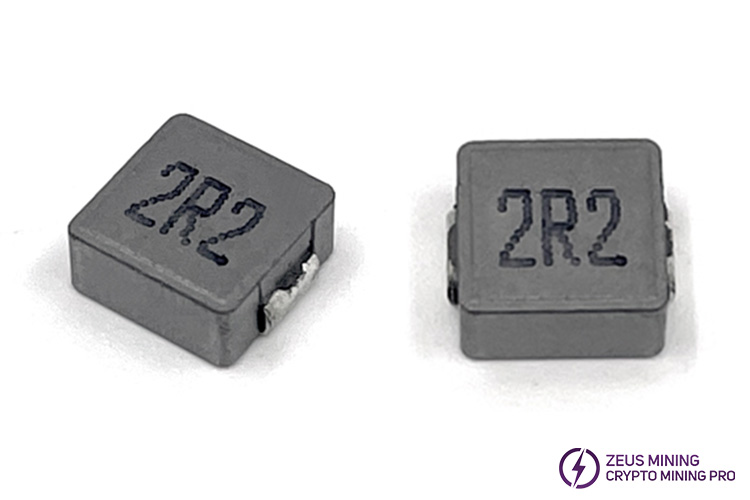

Telegram : @zeusmining_presales2R2 Molding Type Power SMD Inductor 2R2 SMD with low DC resistance, a coil embedded inductor with magnetic metal alloy powder. Achieve low loss, ultra-low hum with superior low DC resistance characteristics, frequency applications up to 3MHz, suitable for high current applications and reflow soldering.
2R2 inductor value:
Inductance：2.2μH ± 20%
DCR Typ: 16.0mΩ
DCR Max: 18.5mΩ
Saturation current: 10.0A
Temperature rise current: 8.0A
Withstanding Voltage: 100V(DC,1min)
Operating temperature: -55~125℃
Storage temperature range: -40~85℃
Applications:
DC/DC converters in notebooks, netbooks, desktops and servers;
Low profile, high current power supplies.
