MAX14930FASE+
MAX14930FASE+
MAX14930FASE+MAX14930FASE+
Ratings:
( 527 Reviews )
MAX14930FASE+
Unit Price: $ 2.8
MOQ: 10    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

MAX14930FASE+ SOP SMD digital isolator, data rate 150Mb/s, output power 1.71-5.5v isolation chip, default low level, suitable for Avalon 10 series hash board, Avalon 821 hash board can also be used, pass the ASIC chip signal of hash board.

max14930fase

Avalon isolation chip

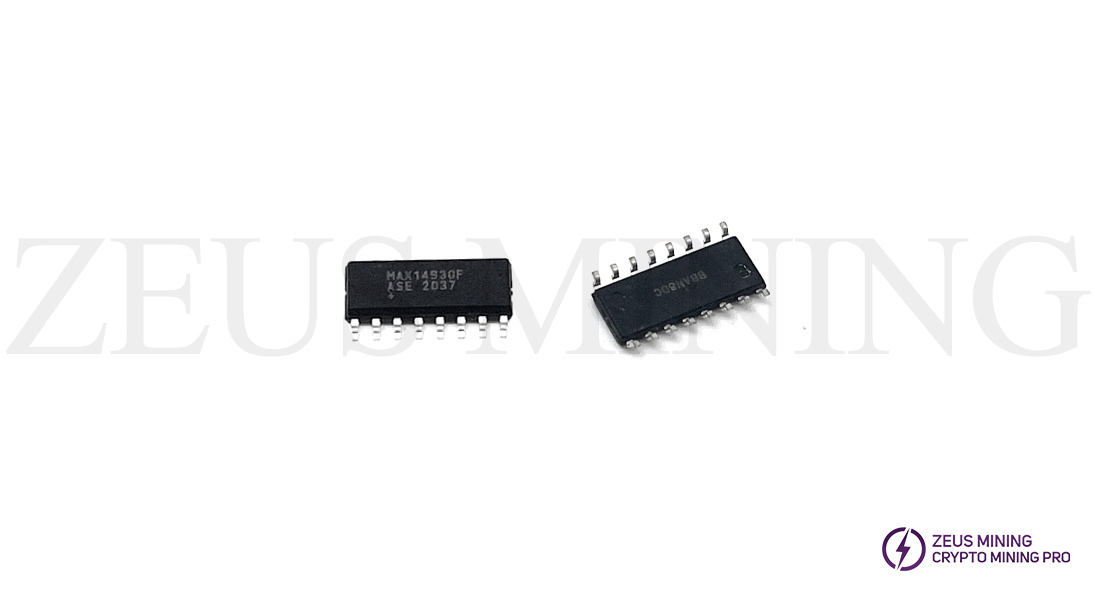

MAX14930F package

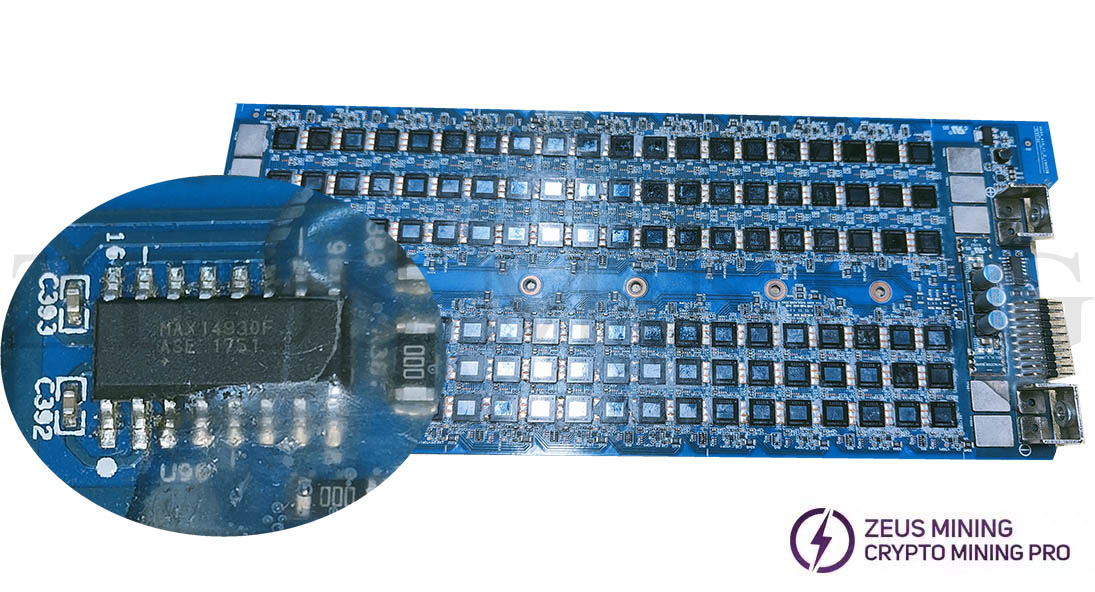

MAX14930FASE+ on 1047 Hashboard

1047 isolation chip

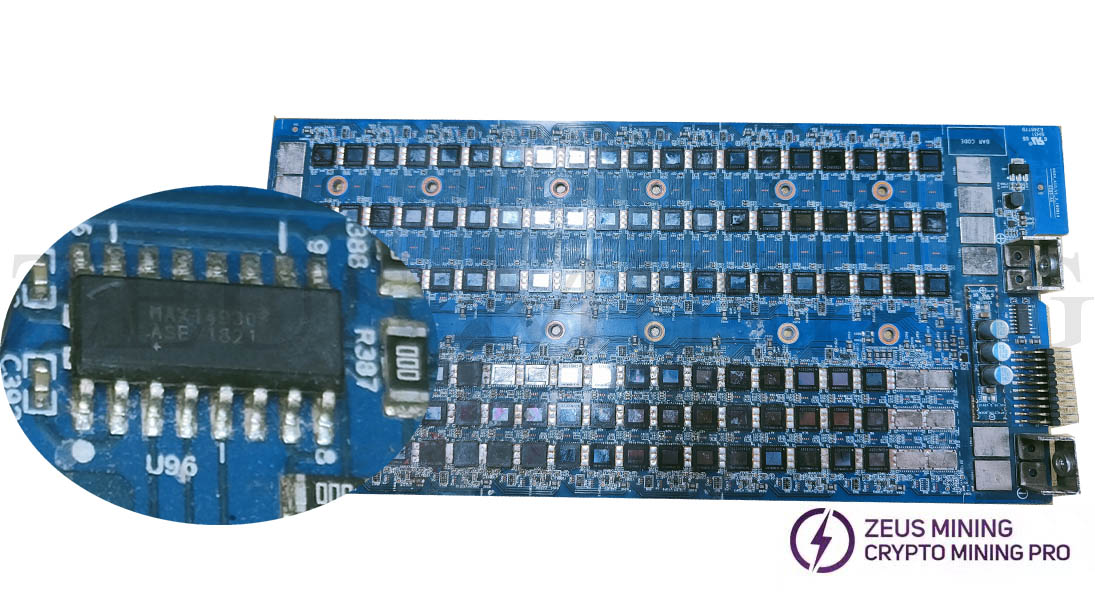

MAX14930FASE+ on 1066 Hashboard

1041 isolation chip

Parameters:

Manufacturer: Maxim Integrated

Product Category: Digital Isolators

Series: MAX14930

Mounting Style: SMD/SMT

Package/Case: SOIC-Narrow-16

Number of Channels:4 Channel

Polarity:Unidirectional

Data Rate: 150Mb/s

Isolation Voltage:2750Vrms

Isolation Type: Capacitive Coupling

Supply Voltage - Max:5.5V

Supply Voltage - Min: 1.71V

Operating Supply Current: 5mA, 27.2mA

Propagation Delay Time: 5.1ns

Minimum Operating Temperature: -40℃

Maximum Operating Temperature: +125℃

Packaging: Tube

Brand: Maxim Integrated

Forward Channels: 4 Channel

Input Type: CMOS, TTL

Maximum Fall Time: 2ns

Maximum Rise Time: 2ns

Pd - Power Dissipation: 1.067W

Product Type: Digital Isolators

Pulse Width: 6.67ns

Pulse Width Distortion: 0.2ns

Reverse Channels: 0 Channel

Shutdown: No Shutdown

Subcategory: Interface ICS

Type: General Purpose

Part # Aliases: MAX14930F

Unit Weight: 547.500 mg
