| Unit Price: | $ 0.4 |
WhatsApp : +8618623251355

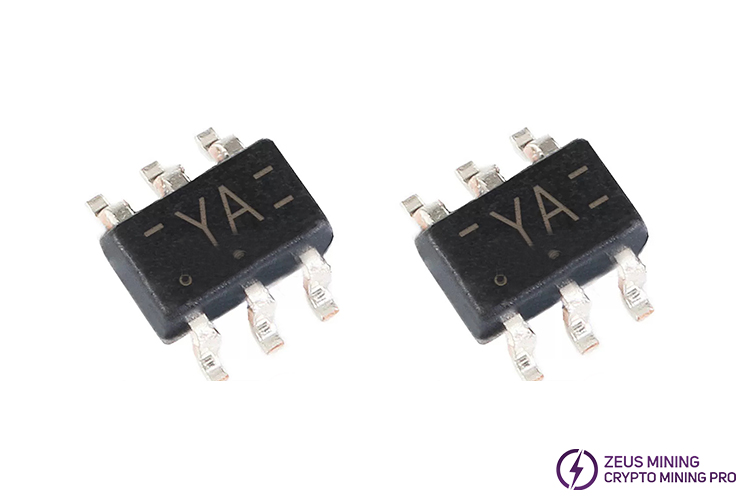

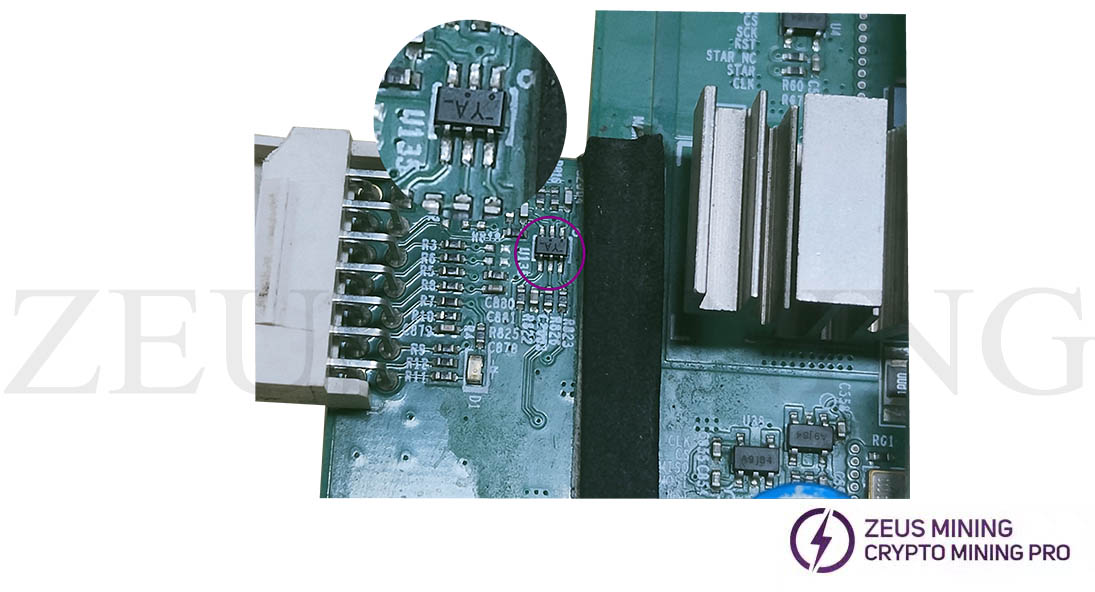

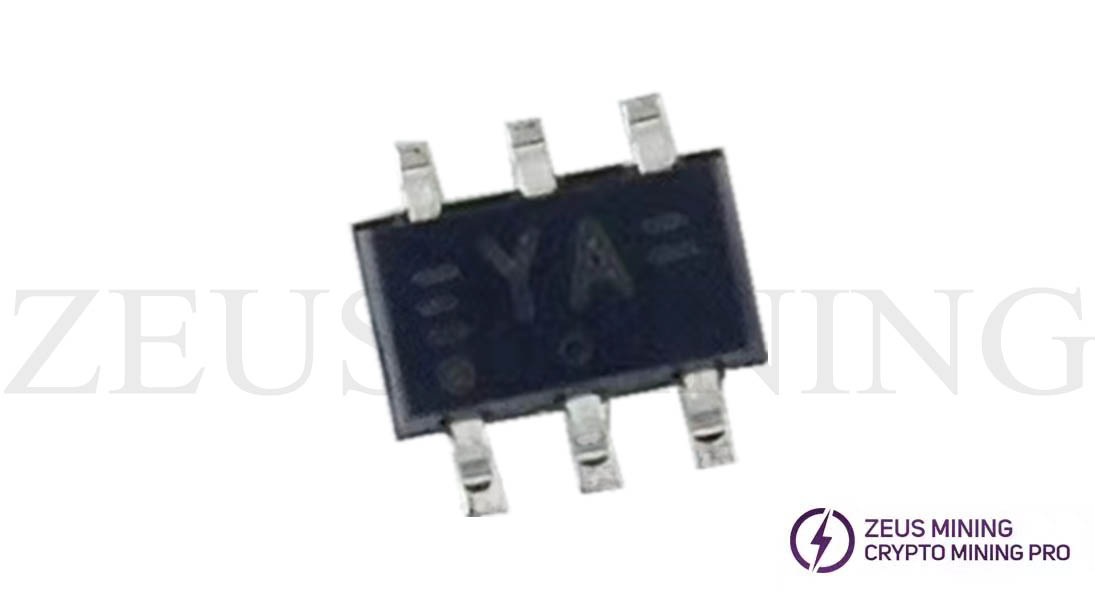

Telegram : @zeusmining_presalesThe 74LVC2G34 signal voltage conversion chip of the Innosilicon T2 T2TH+ hash board provides two buffers. Inputs can be driven by 3.3 V or 5 V devices. These features allow these devices to be used in mixed 3.3 V and 5 V environments. The device is fully suitable for partial-power-down applications using IOFF. The IOFF circuit disables the output, preventing damaging backflow currents from passing through.
Parameter:
Pin Count: 6
Maximum High-Level Output Current: -32mA
Maximum Low-Level Output Current: 32mA
Maximum Propagation Delay Time: Maximum CL 10.8ns
Dimensions: 2.2x1.35x1mm
Maximum Operating Supply Voltage: 5.5V
Height: 1mm
Width: 1.35mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Length: 2.2mm
Minimum Operating Supply Voltage: 1.65V
Wide supply voltage range from: 1.65V to 5.5V
5V tolerant input for interfacing with 5V logic
