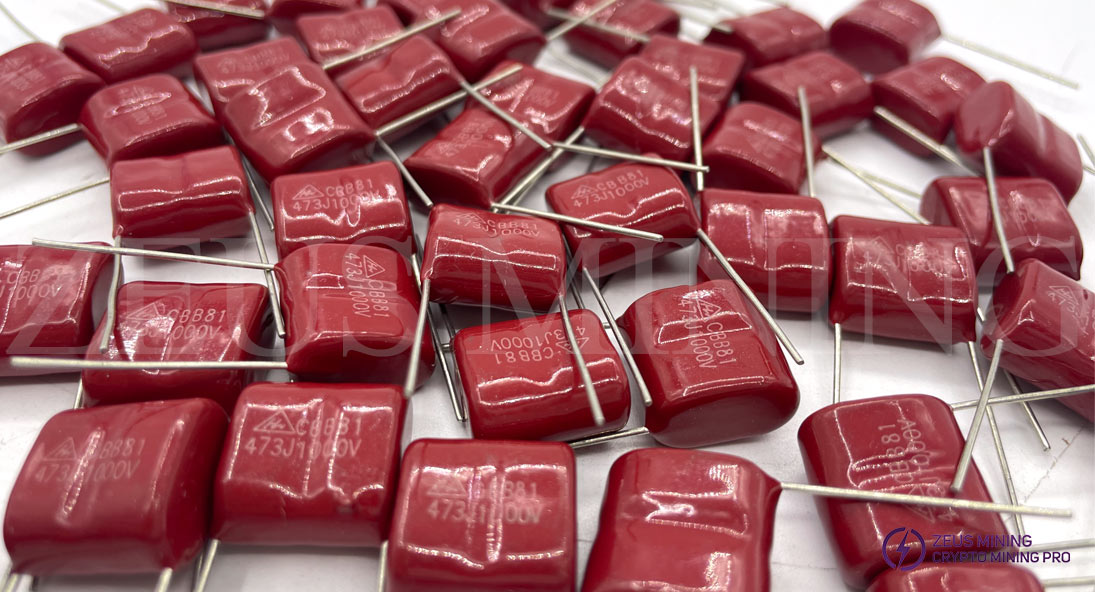

Telegram : @zeusmining_presalesCBB81 473J 1000V
There are many types of capacitors, but most of them are not too high voltage, and CBB81 capacitor is an exception, it can not only withstand high voltage, but also withstand high frequency and high current. It is used very frequently in power supply and high frequency circuits. CBB81 The capacitor uses metallized polypropylene film as the medium, the aluminum foil is wound without inductance, encapsulated by epoxy resin, and the tinned copper-clad steel wire (CP wire) is radially led out. The biggest difference from ordinary polypropylene capacitors is that polypropylene and aluminum foil are wound in series, which is why it can withstand high voltage.
CBB81 capacitors have the advantages of small high frequency loss, strong overcurrent capability, high insulation resistance, long life, stable temperature characteristics, and the loss tangent decreases with the increase of operating frequency.
CBB81: capacitor specifications:
Climate conditions: -40~+105℃/56D
Rated voltage: 630VDC, 1000VDC, 1250VDC, 1600VDC, 2000VDC, 3000VDC.
Capacity error: J ±5%; K ±10%;
Capacity range: 0.001~0.47UF
Loss angle: ≤0.001 10KHZ
