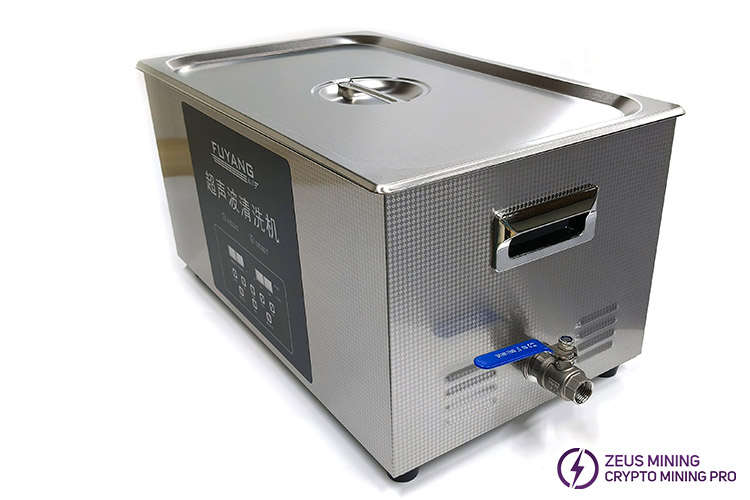

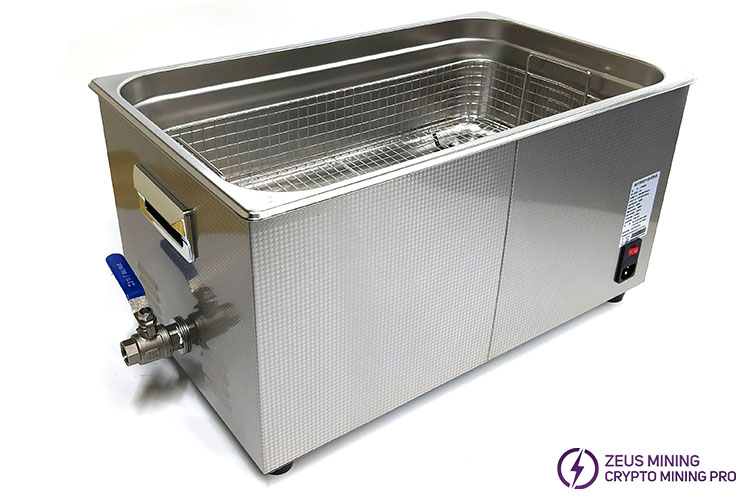

Ultrasonic cleaner

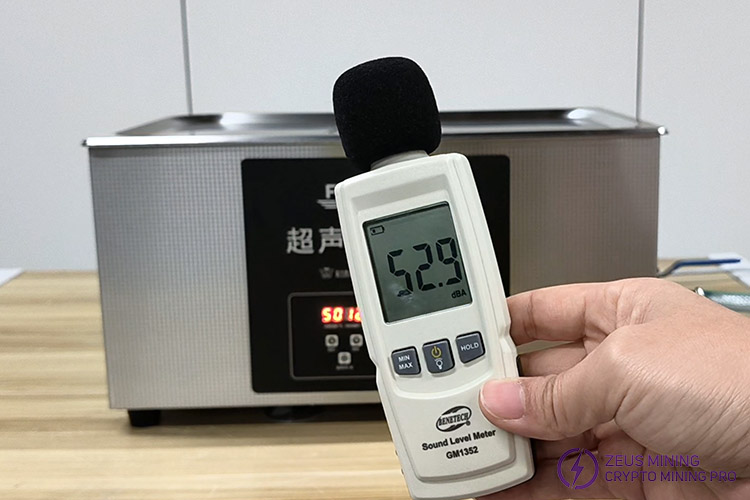

Ultrasonic cleaner is used for comprehensive cleaning of hash boards and control boards. It has corrosion resistance, variable wave cleaning, noise reduction treatment, and deep cleaning of the surface and interior of parts through ultra-high frequency ultrasonic waves. Circuit boards, industrial machinery parts, metal parts, can be used.

Circuit board electronic cleaning method:

General dirt: tin slag, rosin, flux, dust, grease;

Commonly used cleaning agents: Circuit board cleaning solution(tin slag + rosin + flux + dust removal), alcohol (dust + oil);

How to use:

1. Add two-thirds of the cleaning agent (minimum one-half);

2. Time setting: about 5-8 minutes (watch while washing, wash it);

3. Temperature setting: volatile cleaning agent, no need to start heating;

4. Press the ultrasonic start button directly to start cleaning.

Reminder: The object can be roughly washed with pure water in the machine first and then washed with cleaning agents, the effect is better, and the effect of the detergent can be prolonged.

Note: When using volatile cleaning agents, pay attention to open flames + pay attention to space ventilation.

Matters needing attention:

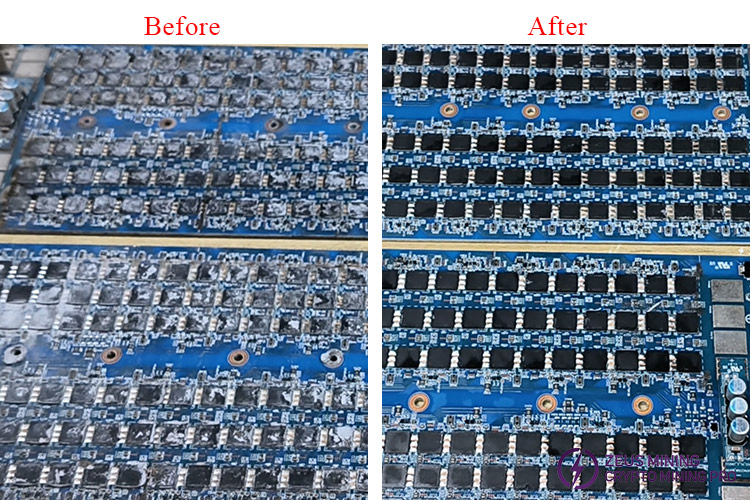

Motherboard cleaning

Washing circuit boards, mobile phone motherboards, chips and other items need to be washed with board washing water.

Hardware cleaning

Clean the hardware parts with oil stains and rust, and cooperate with the corresponding degreasing/rust remover to achieve the desired effect.

Product parameters:

Inner tank capacity: 22L

Inner groove material: 304 stainless steel

Ultrasonic rated power: 480W

Ultrasonic rated frequency: 40KHz

Rated heating power: 600W

Vibrating head type: industrial grade

Liner size: 500*300*150mm

Size: 531*328*281mm

Functional features:

Degas cleaning, one-key degassing;

Variable wave cleaning, half wave/full wave optional;

The temperature can be adjusted from normal temperature to 80°, and the time can be adjusted from 1-30 minutes;

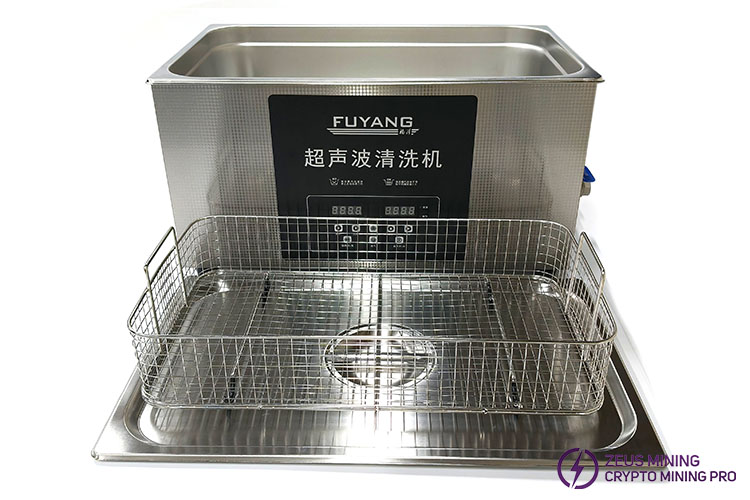

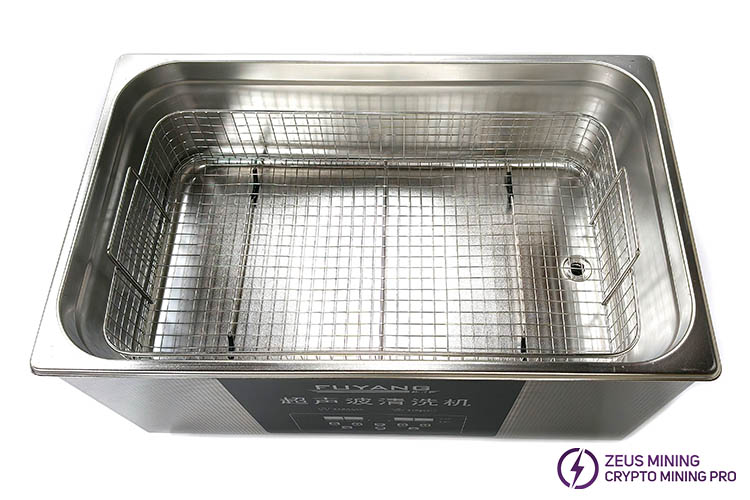

SUS304 inner tank, 1 stamping forming;

Industrial transducer, 40KHZ industrial vibration head;

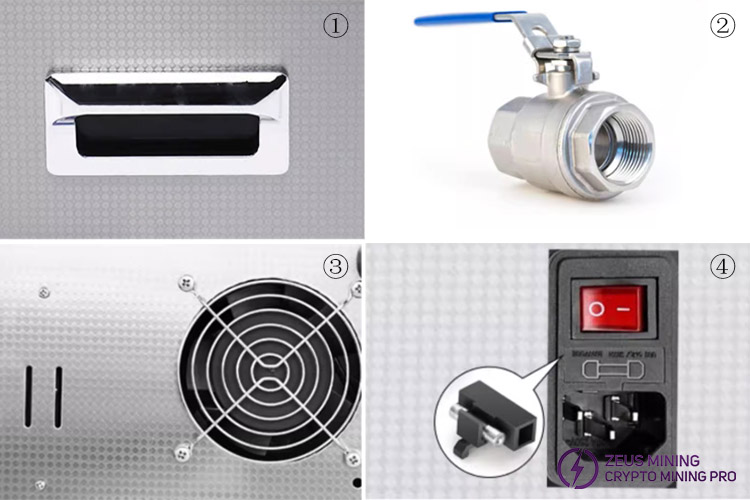

All-round heat dissipation, cooling fan + multi-hole heat dissipation;

High-quality foot pads, silicone cushioning;

Generator power cord, three-phase plug, anti-static;

Machine power cord, thickened cable.
