EG27324
EG27324
EG27324EG27324
Ratings:
( 527 Reviews )
EG27324
Unit Price: $ 0.35
MOQ: 10    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

EG27324 is a cost-effective, dual-channel independent driver dedicated chip with an SD function. The logic signal input processing circuit, level shift circuit, and output drive circuit are integrated inside and used in the motor controller, power supply, and transformer drive circuit.

The power supply voltage range of EG27324 is wide from 2.8V to 20V, and the static power consumption is less than 1uA. The chip's input channels INA and INB each have a built-in 200K pull-down resistor; SD has a built-in 200K pull-down resistor; when the SD input is floating, it does not affect the output of OUTA and OUtB; output current capability I0+/- 2/2.5A; It is packaged in SOP8.

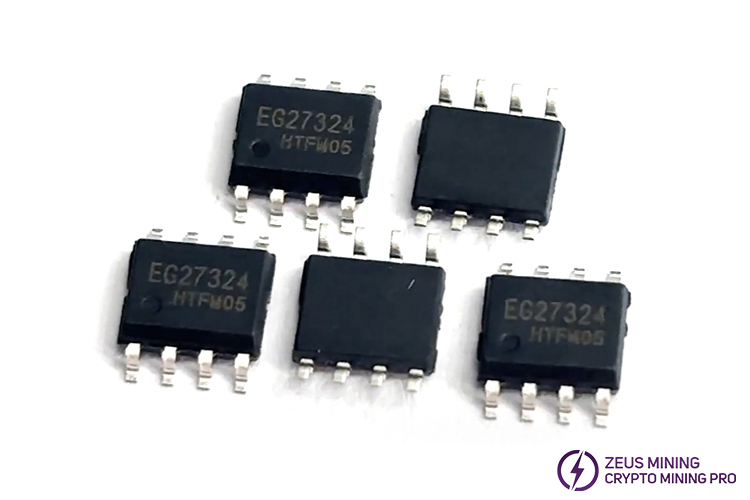

EG27324 chip

Product features:

Adapt to 5V, 3.3V input voltage

VCC voltage range 2.8V-20V

Output current capability IO+/-2A/2.5A

Short input and output delay

The SD input channel is active high and closes the HO and LO outputs

Fewer peripherals

Quiescent current is less than 1uA, ideal for battery applications

Package form: SOP-8

EG27324 driver chip

Application areas:

Mobile power

Wireless charging drive

Variable frequency water pump controller

Motor driver

Power supply

Drive transformer
