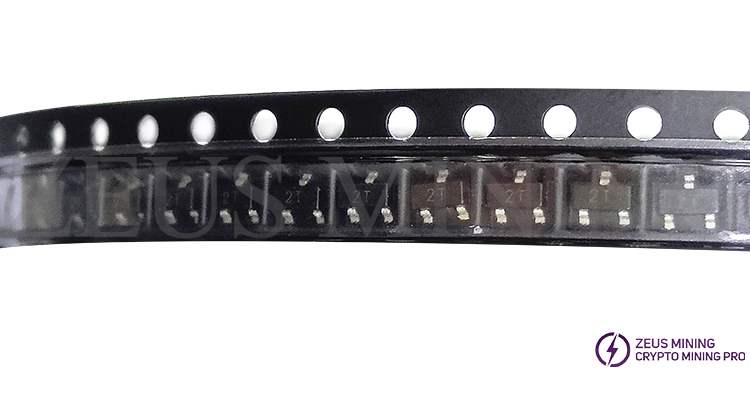

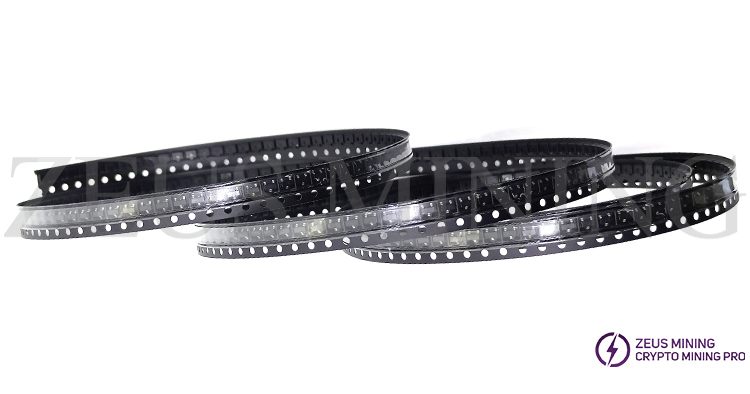

Telegram : @zeusmining_presalesMMBT4403 40V PNP surface mounts a small signal transistor in a SOT23 package and silkscreen marked 2T, ideal for medium power amplification and switching.
Product parameters:
Model code: MMBT4403
SMD transistor code: 2T
Transistor Material: Si
Polarity: PNP
Maximum collector power dissipation (Pc): 0.31W
Maximum collector base voltage |Vcb|: 40V
Maximum collector-emitter voltage |Vce|: 40V
Maximum Emitter-Base Voltage |Veb|: 5V
Maximum collector current |Ic max|: 0.6A
Maximum Operating Junction Temperature (Tj): 135°C
Conversion frequency (feet): 200MHz
Collector Capacitance (Cc): 9pF
Forward Current Transfer Ratio (hFE), Min: 100
Product features:
• Epitaxial planar die structure
• Supplemental NPN type available (MMBT4401)
• Ideal for medium power amplification and switching
