| Unit Price: | $ 8.8 |
WhatsApp : +8618623251355

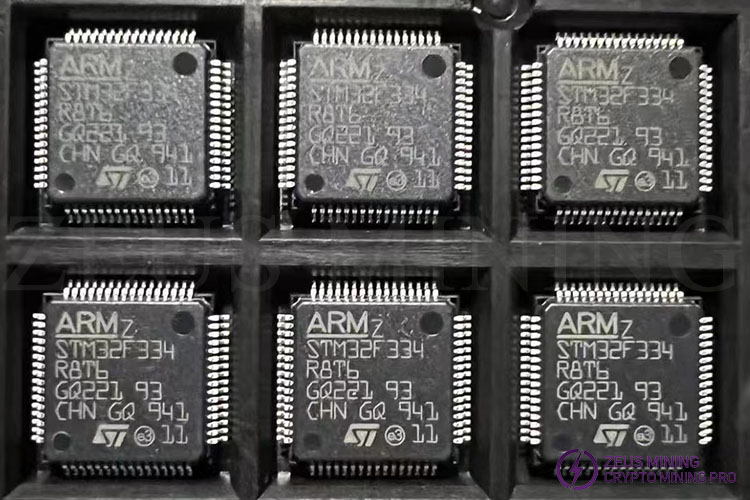

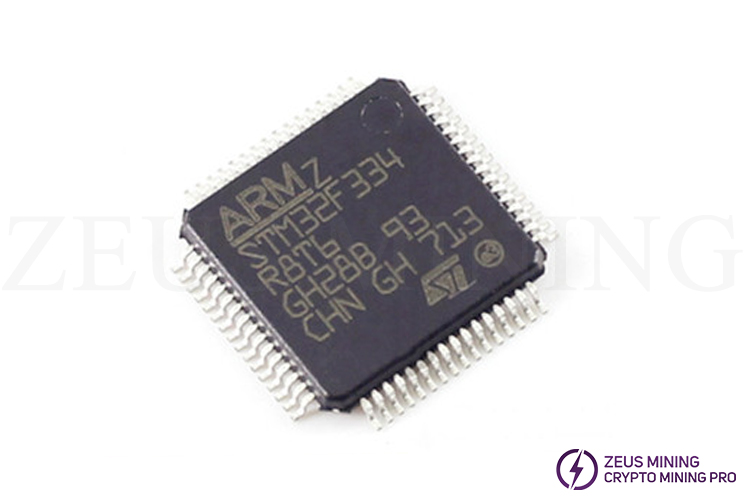

Telegram : @zeusmining_presalesThe STM32F334R8T6 series integrates a high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 72 MHz, embedded floating-point unit (FPU), high-speed embedded memory, and various enhanced I /O and peripherals.
The STM32F334R8T6 microcontroller offers two fast 12-bit ADCs (5 Msps), up to three ultra-fast comparators, one op-amp, three DAC channels, a low-power RTC, a high-resolution timer, a general-purpose 32-bit timer, one dedicated timer for motor control, and four general-purpose 16-bit timers.
The STM32F334R8T6 operates over a temperature range of –40 to +85 °C and –40 to +105 °C, with a supply voltage of 2.0 to 3.6 V, and is available in a 64-pin package.
Product features:
• Up to 51 fast I/O ports, all mappable to external interrupt vectors, several 5 V tolerant
• 7-channel DMA controller
• Temperature sensor
• Up to three 12-bit DAC channels with 2.4 V to 3.6 V analog supply
• Three ultra-fast rail-to-rail analog comparators with 2 to 3.6 V analog supply
• An operational amplifier that can be used in PGA mode, all terminals accessible from a 2.4 to 3.6 V analog supply
• Up to 18 capacitive sensing channels supporting touch keys, linear and rotary touch sensors
• Up to 12 timers
• Calendar RTC with alarm, wake up periodically from stop
• Debugging mode: serial wire debugging (SWD), JTAG
• 96-bit unique ID
• All packaging conforms to ECOPACK ® 2
Payment method:
How to determine product prices and shipping costs?When you are ready to buy one or more products. You can consult the sales Manager to get a sample of the proforma invoice. The category, product price, and freight are included. |
||
How to complete the payment?We have the following payment methods. You can tell our sales Manager which payment you prefer and complete it. After the customer service checks and confirms the payment is completed. Provide the proforma invoice. And we will prepare to ship. |
||
Cryptocurrency Payment |
||
 |
Bitcoin - The payment method at the designated address is efficient and practical and can be used anywhere in the world. Wallet Address |
|
 |
USDT - The payment method at the designated address is efficient and practical and can be used anywhere in the world. Wallet Address |
|
 |
ETH - The payment method at the designated address is efficient and practical and can be used anywhere in the world. Wallet Address |
|
 |
LTC - The payment method at the designated address is efficient and practical and can be used anywhere in the world. Wallet Address |
|
 |
USDC - The payment method at the designated address is efficient and practical and can be used anywhere in the world. Wallet Address |
|
Bank Transfer |
||
 |
Wire transfer - USD - SeaTree Card Number |
|
|
Wire transfer - USD, EUR, GBP, HKD, CNH, CAD, SGD, JPY, AUD, NZD Card Number |
|
|
JP MORGAN CHASE BANK, N.A. Card Number |
|
|
Wire transfer - USD - Zhou sicong Card Number |
|
 |
人民币支付 - CNY payment Card Number |
|
Other payment methods |
||
 |
||
|
Cooperation express: |
 |
Q: When will we ship after payment?
A: In order to ensure that the products we ship are in good condition. Issued approximately 1-2 days after receiving your payment.
Q: What if the product is damaged during transportation?
A: We will use a more robust package when shipping to avoid damage to the goods, and we can purchase transportation insurance in advance to reduce the loss of in the transport. although this problem is not common.
Q: What payment methods do we support?
A: We support bank transfer, wire transfer, BTC, third-party guarantee and Paypal.
Q: What should I do if there is a problem after receiving the products?
A: We have established good relationships with maintenance departments in many countries/regions in the world. For example, Venezuela, Iran, etc. If you have any questions within 3 days after receiving the goods, you can apply for after-sales service on the "My Order" page.
Q: Which express we support?
A: We will choose the cheapest and fastest transportation method for you. And we support DHL, UPS, TNT, Fedex, BRE, and also have express delivery services, such as Russia, the United States, Kuwait, etc.
