HY510 thermal grease is used to fill the gap between the ASIC chip and the heat sink. This material is also called thermal interface material. Its function is to conduct the heat emitted by the ASIC chip to the heat sink, to keep the ASIC chip's temperature at a level that can work stably, prevent the ASIC chip from being damaged due to poor heat dissipation, and prolong the service life. Act on electronic components, electricians, household appliances, LCD, LED, CPU radiators, and other products to increase heat conduction, fill gaps, insulate, waterproof, moisture-proof, shockproof, etc.; can also be filled between electronic components and radiators, Fully wet the contact surface to form a very low thermal resistance surface, and its heat dissipation efficiency is much superior to other types of heat dissipation products.

Product parameters:

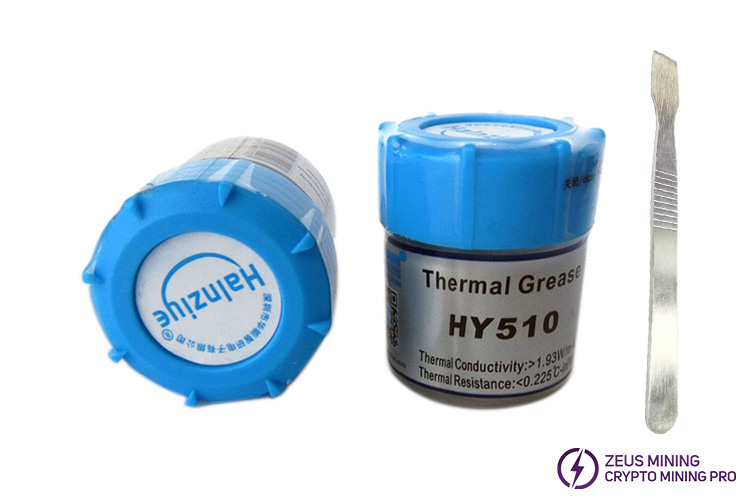

Model: HY510

Name: thermal grease

color: grey

Thermal conductivity: >1.93W/m.k

Thermal resistance: <0.225℃-in²/W

Instant temperature resistance: -50~280℃

Working temperature: -30~240℃

Net weight: 10g / 30g

Storage method: Recommended to cold storage in refrigerator

Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.

Product features:

1. It is made of metal oxide with good thermal conductivity and insulation and imported silicone oil, which has excellent thermal conductivity;

2. Excellent electrical insulation;

3. Wide operating temperature: operating temperature -30 to 240 degrees;

4. Not dry at high temperature, no oil leakage; non-toxic, tasteless, non-corrosive, halogen-free and environmentally friendly; the flame retardant grade can reach UL94V-0.

5. It is used in high-power LED, notebook and desktop computers, various household appliances, electronic components, electricians, and other fields. It has excellent thermal conductivity so your computer performance can be fully played.

Precautions:

1. Store in a cool place.

2. Place it in a place that is not easy for children to go, and be careful to prevent accidental ingestion.

3. If you swallow it by mistake or come into contact with your eyes, ears, nose, and mouth, please wash it with clean water immediately and seek medical attention.

How to use thermal paste:

1) Clean the corrosion, dust, oil, and residual silicone grease on the ASIC chip surface with Mechanic 500 S880 850 lead free circuit board cleaner and HM-11 nano high density cleaning sponge;

2) Apply the thermal grease to the chip surface evenly;

3) Finally, install the heat sink and tighten the screws.
