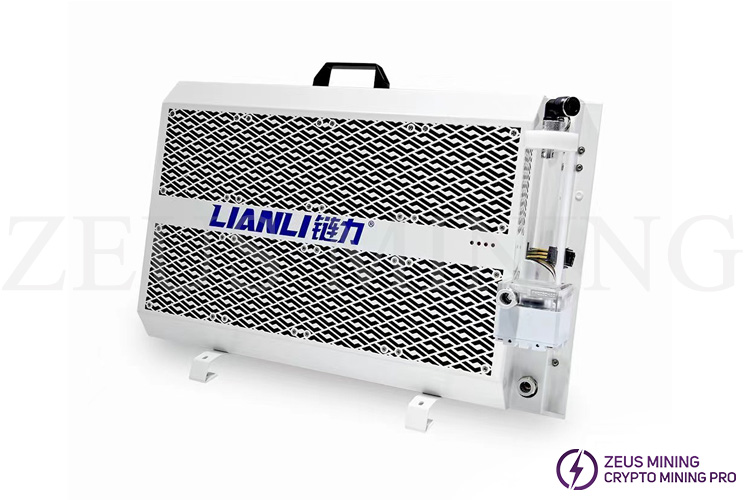

Lian Li 4.5kw radiator is used with water-cooling plates to help miners dissipate heat quickly and improve miner operating efficiency. It adopts the application of an integrated pump and exhaust, has no environmental restrictions, waste heat can be used for heating, supports 4.5KW high-power heat dissipation, is quiet and worry-free, and comes with adjustable speed fans from 500 to 3000 rpm. The manual integrated pressure relief valve and the powerful P90 water pump have excellent cooling effects, making them widely used in various water cooling systems. The water-cooled row has a built-in 220V power supply, which can be turned on with one button, without an external power supply, and avoids repeated plugging and unplugging. It is suitable for water-cooled miners such as M56 / M36S / M36S++ / S19PRO.

Note: The 12KW radiator can be used to convert an air-cooled miner below 2500W to a water-cooled miner.

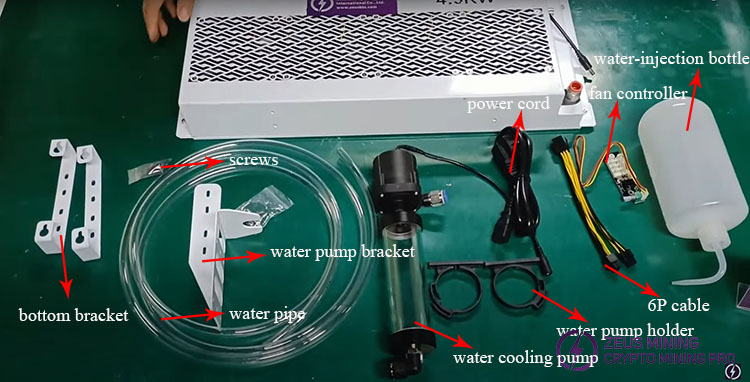

Product supporting list:

Product parameters:

Oil filling capacity: ≈3L

Power interface type: C14 female socket * 1; requires C13 power cord/220V

Water cooling radiator power consumption: 0.16KW

Pipe diameter: water inlet and outlet diameter 12MM (need to be matched with a pipe with an outer diameter of 12MM)

Product size: 600x80x36.5mm

Test environment temperature: 22°C

Working power consumption: 4.2KW

Working noise: 20-70DB

Radiator heat dissipation temperature: 51.6°C

Speed range: 500-4500 rpm

Note: It is recommended that the water inlet pipe be inserted completely into the water pump to reduce the generation of bubbles and damage to the air pump.
