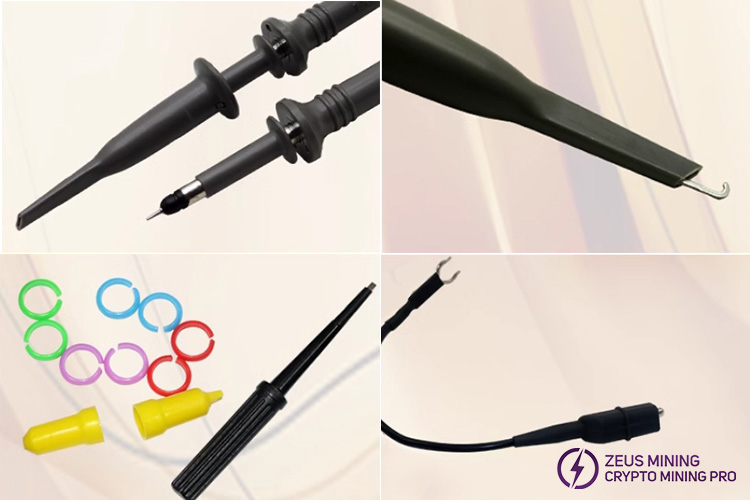

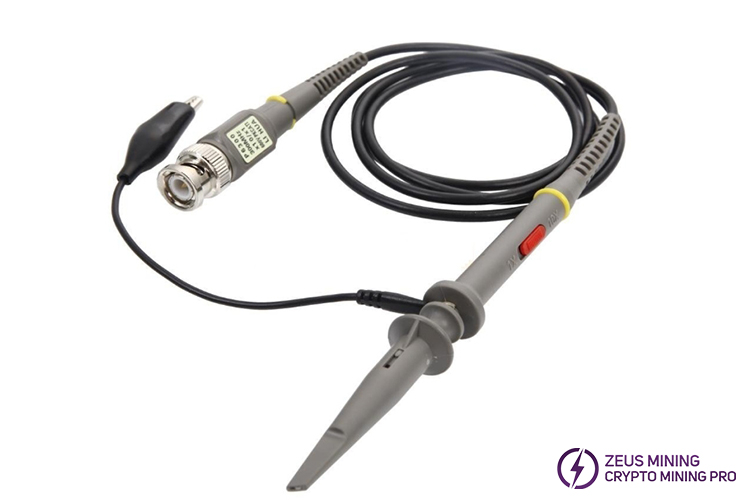

The P6200 P6300 P6400 oscilloscope probes are suitable for all digital and analog voltage detector test circuits. The oscilloscope probes, with 1x or 10x attenuation switches, are suitable for oscilloscopes with bandwidths up to 200MHz, 300MHz, and 400MHz respectively. Interchangeable probe tips of corresponding widths provide high sensitivity, excellent performance, and reliable function. Mini grabber clips help identify different channels.
Attention: The P6020 oscilloscope probe has been discontinued, please choose another model. When choosing an oscilloscope probe bandwidth model, it is recommended to choose a model higher than the oscilloscope bandwidth.
For more selection guides, please click on the article oscilloscope probe bandwidth range selection guide for details.
Specification:
Model | P6200 | P6300 | P6400 | |
Attenuation Ratio | 1X & 10X | |||
Input Resistance(MΩ) | 1X | 1 | ||
10X | 10 | |||
Input Capacitance(pF) | 1X | 130 | 90 | |
10X | 20 | 18 | ||
Compensation Range(pF) | 1X | X | ||
10X | 15-45 | 10-35 | ||
Bandwidth(MHZ) | 1X | 6 | ||
10X | 200 | 300 | 400 | |
Rise time(ns) | 1X | 58 | ||
10X | 17.5 | 5.8 | 2.3 | |
Working Voltage(VP-P) | 1X | 300 | ||
10X | 600 | |||
Net Weight(g) | 64 | |||
Cable Length(cm) | 120 | |||
OperatingT emp.(℃) | -10 to +50 | |||
Non-Operating Temp.(℃) | -20 to +75 | |||
Humidity | ≤85% Relative Humidity | |||
Feature:
- The interface is made of metal, which is not easy to wear and will not be damaged after repeated use.
- The insulating rubber is lengthened, not accessible to age, and prevents electric shock.
- Professional oscilloscope probe, easy to use.
- Suitable for laboratories, physics experiments, and student teaching places.
- Standard BNC interface design, perfectly compatible with related equipment.
