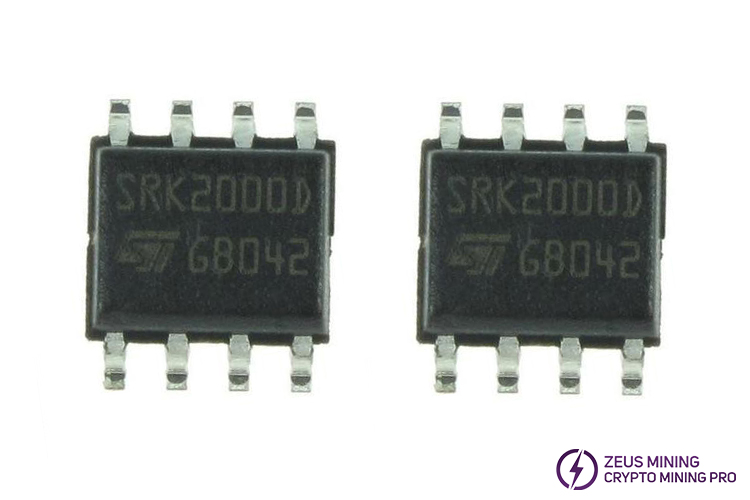

Telegram : @zeusmining_presalesThe SRK2000 smart driver implements a control scheme specific to secondary-side synchronous rectification in LLC resonant converters using a transformer with a center-tapped secondary winding for full-wave rectification. It provides two high current gate drive outputs, each capable of driving one or more N-channel power MOSFETs. Each gate driver is individually controlled, and an interlocking logic prevents both synchronous rectifier MOSFETs from being turned on simultaneously.
Product features:
• Secondary-side synchronous rectifier controller optimized for LLC resonant converter
• Current reverse protection
• Safe management of load transients, light loads, and startup conditions
• Intelligent automatic sleep mode at light load
• Dual gate driver source and 3.5A sink drive current for 1 A N-Channel MOSFET
• Operating voltage range from 4.5 to 32 V
• Programmable UVLO with Hysteresis
• 250 µA static consumption
• Operates up to 500 kHz
• Available in SO-8 package
Application:
• All-in-one PC
• High-power AC-DC adapter
• 80+/85+ compatible ATX SMPS
• 90+/92+ compatible server SMPS
• Industrial SMPS
