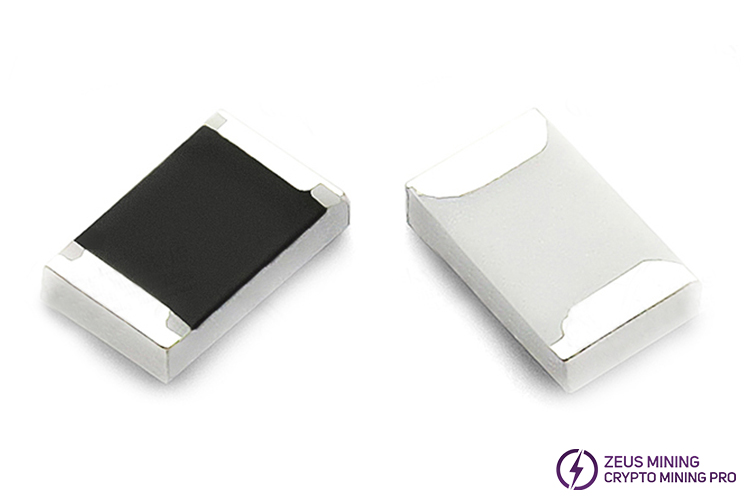

Telegram : @zeusmining_presales0603 chip resistors accuracy 1% 1k 4.7K 1ohm and other specifications. It is one of the metal glass uranium resistors. It is a resistor made by mixing metal powder and glass uranium powder and printing on the substrate by screen printing. It is resistant to humidity and high temperature, easy to operate, and can greatly save circuit space costs. making the design more refined. It can be used for the repair of Antminer, whatsminer, Avalonminer, Innosilicon, Ebit and other miners.
0603 resistor parameters:
Product Name: Chip Resistor
Product model: 0603
Resistance value: 1k 4.7K 1ohm and other resistance values are optional
Accuracy: 1%
Dissipation coefficient: 2mW/℃ (in air)
Rated power: 2.5mW (at 25℃)
Operating temperature: -40℃~125℃
The role of 0603 resistors:
1. Limit the current flow and play the role of current limiting.
2. In a series circuit, it acts as a voltage divider. Due to the size and combination of resistors (series or parallel), it can play the role of step-up and step-down.
3. In a parallel circuit, it can play the role of shunting.
Product features:
1. Small size and light weight;
2. Adapt to reflow soldering and wave soldering;
3. Stable electrical performance and high reliability;
4. Low assembly cost and match with automatic mounting equipment;
5. High mechanical strength and superior high-frequency characteristics.
Applications:
- High-end computer
- Industrial equipment
- Automatic control equipment
- Communication equipment
- Medical equipment
- High-tech multimedia electronics
SMD component sizes imperial and metric:
Imperial size code | Dimension L x W inch x inch | Metric size code | Dimension L x W mm x mm |
0201 | 0.02 x 0.01 | 0603 | 0.6 x 0.3 |
0402 | 0.04 x 0.02 | 1005 | 1.0 x 0.5 |
0603 | 0.06 x 0.03 | 1608 | 1.5 x 0.8 |
0805 | 0.08 x 0.05 | 2012 | 2.0 x 1.3 |
1206 | 0.12 x 0.06 | 3216 | 3.2 x 1.6 |
1210 | 0.125 x 0.1 | 3225 | 3.2 x 2.5 |
1812 | 0.125 x 0.18 | 4532 | 3.2 x 4.6 |
2010 | 0.20 x 0.10 | 5025 | 5.0 x 2.5 |
2512 | 0.25 x 0.125 | 6332 | 6.3 x 3.2 |
