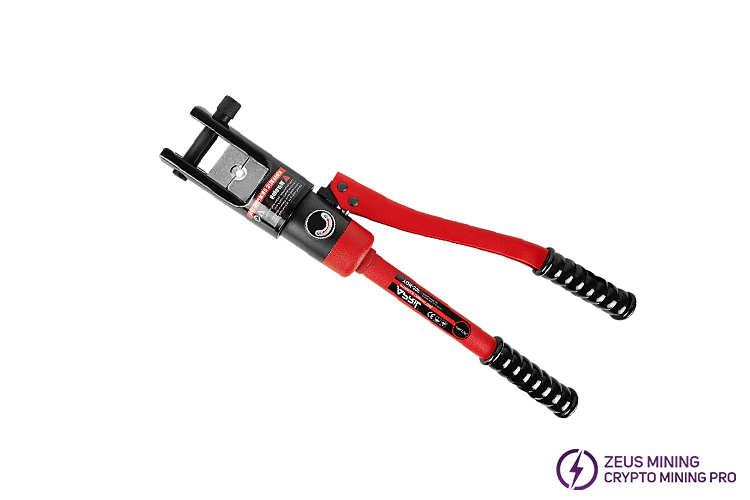

YQK-120 integral crimping pliers hydraulic tool adopts all-steel heat treatment technology, thickened insulated handle, stable crimping, strong and labor-saving, light structure, easy to deal with construction, electric power, transportation, communication fire protection, and other industries, easy to operate, fast and convenient, Suitable for various scenes.

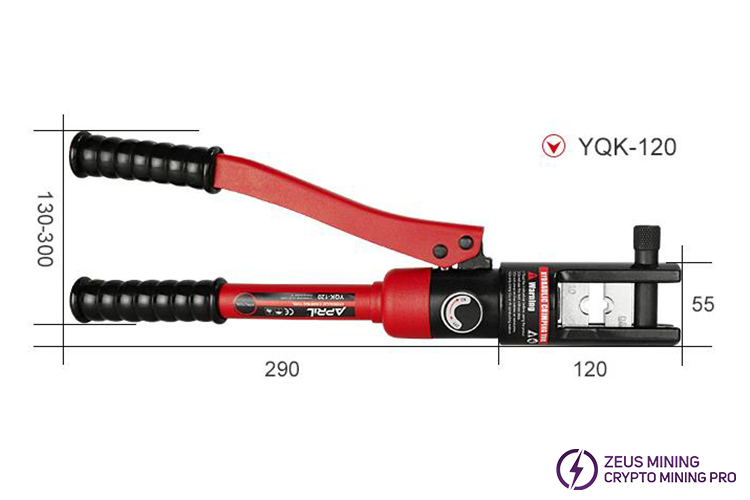

Product parameters:

Model: YQK-120

Output: 80KN

Stroke: 16mm

Crimp range: 10-120mm²

Crimping form: hexagonal pressure

Weight: 4.5kg

Product features:

All-steel heat treatment technology; selection of all-steel material and uniform heat treatment technology make the product not easy to break and improve the service life.

Easy pressure relief; circular gear design, adjustable oil return valve, long service life, no oil leakage.

Thickened insulated handle; ergonomic design, comfortable grip, non-slip and elastic, safe and durable.

The mold is thickened; the hardness is higher after heat treatment, and the mold has a steel stamp, which is convenient for confirming the mold model.

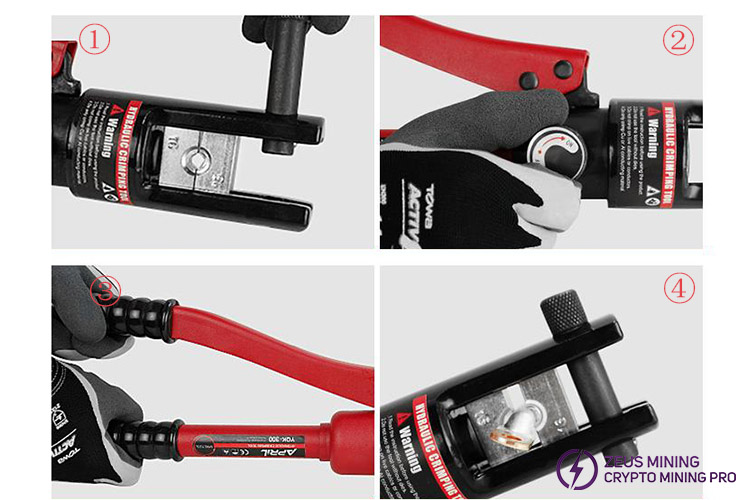

Operating procedures:

1) Replace the mold and put it into the copper-aluminum nose; pull out the metal pin, replace the mold with a suitable size, return the pin, and put it into the copper-aluminum nose.

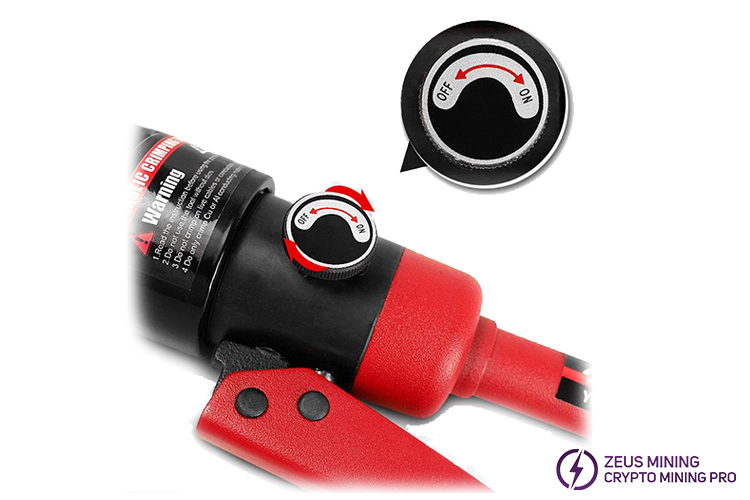

2) Tighten clockwise; turn the oil return nut (ON) clockwise to start crimping.

3) Press the handle; swing the movable handle up and down repeatedly until the product is tightly crimped.

4) The crimping is firm; after the crimping is firm, turn the oil return nut counterclockwise, take out the copper and aluminum nose after the mold is loosened, and the operation is complete.

Notice:

Contamination and air in the hydraulic oil will damage the sealing elements of the tool, making the tool unable to use normally. During the process of replacing the hydraulic oil, it is necessary to ensure that it is clean and prevent foreign impurities from entering the hydraulic system. Wait a few minutes and drain the air in the oil bag before inserting the oil plug.
