| Unit Price: | $ 77 |
Notice: This product is only for APW9 power supply, if you are looking for APW9+ power supply, please click the link below.

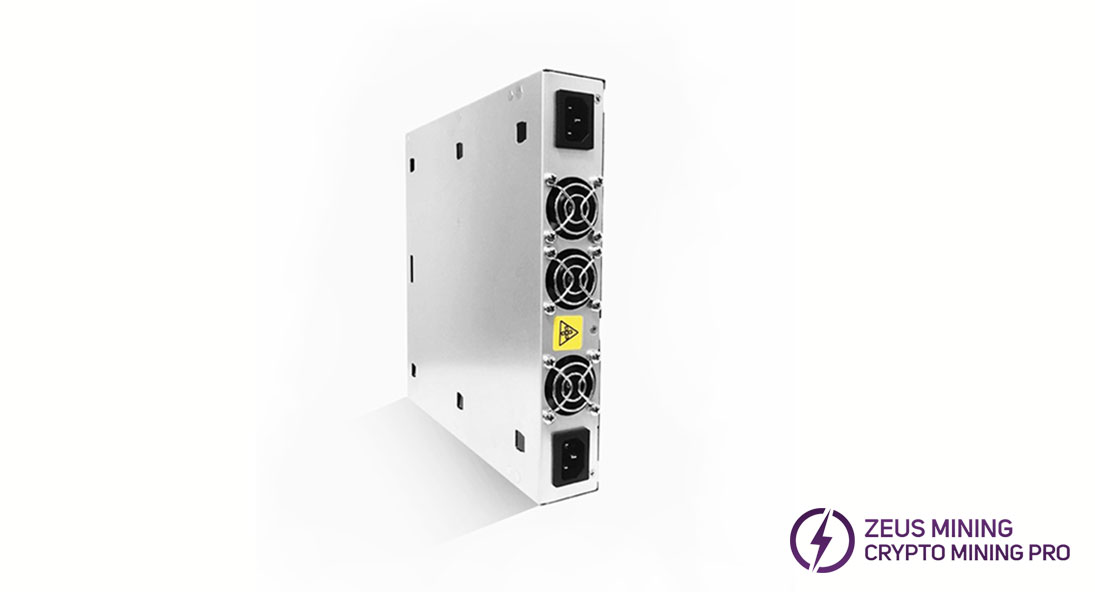

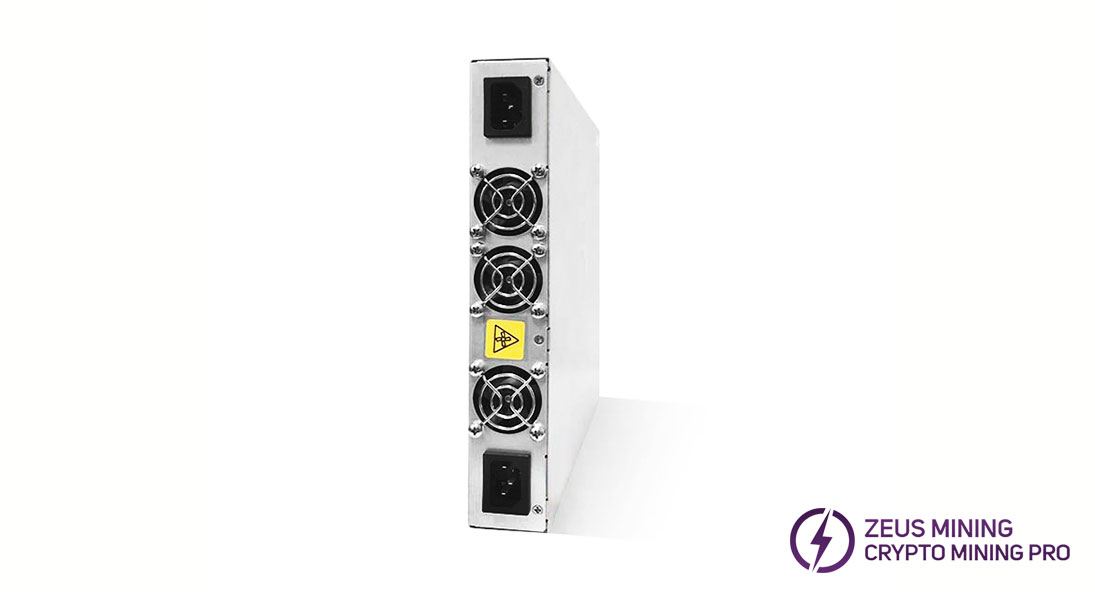

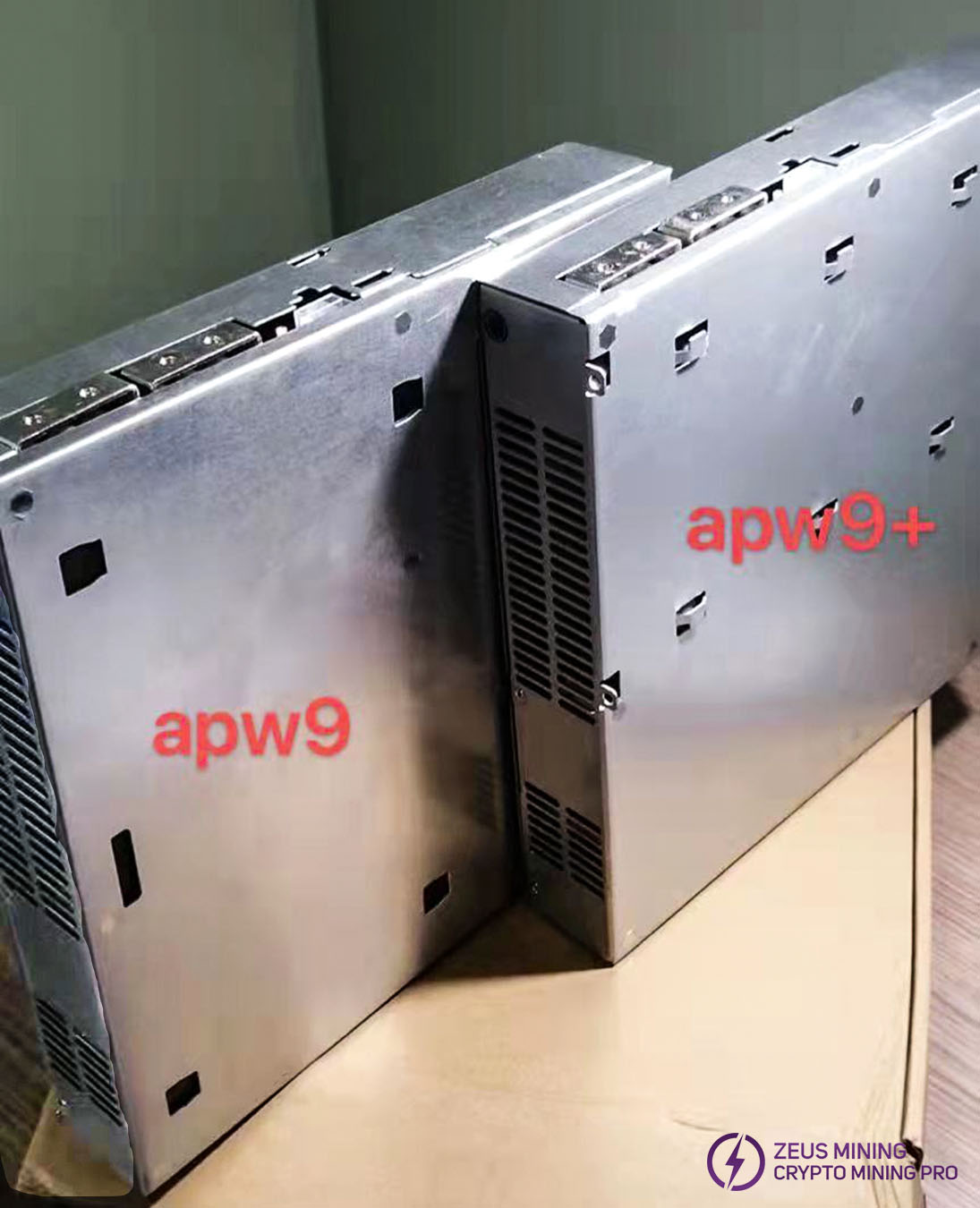

APW9 and APW9+ power supply unit, suitable for Antminer S17, S17 Pro, T17, S17+, S17E, T17+ and T17E.
Suitable for Antminer APW9 and AWP9 + power supply unit PSU.
APW9+ 14.5V-21V
APW9 14.5V-21V EMC
High-quality universal APW9 and APW9+ power supplies are now being wholesale.
We cooperate with Antminer accessory manufacturers, with sufficient supply and quality assurance. APW9 is suitable for Antminer S17, S17Pro, and T17, while APW9+ is suitable for Antminer S17+, S17E, T17+, and T17E. APW9 and APW9+ PSU come from power supply factory and without logo. According to the current market analysis, the market demand for APW9 and APW9+ is huge and strictly controlled, and the supply of APW9 and APW9+ on the market is short. Therefore, our company wholesale these high-quality universal APW9 and APW9+ at a preferential price.
If you are interested in APW9 power supply units, please do not hesitate to consult our sales manager for details.

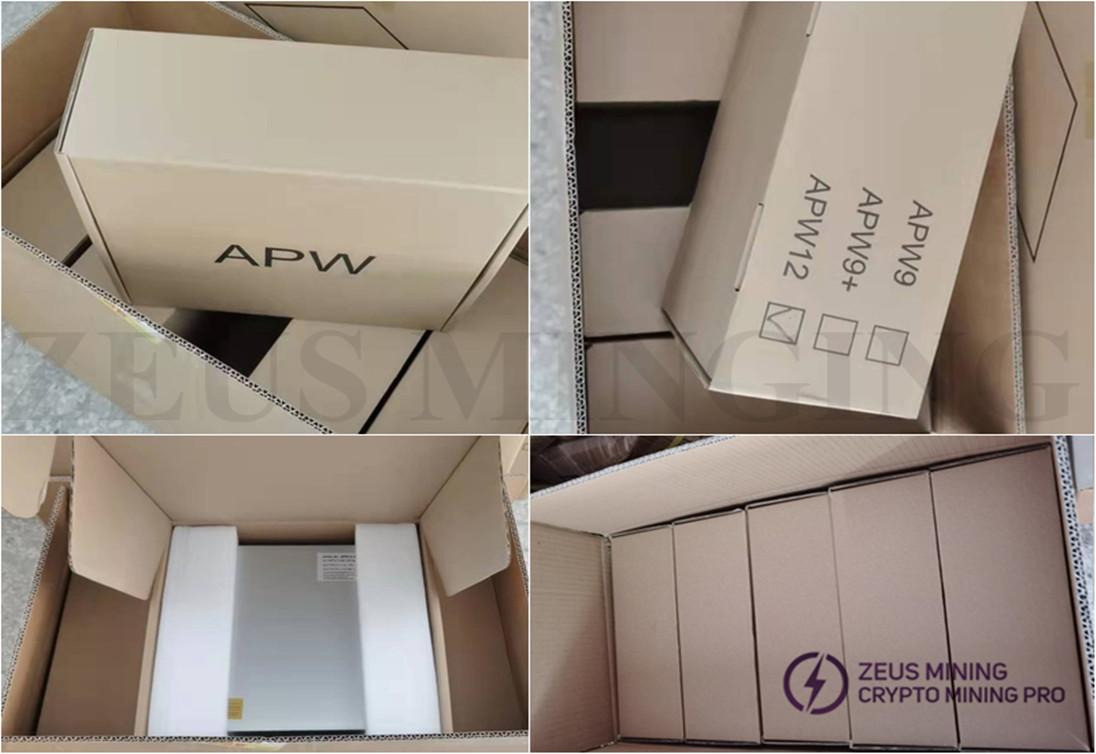

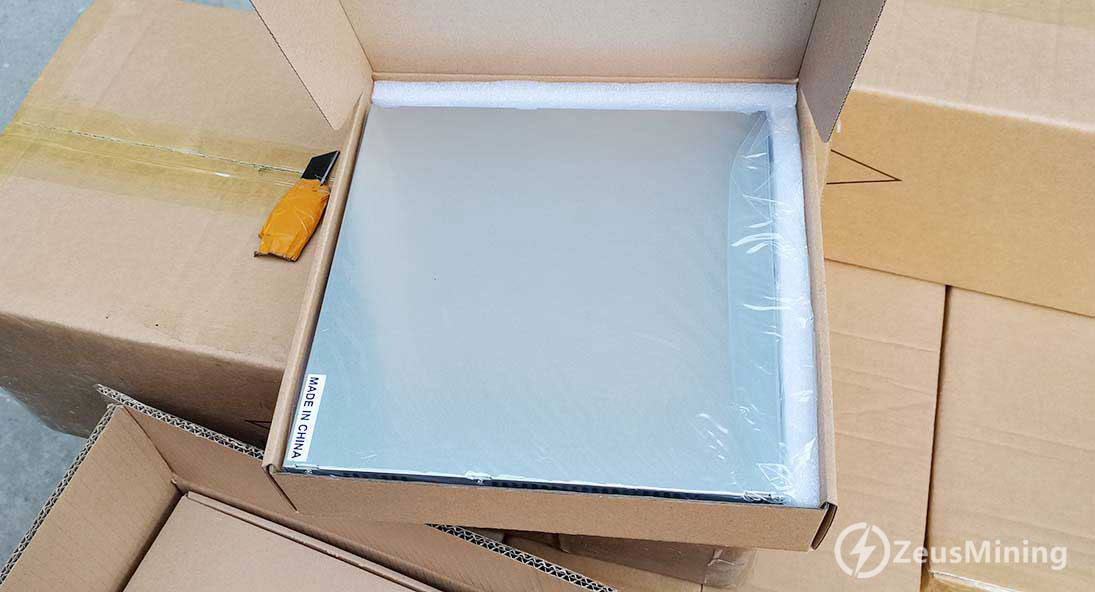

APW9 packing parameters:
Notice: 5 APW9 power supplies are packed in 1 carton
Net weight of power supplies (5 units): 18.8 KG
Gross weight of the whole carton (including 5 power supplies): 19.7 KG
Carton size: 600*330*315 MM

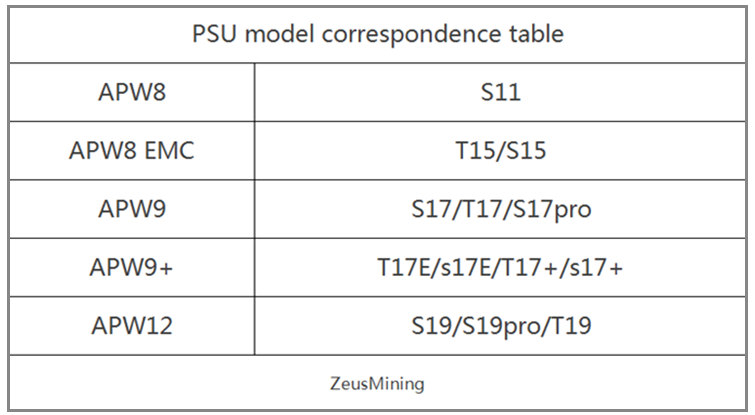

PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW11 | S19Pro+ Hydro, S19Pro Hydro, S19 Hydro, S19XP Hydro, T19 Hydro |
APW111721c | S21 Hydro, S19Pro Hydro |
APW12 | S19, S19j, S19 Pro, S19j Pro, S19i, T19 |
APW121215a | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215b | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215c | S19, S19j, S19j+, S19 Pro, S19j Pro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP |
APW121215e | S19 Pro, S19j Pro, S19XP, S19L |
APW121215f | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP, S19K Pro |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j Pro-A |
APW171215a | S21, S19j XP, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro |
APW11A1216-1a | T21 |
ZeusMining | |
| APW9+ No logo | ||
| OUT1 | DC Voltage | 14.5V - 21V |
| Rated Current (220V input) | 170A | |
| Rated Power (220V input) | 3600W | |
| Ripple & Noise | <1% | |
| Source Regulation | <1% | |
| Load Regulation | <1% | |
| Setup, Rise Time | <2S | |
| Power off Protection Trip Time | >10mS | |
| OUT2 | DC Voltage | 12.3V |
| Rated Current (220V input) | 12A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V - 12.4V | |
| Source Regulation | <1% | |
| Load Regulation | <1% | |
| Setup, Rise Time | <2S | |
| Power off Protection Trip Time | >10mS | |
| Input | Voltage Range | 200 - 240V AC |
| Frequency Range | 47 - 63Hz | |
| Power Factor | >0.99 (full load) | |
| Leakage Current | <1.5mA (220V 50Hz) | |
| Protection | Low-voltage Input | 80 - 89V AC |
| Output Short Circuit | Yes | |
| Output Overcurrent | 180 - 230A | |
| Overheat Protection | Yes | |
| Environment | Operating Temperature | -20 - 50℃ |
| Operating Humidity | 20% - 90%RH (non-condensing) | |
| Altitude | < 2000m | |
| Structure | Dimensions | 249*250*48.5mm |
| Weight | 3.2kg | |
| Cooling Mode | force-air cooling | |
| Noise | 67dBA | |
APW9 No logo | ||
OUT1 | DC Voltage | 14.5V - 21V |
Rated Current (220V input) | 170A | |
Rated Power (220V input) | 3600W | |
Ripple & Noise | <1% | |
Source Regulation | <1% | |
Load Regulation | <1% | |
Setup, Rise Time | <2S | |
Power off Protection Trip Time | >10mS | |
OUT2 | DC Voltage | 12.3V |
Rated Current (220V input) | 12A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V - 12.4V | |
Source Regulation | <1% | |
Load Regulation | <1% | |
Setup, Rise Time | <2S | |
Power off Protection Trip Time | >10mS | |
Input | Voltage Range | 200 - 240V AC |
Frequency Range | 47 - 63Hz | |
Power Factor | >0.99 (full load) | |
Leakage Current | <1.5mA (220V 50Hz) | |
Protection | Low-voltage Input | 80-89V AC |
Output Short Circuit | Yes | |
Output Overcurrent | 95 - 130A | |
Overheat Protection | Yes | |
Environment | Operating Temperature | -20 - 60℃ |
Operating Humidity | 20% - 90%RH (non-condensing) | |
Altitude | < 2000m | |
Structure | Dimensions | 204.8 * 157 * 42.5mm |
Weight | 3.2kg | |
Cooling Mode | force-air cooling | |
Noise | 67dBA | |
Related maintenance tools:
Antminer APW12 PSU 1215 a / b / c / d / e / f / g version
Antminer APW12 1417 PSU for L7 D7 S19JL S19L
Related articles：
Antminer APW9 and APW9+ Power Supply Repair Guide
