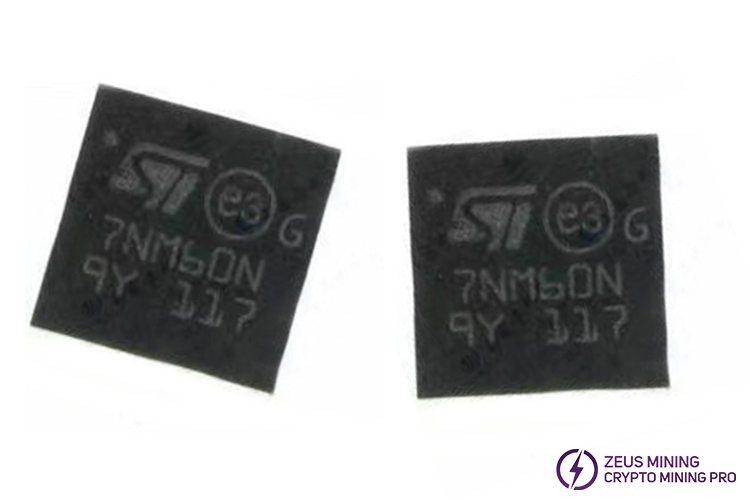

Telegram : @zeusmining_presalesThe STL7NM60N is a 600 V, 0.805 Ω, 5.8 A N-channel power MOSFET silkscreen marked 7NM60N. This revolutionary power MOSFET associates a vertical structure with a striped layout, resulting in one of the lowest on-resistance and gate charges in the world. It is suitable for the most demanding high-efficiency converters.
STL7NM60N parameter:
FET Type: N-channel
Technology: MOSFET (Metal Oxide)
Drain to source voltage (Vdss): 600 V
Current - continuous drain (Id) @ 25°C: 5.8A (Tc)
Drive voltage (Max Rds On, Min Rds On): 10V
Rds on (Max) @ Id, Vgs: 900mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id: 4V @ 250µA
Gate charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
Vgs (Max): ±25V
Input capacitance (Ciss) (Max) @ Vds: 363 pF @ 50 V
Power dissipation (Max): 68W (Tc)
Operating temperature: -55°C ~ 150°C (TJ)
Feature:
• 100% avalanche tested
• Low input capacitance and gate charge
• Low gate input resistance
Application:
• Switching applications
