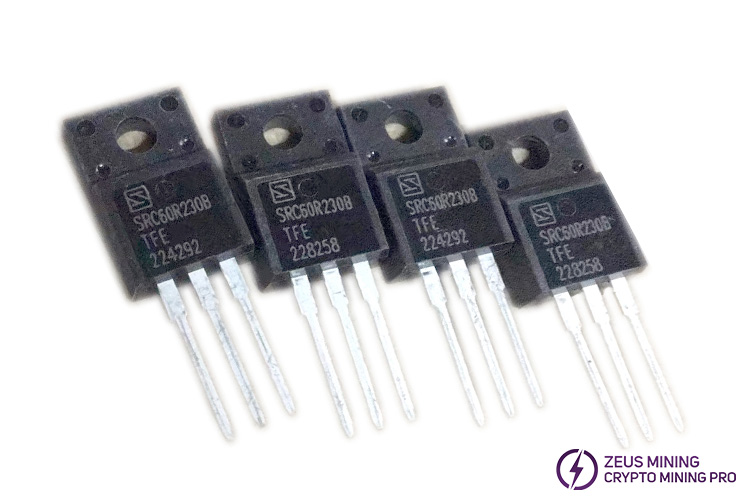

Telegram : @zeusmining_presalesSRC60R230B 230mΩ, 600V is a high voltage power N-Channel power MOSFET manufactured with advanced super junction technology. It has low on-resistance, low gate charge, and fast switching times, making it ideal for applications requiring superior power density and efficiency.
Product parameters:
Model name: SRC60R230B
Transistor type: MOSFET
Control channel type: N channel
Maximum power consumption (Pd): 86.8W
Maximum drain-source voltage |Vds|: 600V
Maximum gate-source voltage |Vgs|: 30V
Maximum gate threshold voltage |Vgs(th)|: 5V
Maximum drain current |Id|: 13.7A
Maximum junction temperature (Tj): 150°C
Total gate charge (Qg): 25.6nC
Rise time (tr): 20nS
Drain-source capacitance (Cd): 86.4pF
Maximum drain-source on-resistance (Rds): 0.23 ohms
Feature:
• Ultra-low RDS(ON) = 230mΩ @ VGS = 10V.
• Ultra-low gate charge, Qg=25.6nC (typ.)
• Intrinsic fast recovery body diode
• Fast switching capability
• Rugged design for better EAS performance
Application:
• AC/DC power supply
• computer battery
• Server/Telecom
• Solar inverters
