| Unit Price: | $ 53 |
WhatsApp : +8618623251355
Telegram : @zeusmining_presalesThe UT89XD is a reliable handheld digital multimeter with true RMS sine wave measurements. It can measure a maximum 1000V DC/AC voltage, maximum 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity, and NCV, and quickly and accurately distinguish between neutral and live wires. UT89XD is equipped with an LED light-emitting diode detection function, which can test the usage of LED lights and diagnose their quality. This series of products has sound and light alarms, a flashlight, and automatic backlight functions, which can be used in dark environments. It attracts users with its two-tone durable casing, modern look, and multiple features.
Product detailed parameters:
Function | UT89XD | UT61E+ | |
DC voltage | 0.1mV~1000V ± (0.5%+2) | 0.01mV~1000V ± (0.05%+5) | |
AC voltage | 1mV~1000V ± (0.8%+5) | 0.01mV~1000V± (0.5%+10) | |
Resistance | 0.1Ω~60MΩ ± (0.8%+3) | 0.01Ω~220MΩ± (0.5%+10) | |
DC current | 0.01uA~20A ± (0.8%+8) | 0.01uA~20A ± (0.5%+10) | |
Alternating current | 10uA~20A ± (1.0%+12) | 0.01uA~20A ± (0.8%+10) | |
Capacitance | 1pF~100mF ± (2.5%+20) | 1pF~220mF ± (3%+5) | |
Frequency | 0.001Hz~10MHz ± (0.1%+4) | 10Hz~220MHz ± (0.1%+4) | |
Duty cycle | 0.1%~99.9%± (2%+5) | 0.1%~99.9% ± (2%+5) | |
On/off buzzer | √ | ||
Maximum display | 6000 | 22000 | |
Diode | √ | √ | |
LED measurement | √ | √ | |
NCV | √ | √ | |
Live line measurement | √ | √ | |
Flashlight | √ | ||
Backlight | √ | ||
Data retention | √ | √ | |
Automatic shut-down | √ | √ | |
Dimensions | 175x81x48.5mm | 183x85x50mm | |
UT61E+: The high-precision function is more comprehensive, and it also adds LPF (low-pass filter) and ACV+DCV functions.

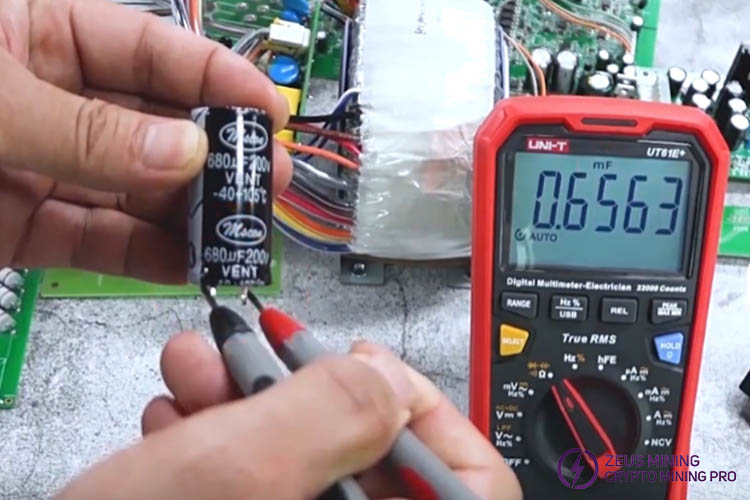

Test effect display:
Related product:
UNI-T UT136C+ digital multimeter
UT890D+ intelligent digital multimeter
