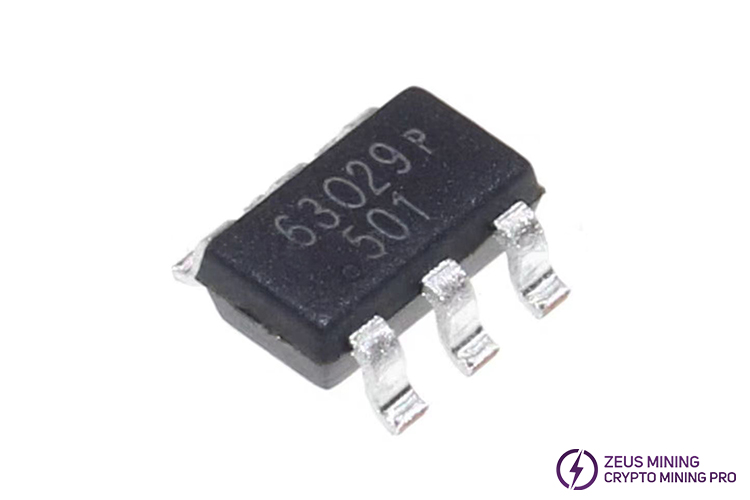

Telegram : @zeusmining_presalesOB2263 is a highly integrated current mode PWM control IC with silk screen marking 63****. The device targets high performance, low standby power, and cost-effective offline flyback converter applications in the sub-30W range optimized. OB2263 is packaged in SOT23-6.
OB2263 provides complete protection coverage and automatic self-recovery features, including cycle-by-cycle current limiting (OCP), overload protection (OLP), VDD overvoltage clamping, and under voltage lockout (UVLO). The gate drive output is clamped to a maximum of 18V to protect the power MOSFETs. Because of the device's low VDD startup current and low operating current performance, large value resistors can be used in the startup circuit to minimize standby power consumption. Its internal slope compensation improves system large-signal stability and reduces subharmonic oscillations that can occur with high PWM duty cycle outputs.
Feature:
• On-Bright proprietary frequency shuffling technology improves EMI performance
• Extended burst mode control improves efficiency and enables the lowest standby power designs
• Audio noiseless operation
• Externally programmable PWM switching frequency
• Internal sync slope compensation
• Low VDD startup current and low operating current (1.4mA)
• Current sense input leading edge blanking
• Good protection coverage and automatic recovery
Application areas:
Offline AC/DC flyback converter for
• Battery charger
• Power adapter
• Set-top box power supply
• Open switching power supply
