| Unit Price: | $ 0.4 |
WhatsApp : +8618623251355

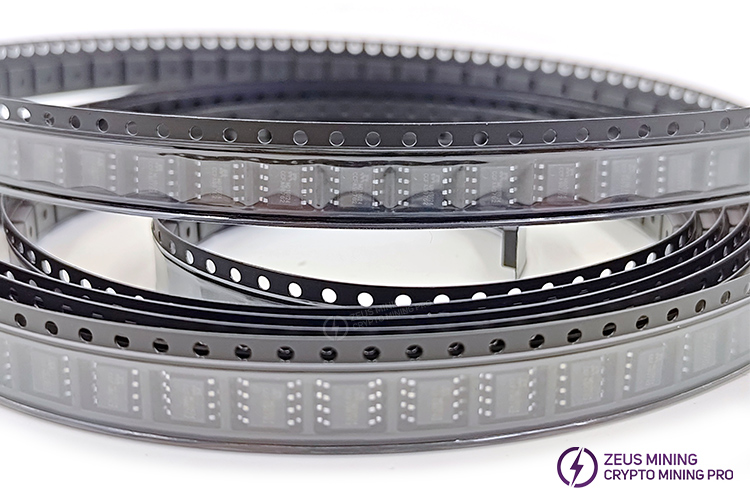

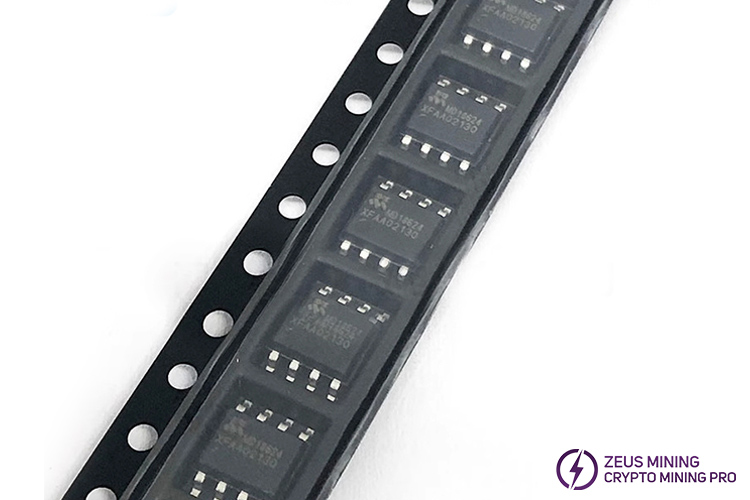

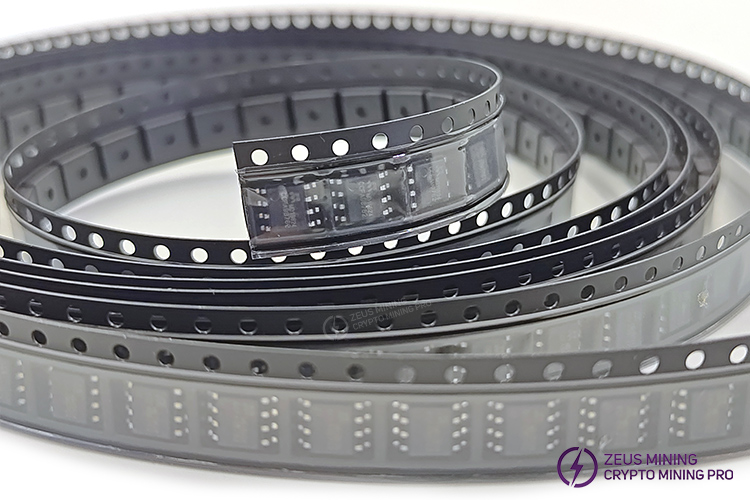

Telegram : @zeusmining_presalesThe MD18624 is a high-frequency gate driver for Avalon 1346 power supplies designed to drive two low-side N-channel MOSFETs with independent inputs for maximum control flexibility. The MD18624 has 11ns rise and fall propagation delays, allowing systems to operate at high frequencies with less variation in delay match. These delays are ideal for applications requiring dual-gate drivers with critical timing, such as synchronous rectifiers.
Product features:
• Two independent gate drive channels with independent inputs
• 5A source and sink output peak current
• 7ns/6ns rise and fall times (2.2nF load)
• Fast propagation delay (11ns typical)
• Excellent propagation delay matching (1ns typical)
• Intelligent stack detection supports channel A and channel B in parallel
• Input pins tolerant from -10V to +26V independent of supply voltage range
• TTL-compatible input
• 4.5V to 26V VDD operating range, 28V ABS maximum
• Symmetric undervoltage lockout for Channel A and Channel B
• Specified from -40°C to 140°C
Application:
Avalon 1346 switching power supply
Power supplies for telecommunications, datacom, and 48V to 72V battery-powered systems
Motor control, solar class D audio amplifier
