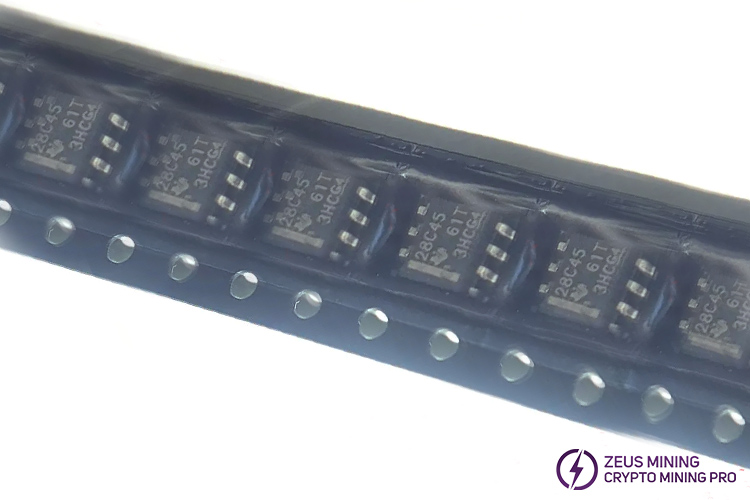

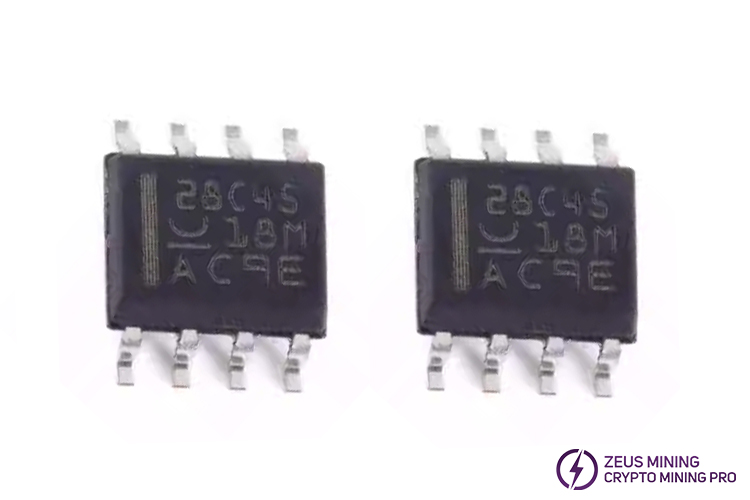

Telegram : @zeusmining_presalesThe UCC28C45DR is a high-performance current mode PWM controller on the Avalon 1346 miner power supply, providing lower power consumption for improved efficiency as well as faster current sensing and oscillator frequency. In addition, the controller provides the functionality needed to control fixed-frequency, peak-current-mode power supplies and features a fast 35 ns current sense-to-output delay time, excellent overload protection at the power switch, and a ±1A peak output current capability, and features improved rise and fall times.
Features:
• Operating frequency: 1 MHz Maximum
• 50μA Startup Current, 100μA Maximum
• Low operating current: 2.3 mA (at fOSC = 52 kHz)
• Fast, cycle-by-cycle overcurrent limiting: 35ns
• Peak driving current: ±1A.
• ±1% accurate 2.5-V error amplifier reference
• Trimmed oscillator discharge current
• Undervoltage lockout protections
Applications:
• Switch-mode power supplies
• General purpose single-ended DC-DC or off-line isolated power converters
• Board mount power modules
