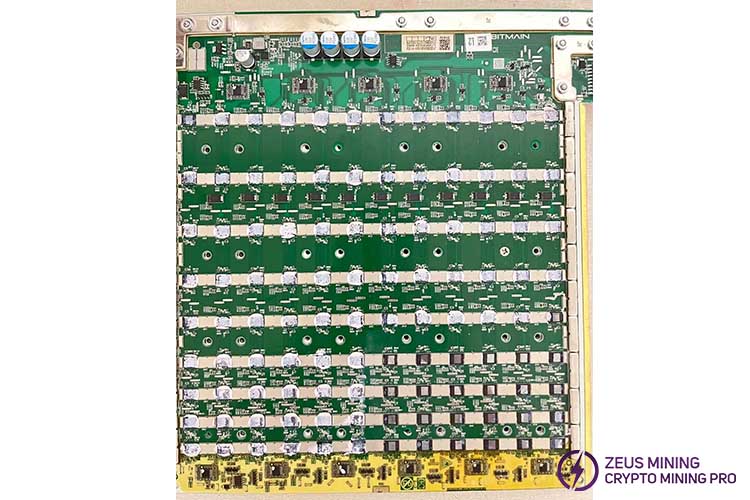

The Antminer S21 T21 thermal grease template is designed to improve the heat dissipation efficiency and lifespan of the miner hash board. This stencil template is specially created for the S21 T21 hash board, which can help the ASIC chip to accurately apply thermal grease and solve the chip heat dissipation problem. By quickly and evenly applying thermal grease to the S21 T21 hash board ASIC chip, you can significantly increase the success rate of installing your heatsink. This not only reduces maintenance time, but also improves silicone grease coverage, resulting in more efficient cooling and lower hash board operating temperatures. With its intricate design, the template ensures that the hash board is covered while protecting the ASIC chips and other small electronic components. It is one of the important tools for installing the S21 T21 heatsink.

Note: S21 and T21 silicone grease steel mesh are the same and can be used universally.

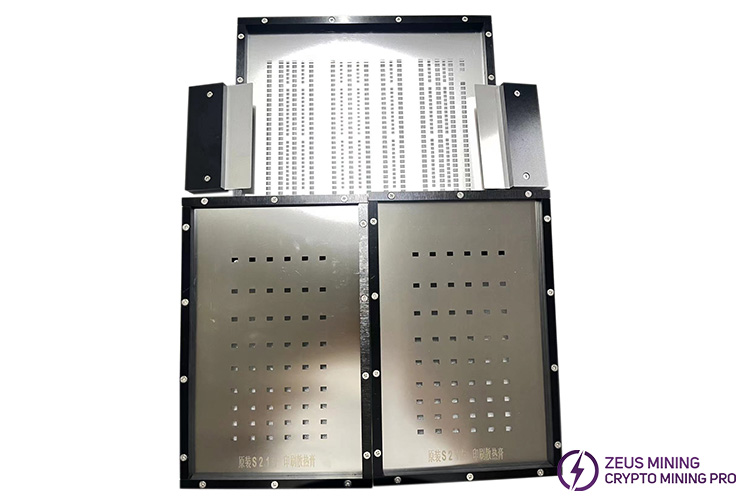

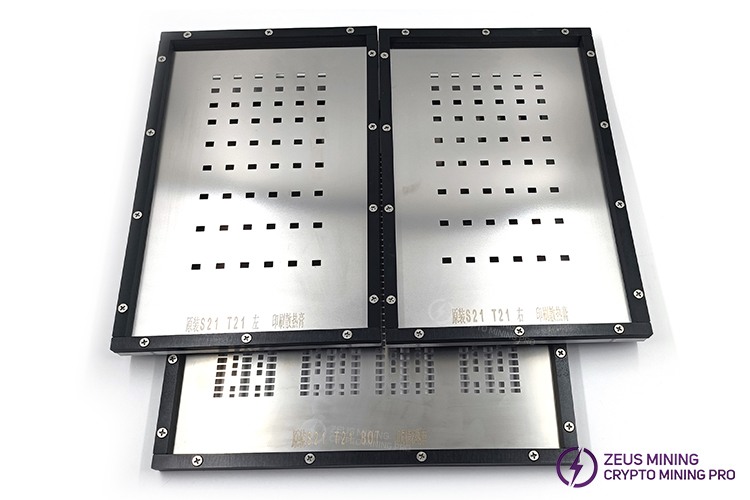

This S21 silicone grease steel mesh set is divided into three pieces: S21 left, S21 right, and S21 BOT.

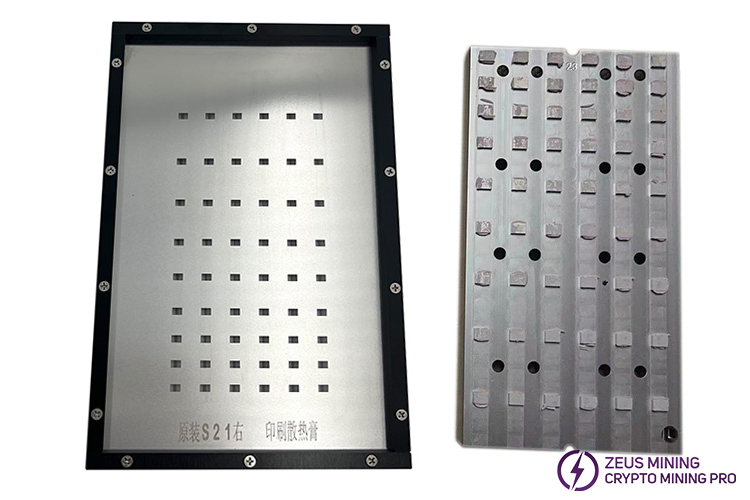

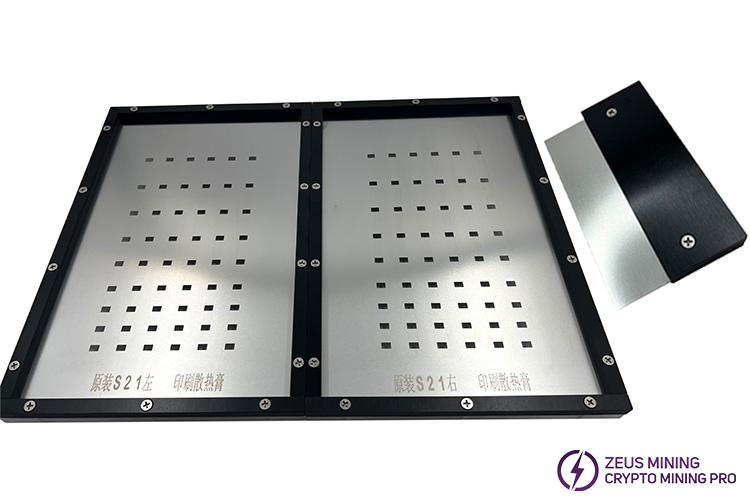

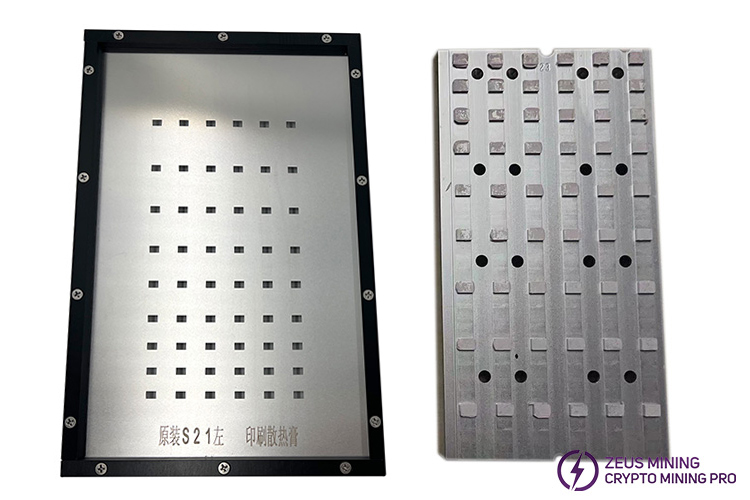

S21 left and S21 right are respectively used to apply thermal grease to the heat sink on the S21 hash board ASIC chip surface.

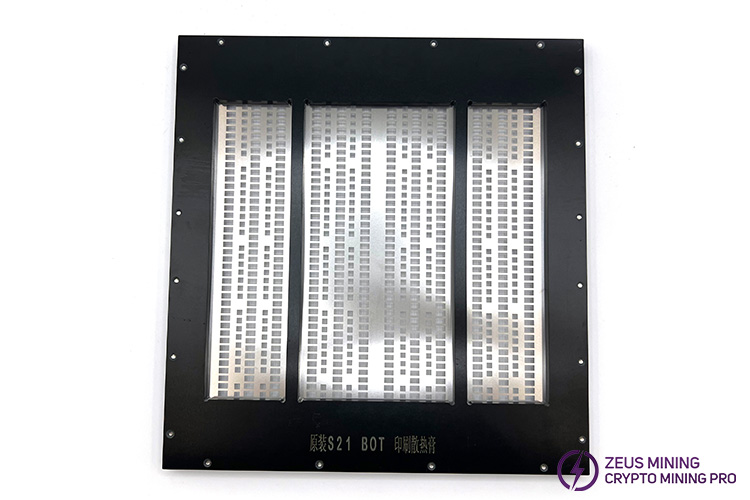

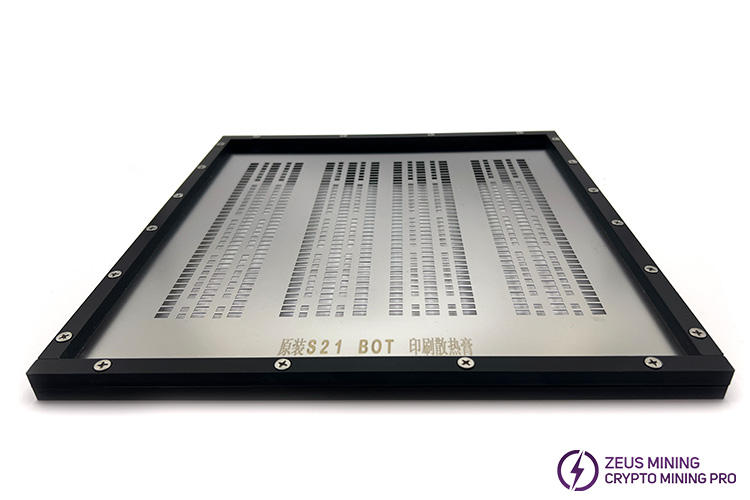

The S21 BOT is used to apply thermal grease to the back of the S21 hash board.
