SW-360 LCD 3 Phase rotation indicator

SW-360 3 Phase power rotation meter is a phase sequence detector suitable for high-precision power supply phase loss detection. It is a three-phase AC test phase sequence meter with simple operation and high accuracy. It is commonly used to construct power cables or PDUs on mining farms.

Main parameters:

Display: three-digit LCD display, character height 18MM

Sampling rate: 3 times/second

AC frequency: 20-400HZ

Working voltage range: 40-600V

Working environment: temperature 0-40°C, humidity 0-80%RH

Storage environment: temperature -10~60°C, humidity 0~85%RH

Quiescent current: less than 3mA

Power supply: 3 No.7 batteries

Dimensions: 116x66x26mm

Wire length: 800mm

Interface display:

① Measurement connection line

② LCD display

③ Forward and reverse phase sequence indicator

④ Yellow corresponds to L1/A phase

⑤ Green corresponds to L2/B phase

⑥ Red corresponds to L3/C phase

⑦ Test clip

Test result description:

1) When there is no input, or the value is less than 40, the LCD does not display;

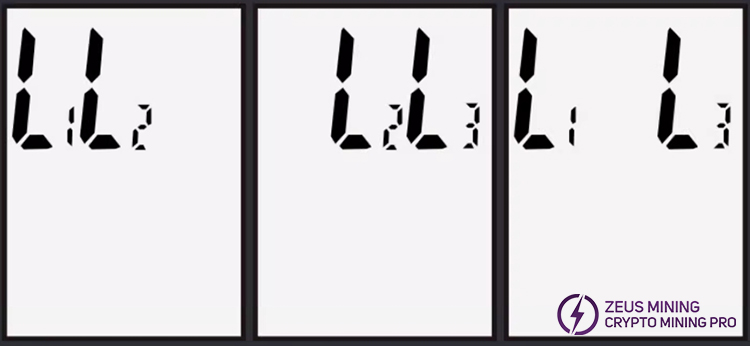

2) When the three-phase power under test has a phase loss, the LCD displays as follows;

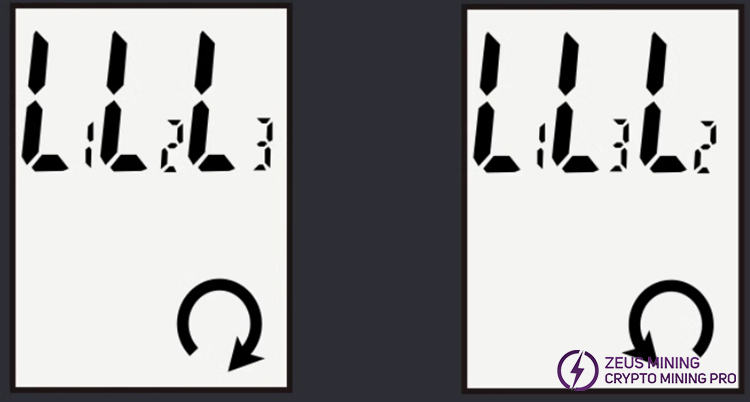

3) When the three-phase power under test is in the forward phase, the LCD displays as follows (left);

4) When the three-phase power under test is reverse phase, the LCD displays as follows (right).

Part lists:

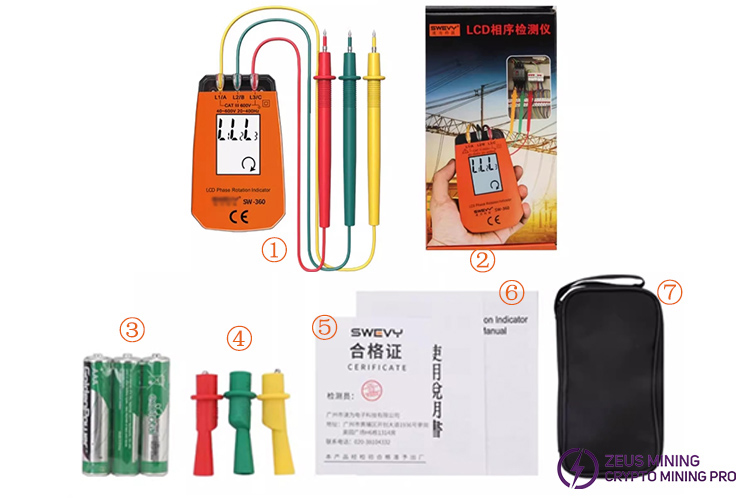

①Instrument

②Colorful packaging

③AA battery

④Alligator clip

⑤Certificate of conformity

⑥Instruction manual

⑦Portable bag
