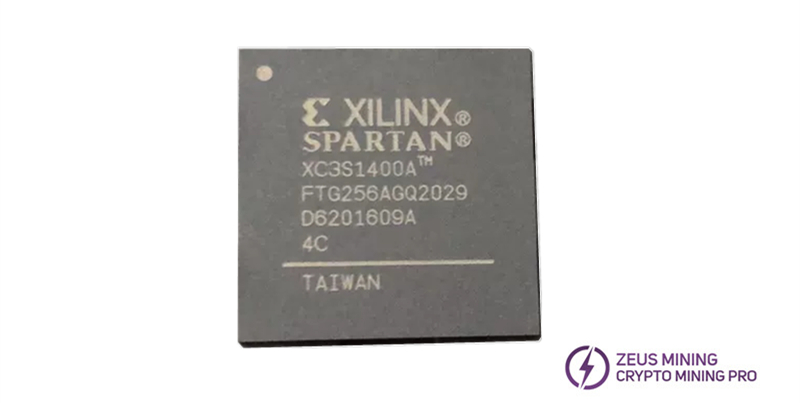

XC3S1400A-4FTG256C
XC3S1400A-4FTG256C is the high performance Field-Programmable Gate Arrays in Spartan®-3A family. 1.4M gate 25344 unit 667MHz 90nm technology 1.2V 256 pin FTBGA.
The Spartan®-3A Field Programmable Gate Array (FPGA) series solves most design challenges in high-volume, cost-sensitive, I/O-intensive electronic applications.
Feature:
• Very low-cost, high-performance logic solutions for low-cost, high-cost applications
• Dual-range VCCAUX power supply simplifies the design of only 3.3V
• Suspend, sleep mode can reduce system power consumption
• Multi-voltage, multi-standard SelectIO™ interface pins
• Up to 502 I/O pins or 227 differential signal pairs
• LVCMOS, LVTTL, HSTL and SSTL single-ended I/O
• 3.3V, 2.5V, 1.8V, 1.5V and 1.2V signaling
• Optional output driver, maximum 24 mA per pin
• QUIETIO standard reduces I/O switching noise
• Complete 3.3V±10% compatibility and hot plug compliance
Spartan-3A FPGA supports the following single-ended standards:
•3.3V low voltage TTL (LVTTL)
• 3.3V, 2.5V, 1.8V, 1.5V or 1.2V low voltage CMOS (LVCMOS)
• 3.3V PCI at 33 MHz or 66 MHz
• 1.5V and 1.8V HSTL I, II and III commonly used in memory applications
• 1.8V, 2.5V and 3.3V SSTL I and II for memory applications, respectively
Product parameters:
Product | XC3S1400A-4FTG256C |
Product Category | FPGA-Field Programmable Gate Array |
Working power supply voltage | 1.2V |
Distributed RAM | 176 kilobits |
Case/Package | BGA |
Number of gates | 1400000 |
Number of I/O | 161 I/O |
Embedded Block RAM-EBR | 576 bits |
Number of logical elements | 25344 LE |
Max Operating temperature | 85℃ |
Max Supply Voltage | 1.26V |
Mount | Surface Mount |
Number of Pins | 256 |
Frequency | 250Hz |
Number of Logic Blocks (LABs) | 2816 |
Termination | SMD/SMT |
RAM Size | 72kB |
