How to disassemble the hash board from Antminer DR5/DR?

Please note: The disassembly method of this article is only applicable to fixed-frequency miners such as DR5 and D5.

Tools required:

  • Cross screwdriver (4 mm diameter)

  • Hexagon screwdriver (3 mm diameter)

  • A pair of protective gloves

1. Disassemble the control board case.

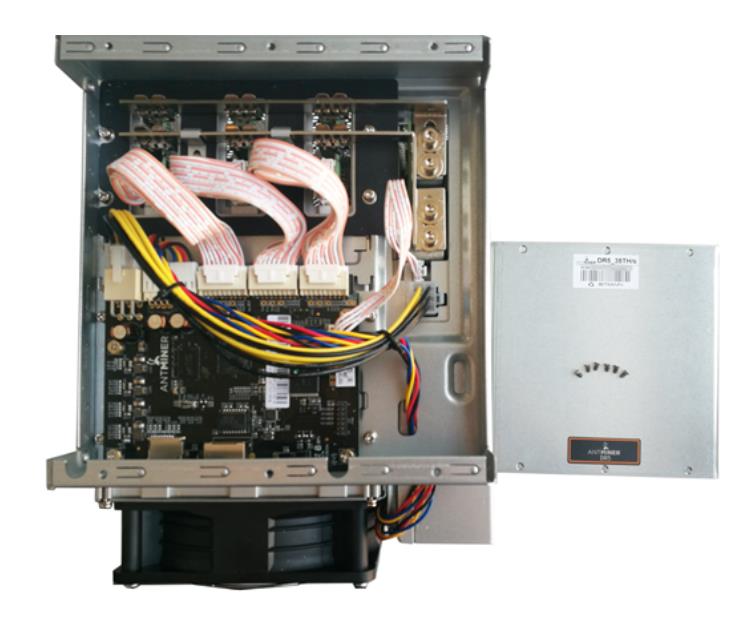

Place the miner as shown in the figure below. Use a cross screwdriver to remove the 6 screws.

Open the case.jpg

control board case.jpg

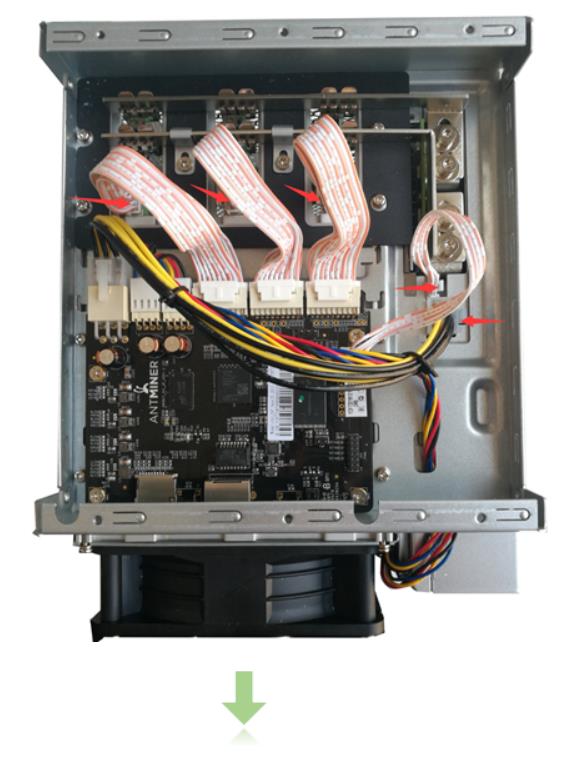

Unplug all cables (miner cable 9*2 19CM). Please refer to the red arrow sign in the image below.

 Unplug the cable.jpg

cable on the control board.jpg

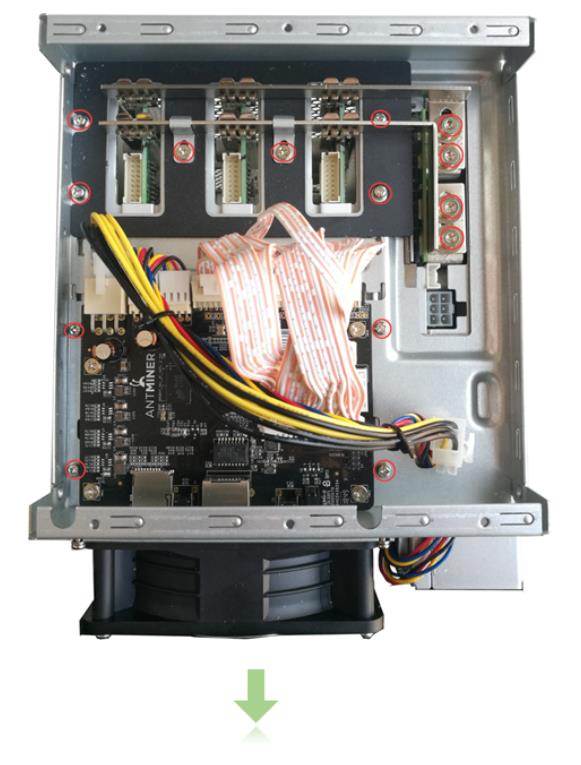

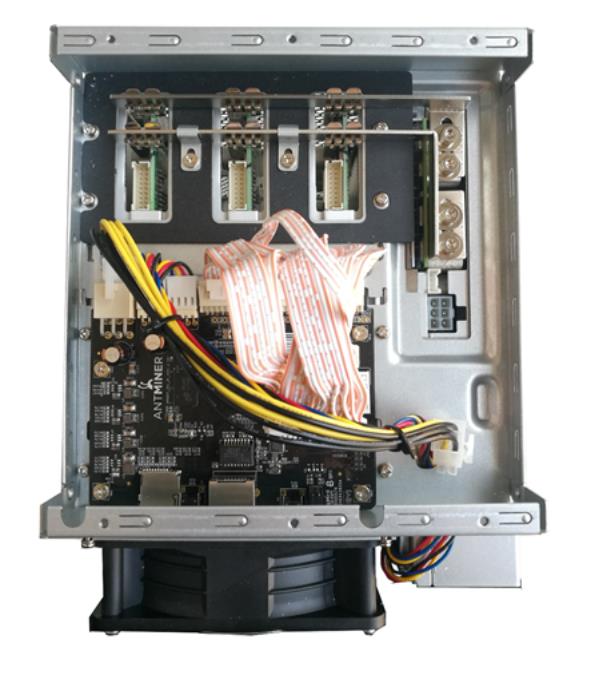

Remove 14 screws.

 14 screws.jpg

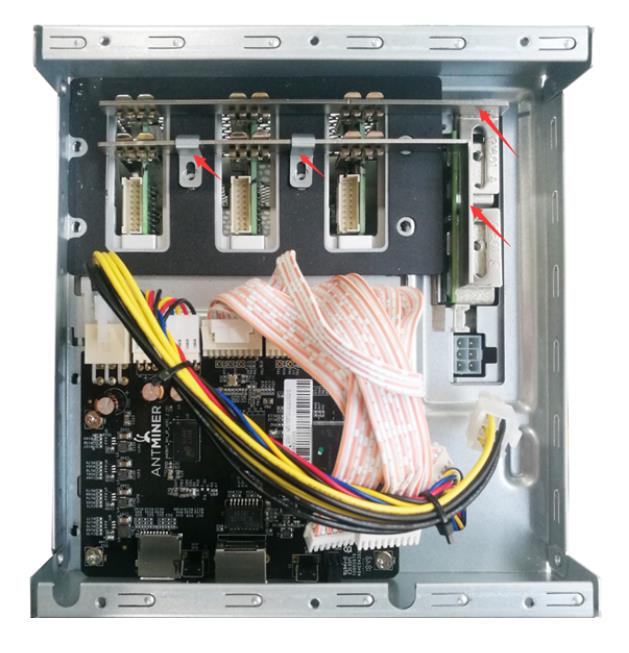

Remove the metal sheet of the power supply.

metal sheet.jpg

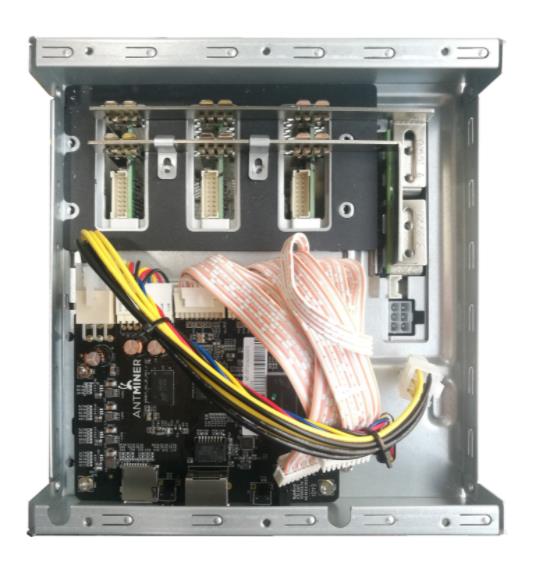

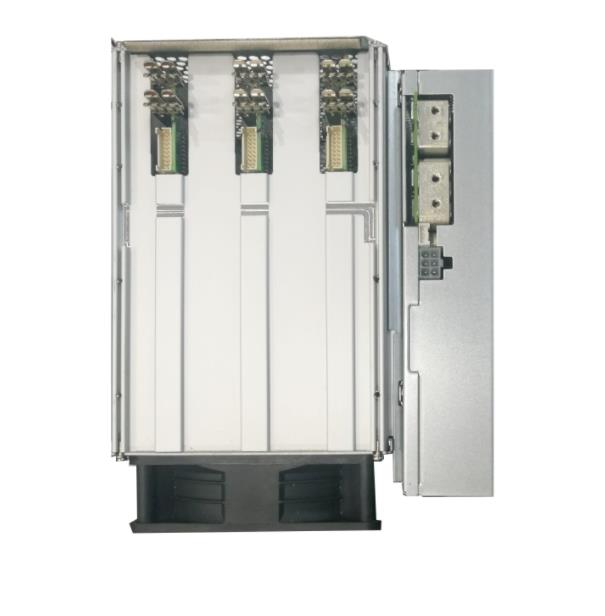

Lift up the control board part and remove it.

control board.jpg

2. Disassemble the hash board.

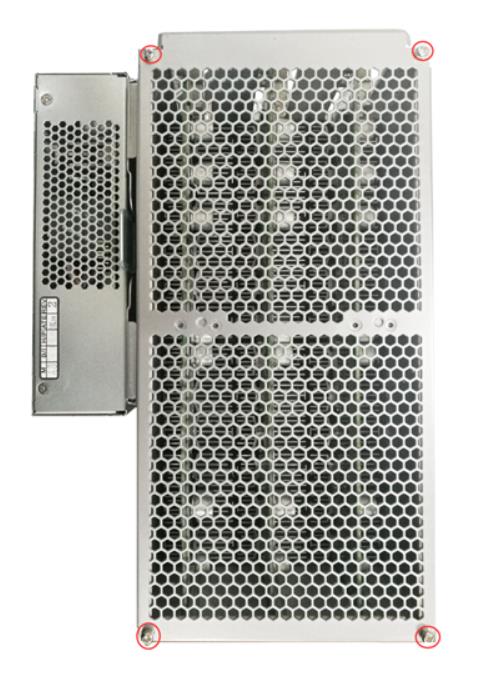

Remove the 4 screws on the metal plate on the back of the miner.

Remove 4 screws.jpg

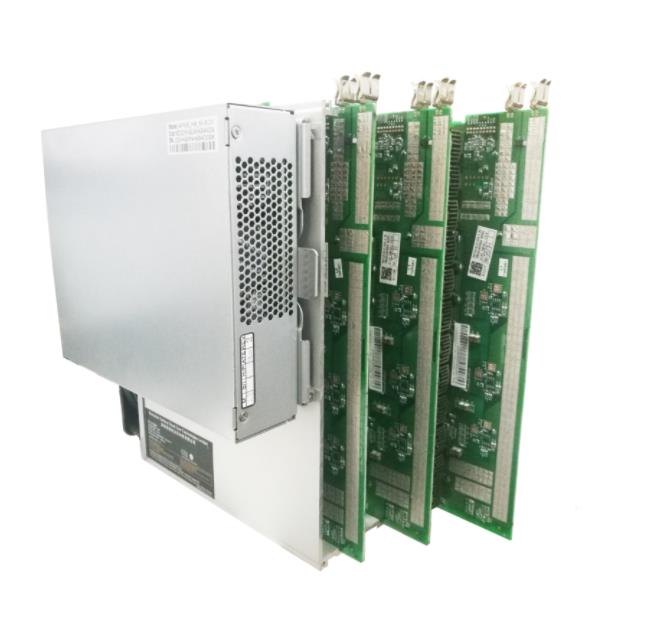

Pull the hash board out.

pull the hashboard out.jpg

If you still do not understand this disassembly method, please contact us for further assistance.
