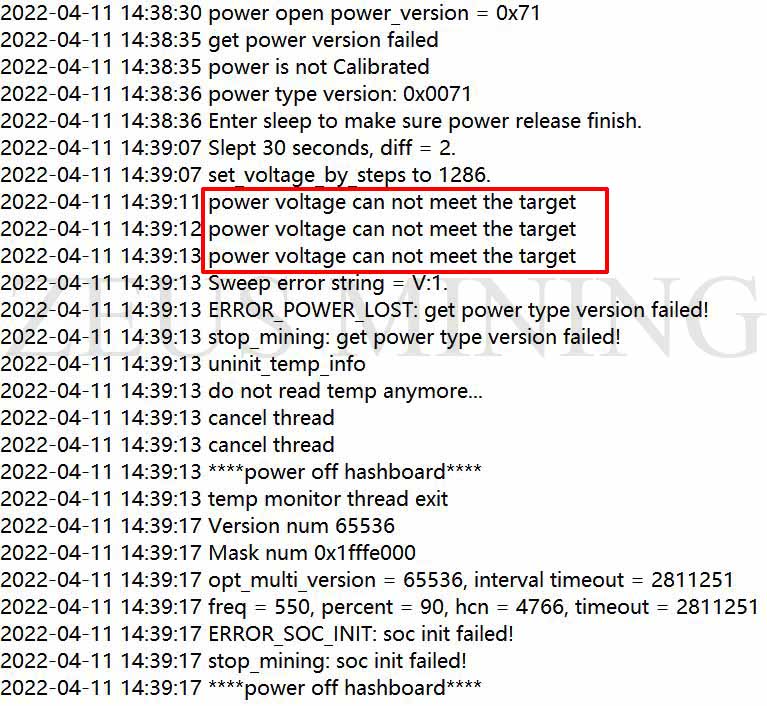

Antminer S19j power voltage can not meet the target - S19j Kernel Log

When the Antminer S19j is running, if the voltage is unstable, the miner's hash board will automatically shut down, which will cause the miner to be unable to mine normally. This article will introduce you to several solutions for this failure.

Troubleshooting:

Method 1: Check whether the Antminer's power cable is loose; it is recommended to re-plug or replace a new power cable.

Method 2: Use the Fluke 15B+ multimeter to check whether the miner's power supply voltage reaches the standard voltage for the normal operation of the Antminer S19J. If it does not reach the standard voltage, it is recommended to replace the new power supply.

>>How to use a multimeter to test the power supply

Method 3: Check whether the miner is properly grounded. If the miner is not grounded correctly, the voltage of the miner will also be unstable.

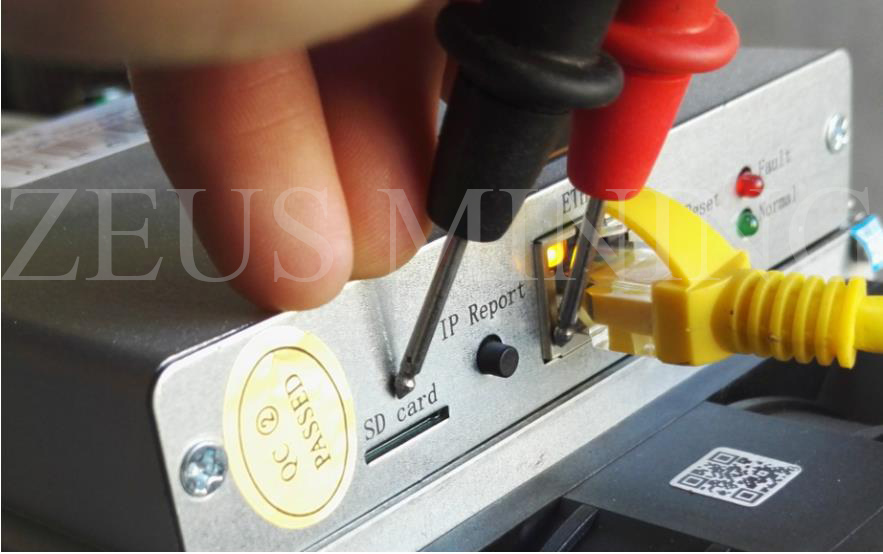

Detection method: Adjust the Fluke 15b+ multimeter to A/C 220V. While the miner is running, place the multimeter's leads on the exposed part of the aluminum body / casing and the miner's metal frame. If it is detected that there is a voltage passing through, it means that the miner is not grounded or the grounding is incorrect.

>>Check if your miner is properly grounded.
