Antminer E9 pro flashing tutorial with SD card

1. Preparing Tools

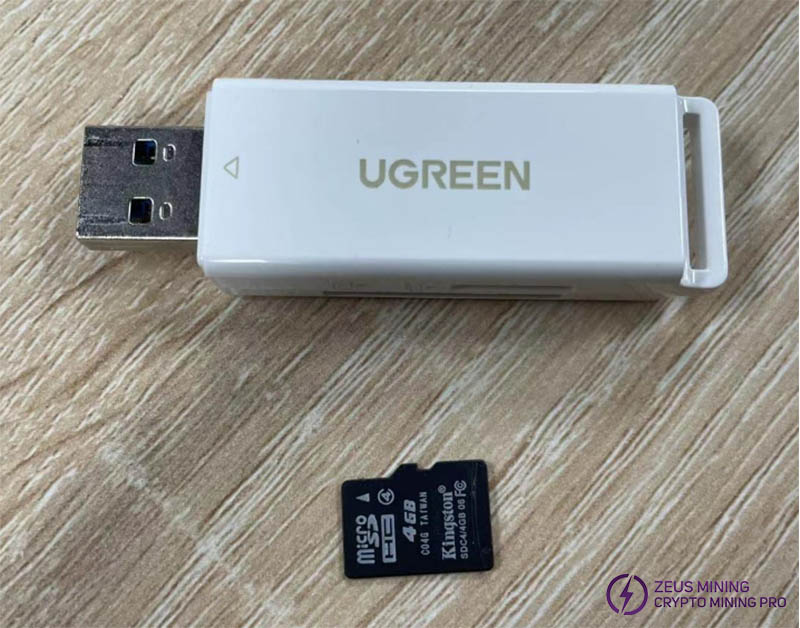

Hardware: computer (WINDOWS system), TF card reader, TF card.

E9 pro flashing tool

Software: decompression tool (WINRAR recommended), E9 Pro card flash firmware. There are two versions of E9 Pro card flash firmware, one is to mine ETC, and the other is to mine ETHW; please choose according to your immediate needs when downloading; we use ETC firmware as an example.

E9 pro flashing file

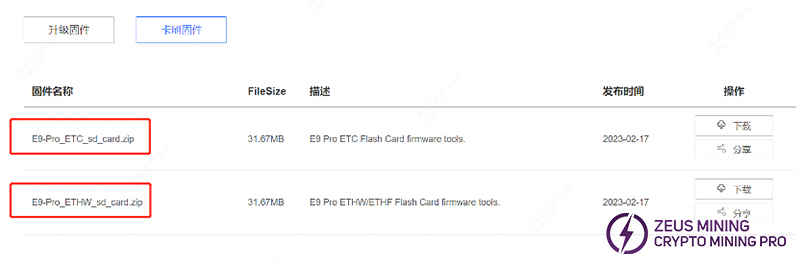

Firmware download link:

https://shop.bitmain.com/zh/support/download?archivesId=007202302081714093149iOlvaA606A1&type=3

E9 pro flashing firmware

2. Making TF card

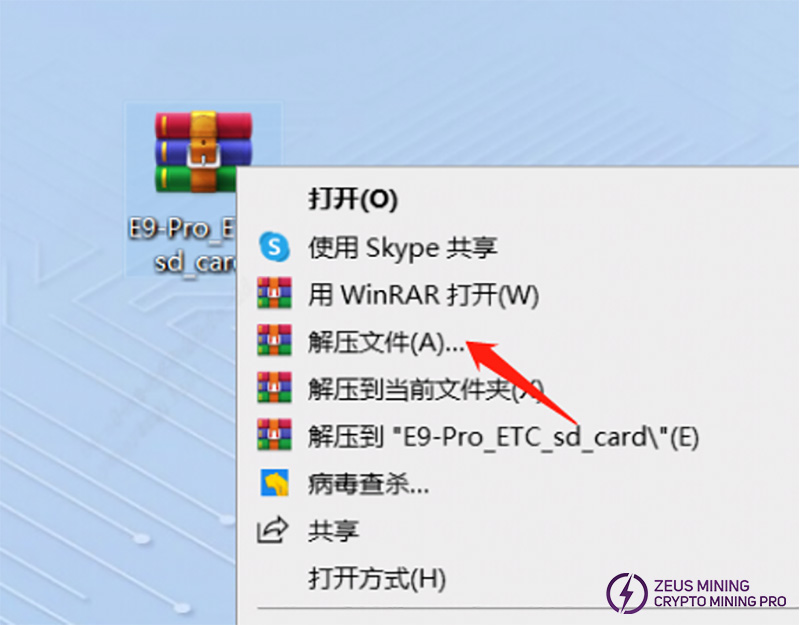

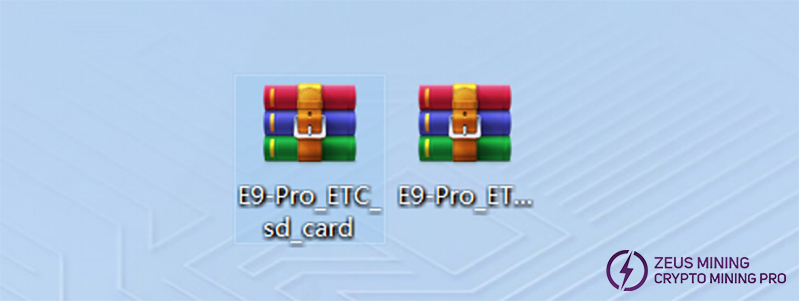

Unzip the downloaded firmware (click on the firmware and select Unzip File).

unzip the E9pro downloaded firmware

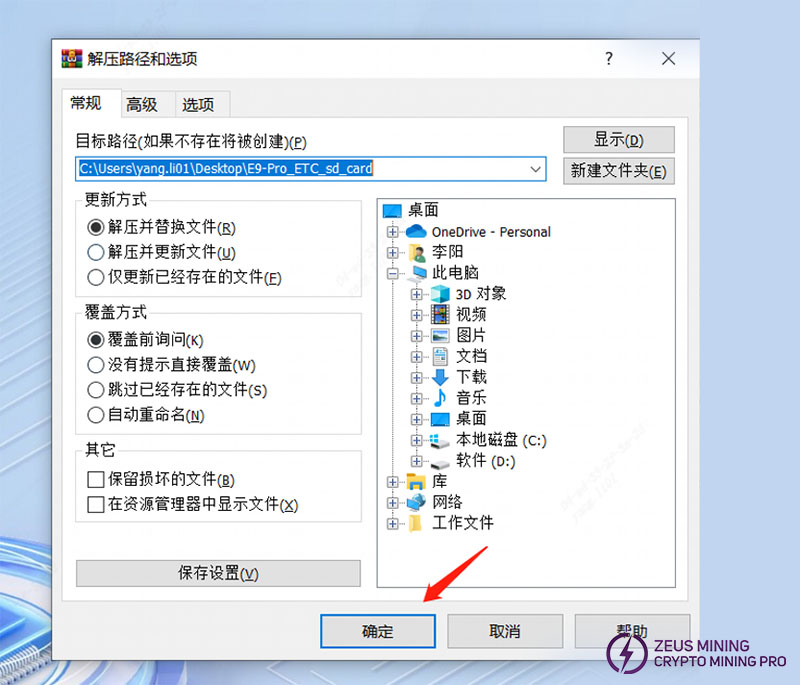

After selecting the unzipped file, a new dialog box will pop up, just click Confirm.

confirm the unzip file

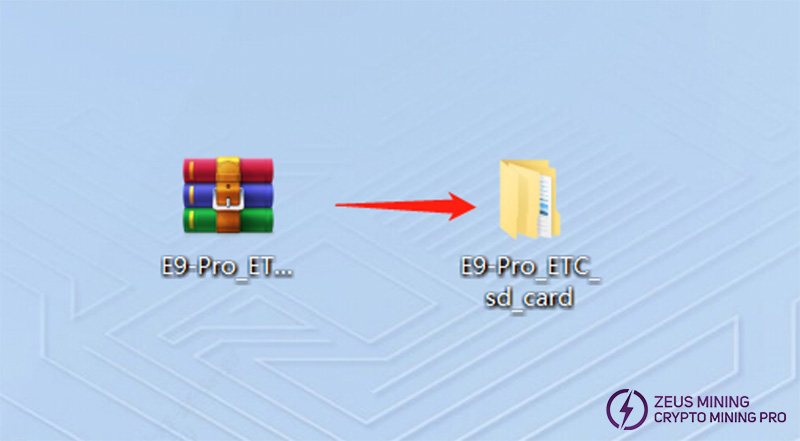

After unzipping, a folder with the same name as the zip package will appear. At this point, the unzipped folder is ready to be used.

E9 pro unzipped folder

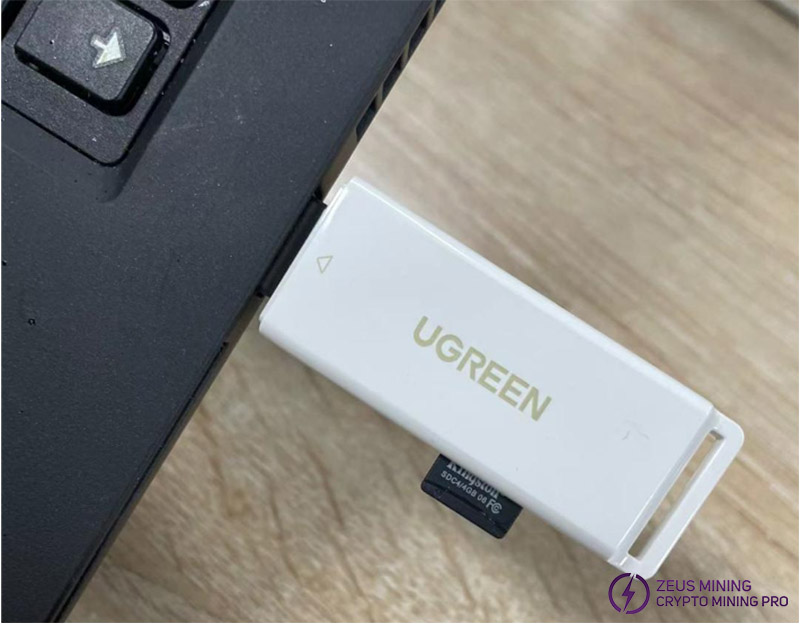

Insert the memory card into the card reader and plug the card reader into the USB port of the computer.

insert firmware to computer

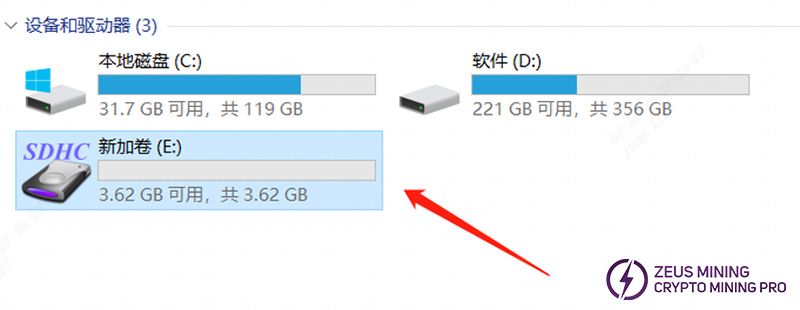

After the card reader is inserted into the computer's USB port, the computer will prompt for a new device and display the disk letter corresponding to this TF card.

the new device

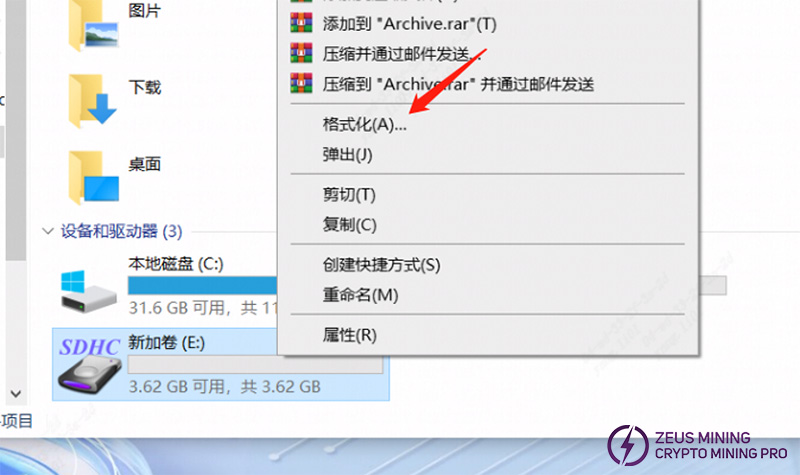

Format the inserted memory card to FAT32 format, find the corresponding disk of the TF card, and click Format.

format the memory card

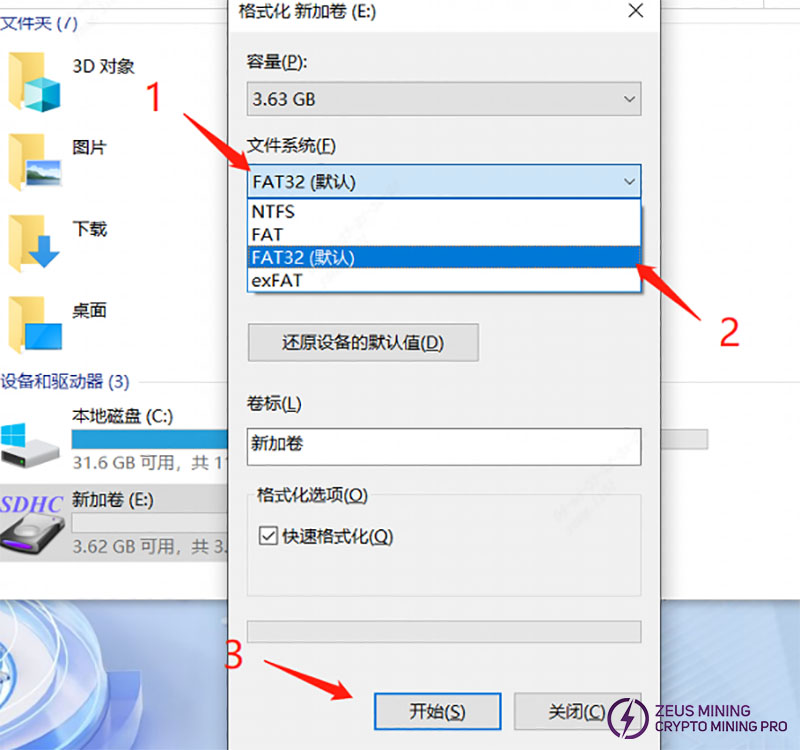

After you click Formatting, a new dialog box will pop up (as shown below). In the new dialog box, click the drop-down menu behind the file system and select FAT32 (the default is FAT32). Once you have selected it, click Start, and it is ready to be formatted.

select FAT32 default

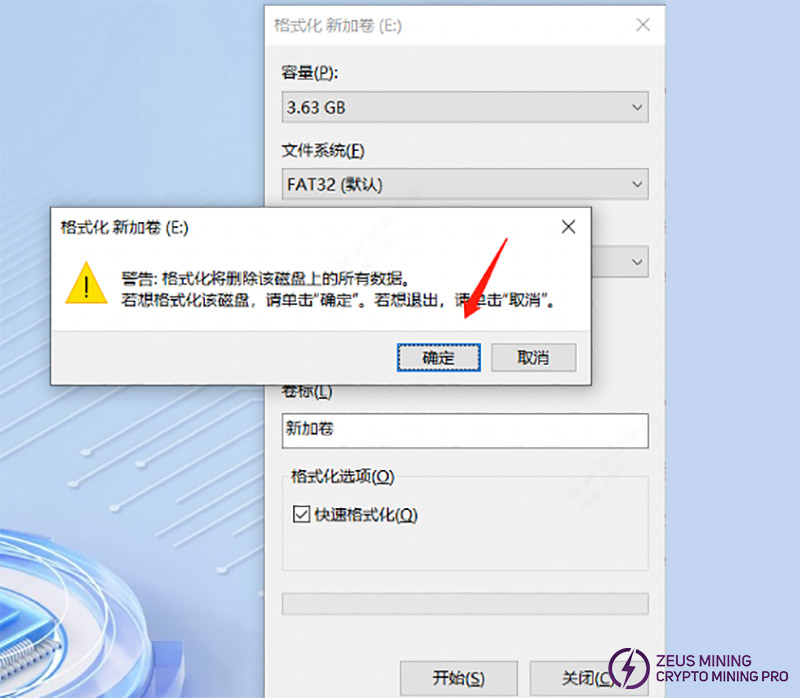

Before the formatting starts, a dialog box will pop up, prompting whether to confirm the deletion of all data. After confirmation, all data will be deleted. If there is essential data, you need to back up the data first; if there is no essential data, tap Confirm directly.

sure to confirm

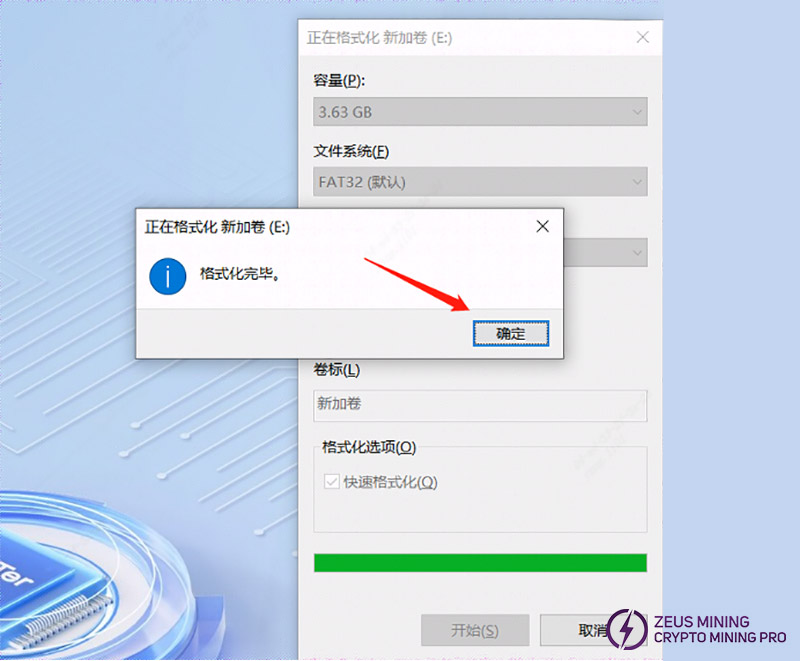

The formatting process is relatively simple; generally, after clicking confirm, there is no response for about 2 seconds; wait for a while (as shown below) the progress bar will go to the head. After it reaches the head, a dialog box will pop up, prompting that the formatting is finished, so click to confirm.

formatting finished

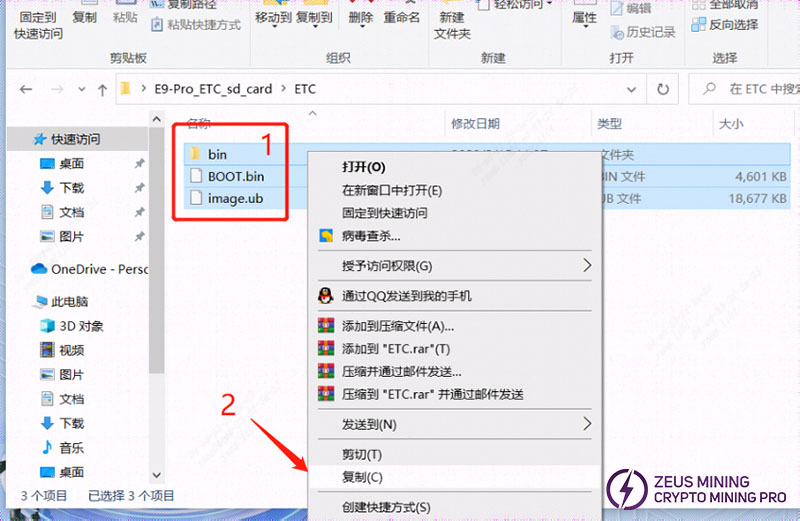

After the formatting is finished, the TF card is ready this time, you can open the folder you just extracted, select all, and copy all the files inside the folder (the files inside the extracted folder are as follows).

copy all files

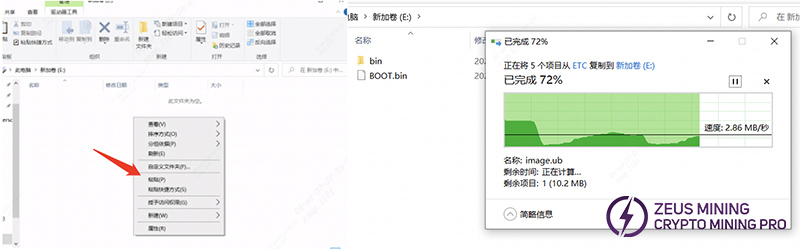

Copy all files in the folder to the following directory of the TF card.

copy all files to TF card

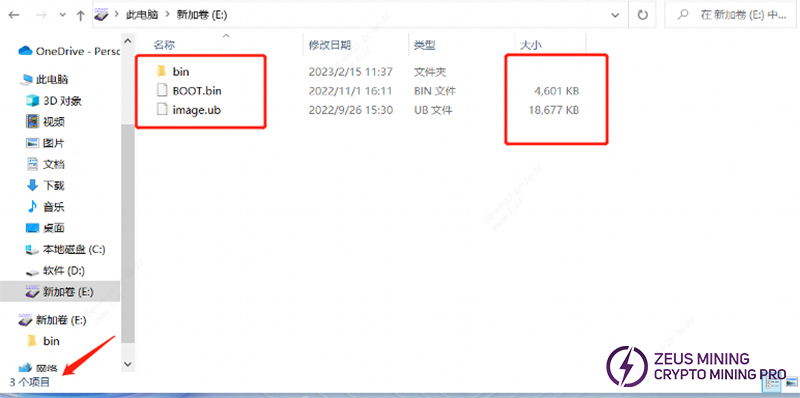

After copying, confirm the contents of the TF card as follows; mainly confirm the file name, file size, and the number of files.

confirm the file

If you confirm the content is correct, the TF card is finished; at this time, you can unplug the TF card from the computer for use.

3. Flashing

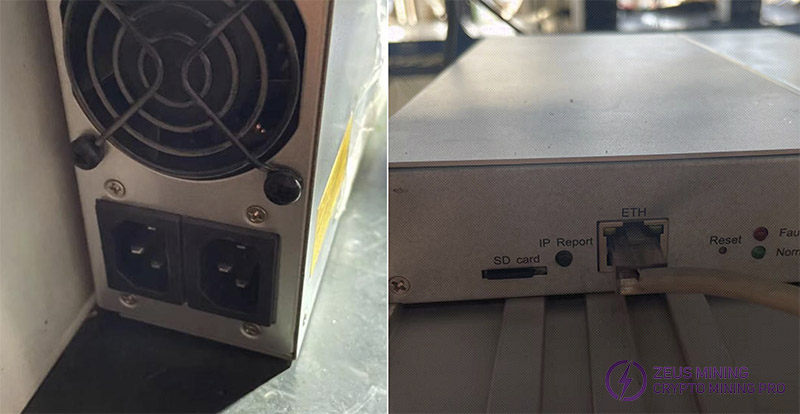

Power off the miner (unplug all power cables) and insert the TF card that has been made.

power off the miner

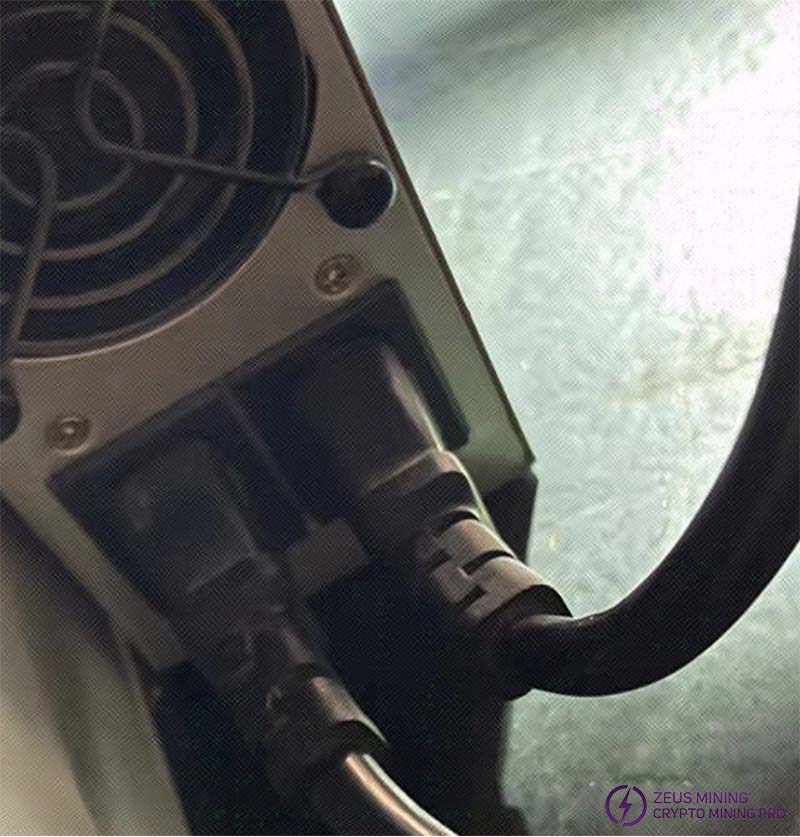

Power on the miner, that is, plug in all power cables.

power on miner

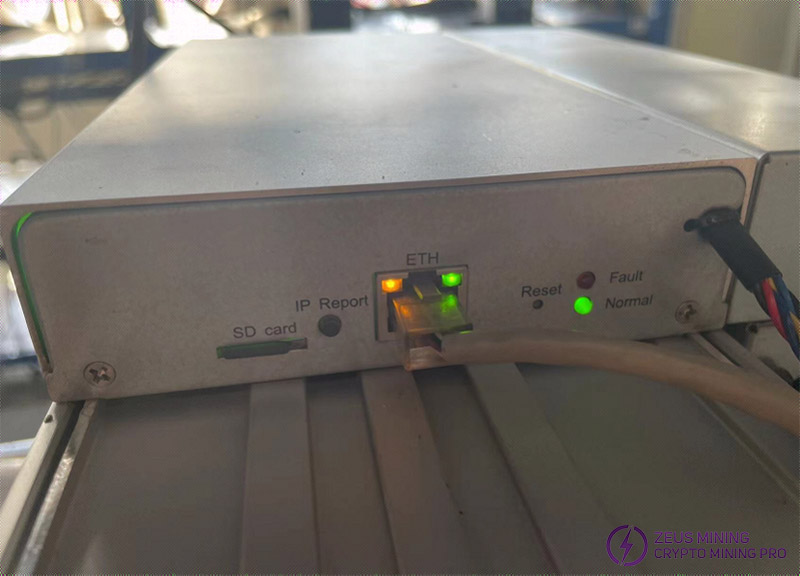

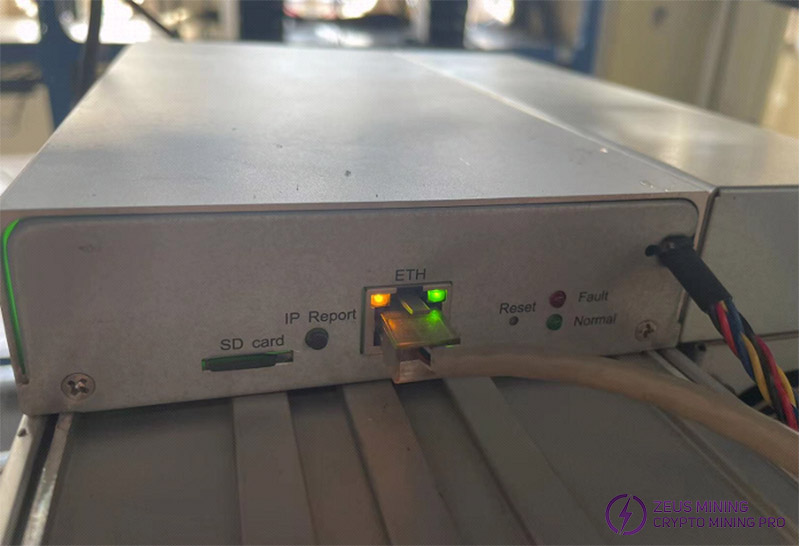

After power-on, the state of the indicator light is: the double-light network port light is always on, the double light is off, and after about 50 seconds, the green light is always on.

indicator light state

The green light is always on, that is, the card swipe is finished.

green light always on

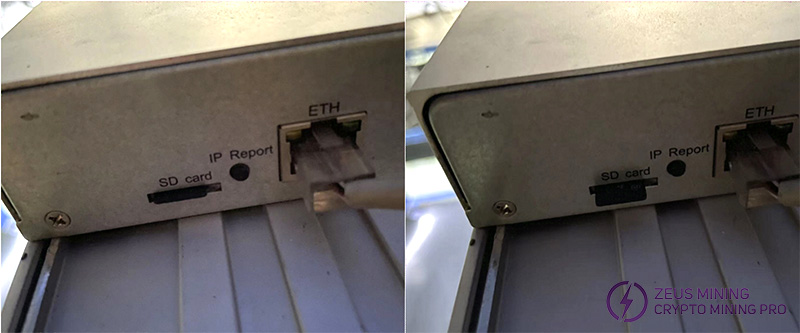

The green light is always on, that is, the card swipe is finished; at this time, you can power off and pull out the TF card (when pulling out the TF card, you need to press the memory card inward first, the memory card will pop out partly, and then pull out).

pull out the TF card

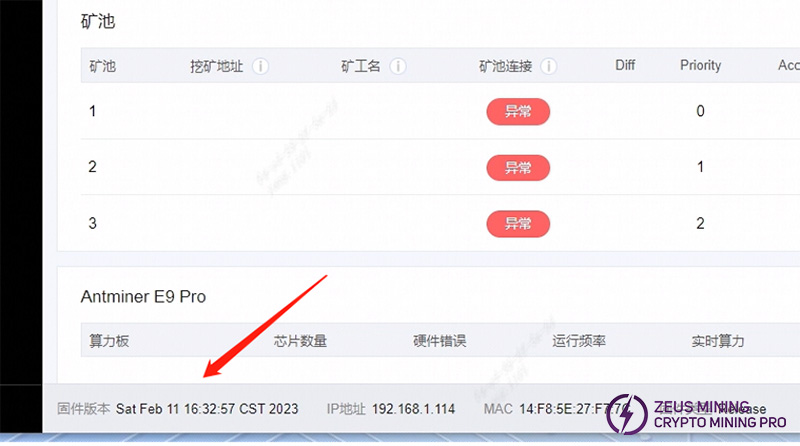

After unplugging the TF card, re-power the control board, boot up the machine, and log in backstage to check whether the current miner version is the card-swiped firmware version.

check the card-swiped firmware version
