Antminer T9+ Hashboard repair guide Manual Downlaod

This version contains the basic circuit schematic diagram and chip signal direction and voltage introduction

We are currently publishing in Chinese, the English version will be released soon

Basic overview:

Antminer T9+ a single hash board uses a total of 54 hash chips, the model is "BM1387"

1 (1)

This hashed version consists of 3 signal chains, each of which has 18 chips

5 test points (CLK-CO-RI-BO-RST) are also used for inspection and maintenance

For notes on test points, see the following article:

Click to view: Instructions for repairing Antminer dashboard test points

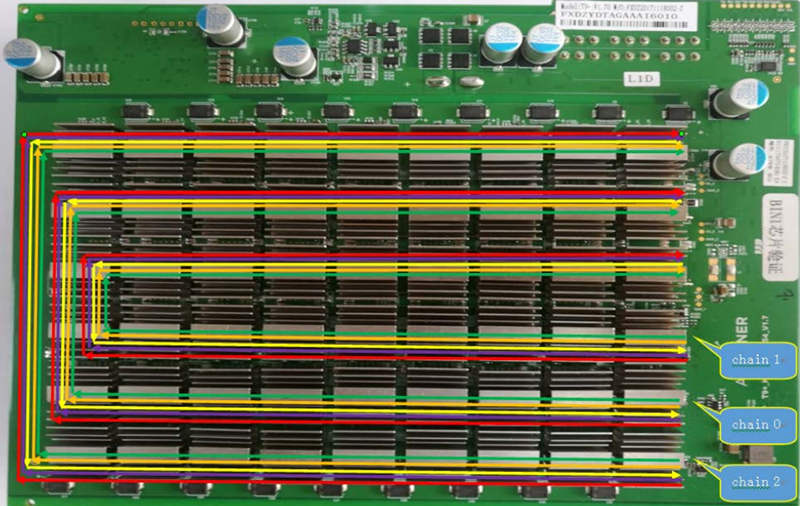

Signal transmission direction:

CLK-CO-BO-RST is sequential transmission, RI is reverse transmission

Green = CLK

Orange = CO

Yellow = RI

Purple = BO

Red = RST

1 (4)

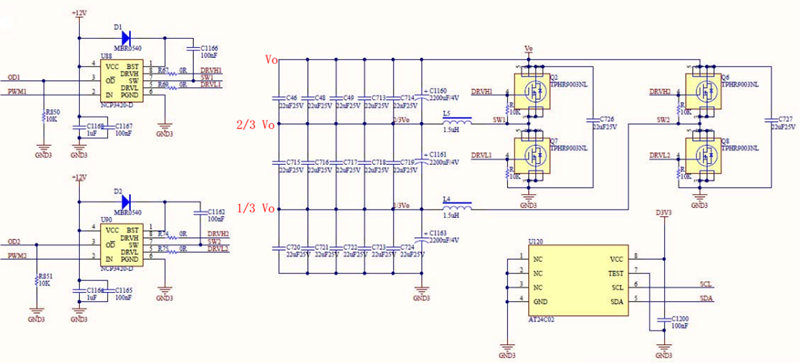

In this version, we provide more detailed circuit schematics:

1 (3)

Antminer T9+ hash board repair guide download address:

Click to download: Antminer T9 + Hash Board Repair Guide

You can refer to the repair principle of Antminer S9:

Click to watch: Antminer S9 Hashboard repair video tutorial
