Mechanic UVH900-LY UV curing solder mask ink

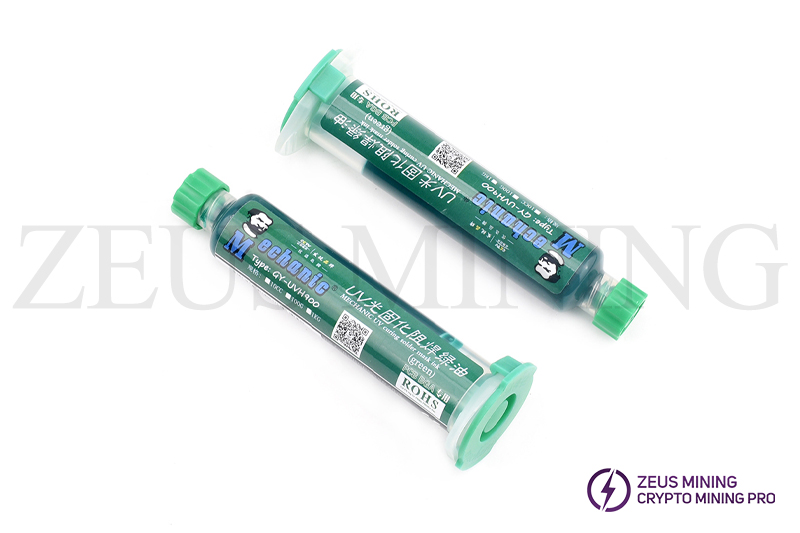

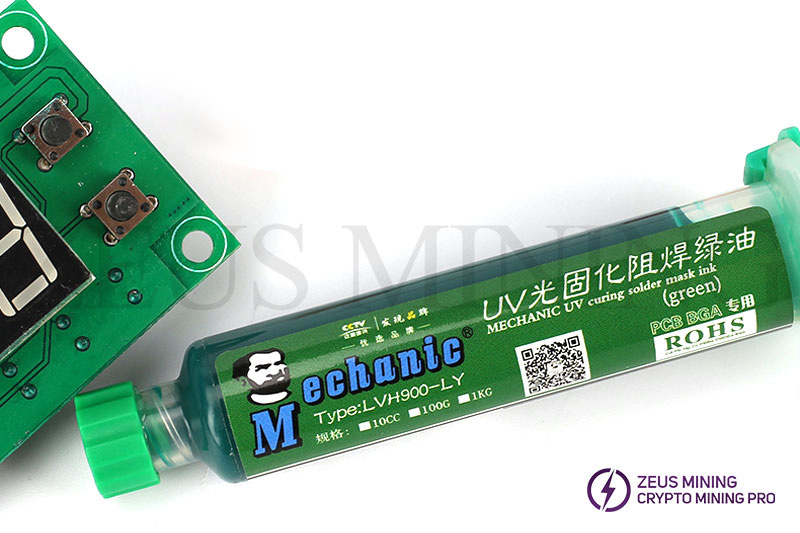

Mechanic Advanced 10ML Green UV Curing Solder Mask Ink UVH900-LY

UV curing repair solder masks air-drying green oil is used to protect the miner's hash board traces from corrosion and moisture. The glue is a neutral glue, resistant to acid and alkali, has no corrosive effect on all materials (metals such as gold, copper phosphorus, bronze and other materials and silica gel, rubber and other materials are not oxidized), does not damage components, does not corrode parts, and is green Environmental friendly. The temperature resistance of solder resists of different components is also different. Generally, it can reach -40°C~500°C, and the maximum can reach more than 1,000 degrees. It is widely used in all kinds of products that need temporary anti-soldering, protection and covering effect. It can effectively help miners improve mining efficiency and prolong the life of miner data circuit boards.

Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.

Instructions for use:

Note: This product is sensitive to ultraviolet rays and needs to be strictly protected from light.

1) Prepare the tool (brush), material;

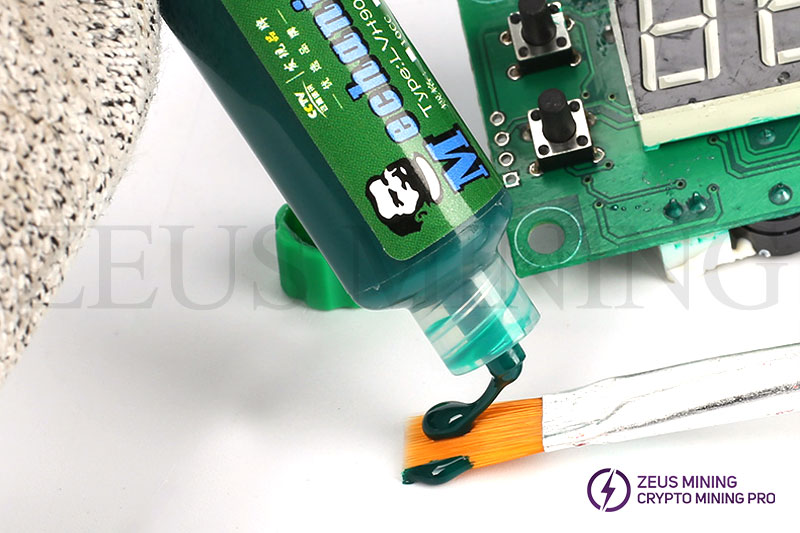

2) Squeeze the UV curing oil a little on the brush;

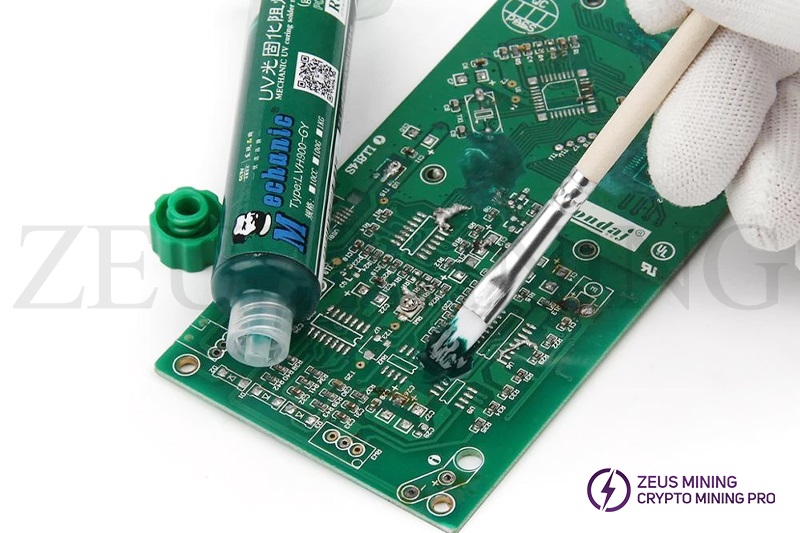

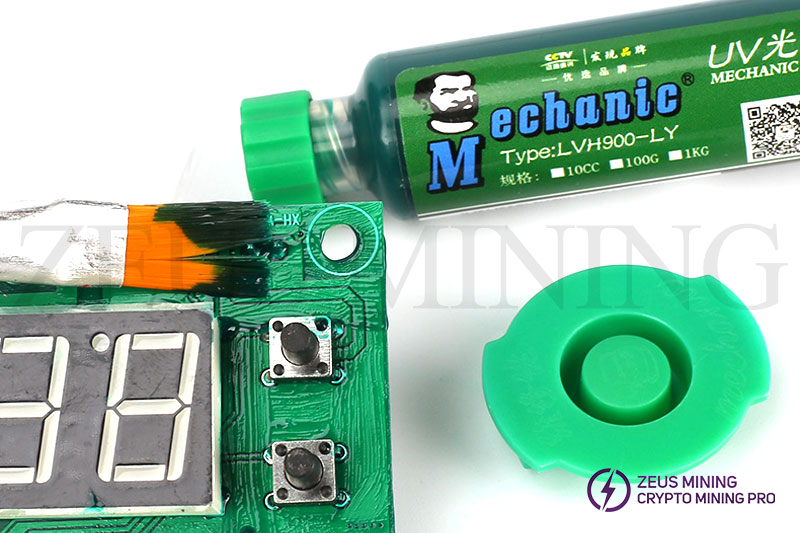

3) Evenly spread on the PCB board with anti-welding, guard, insulation, and other functions prevent physical disconnection of conductor circuits;

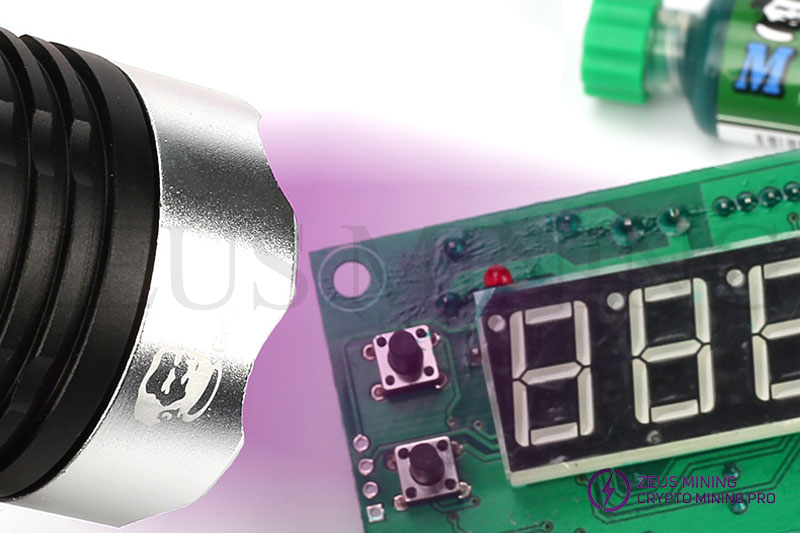

4) Irradiated with ultraviolet light for a few seconds to tens of seconds, and shake the PCB board to observe that the ink is not flowing, OK, plate making, it is necessary to use tools such as developer powder;

Application:

Insulate printed circuit boards to prevent short circuits and arcing;

For PCB repair after soldering and rework;

Shield jumper after micro-soldering work;

For protection on mobile phone logic boards.
