Unit Price: | $ 146 |

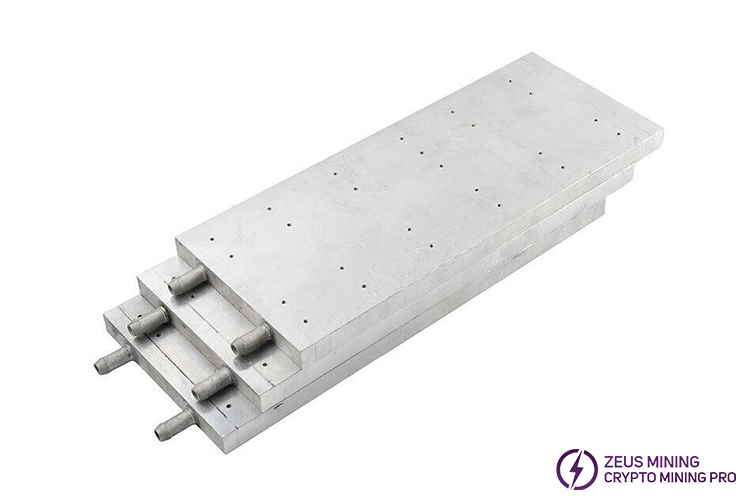

This water cooling board is specially designed for the cooling water system of Bitcoin M30S miners.
One of the most important things to do to improve mining performance is to keep it cool. Our aluminum cooling plates are specially designed for the cooling system of bitcoin mining. It can modify most of the miners on the market, especially suitable for Whatsminer M30S miners. The high performance of this cooling plate has been widely recognized.
Product parameters:
Name: WhatsMiner M30S Water Cooling Kit
Plate parameters:
Material: Aluminum
Color: Silver
Interface type: Outer diameter 9.8mm

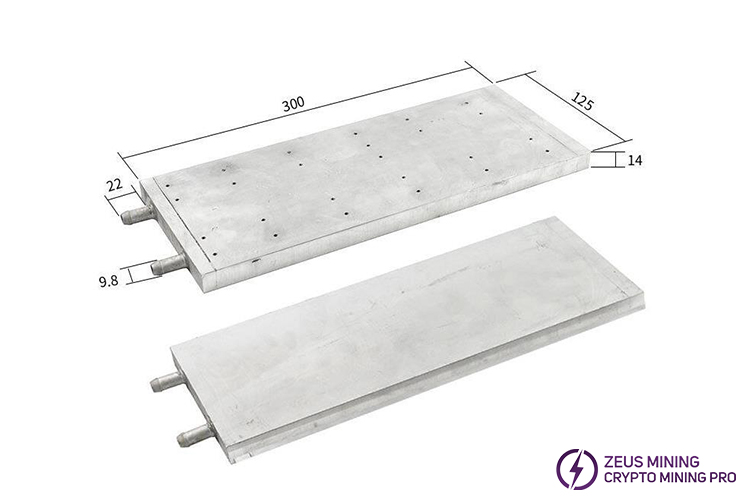

Size: 300×125×14mm (Without water nozzle)
Production process One piece welding
Apply to: Whatsminer M30S

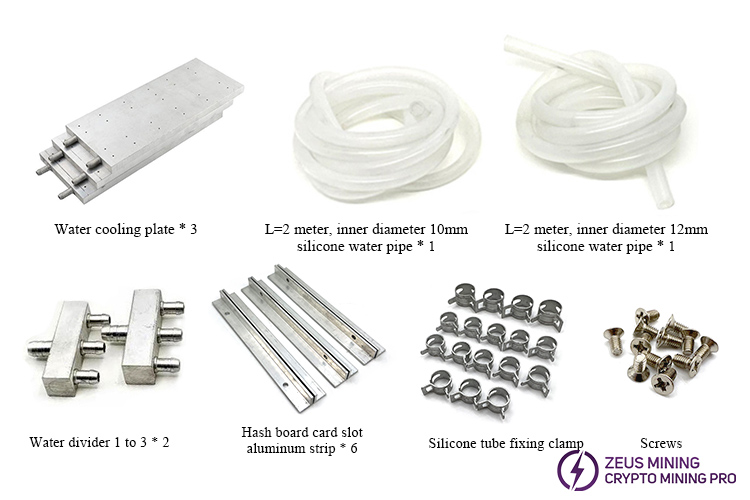

M20S 68T water cooling module plate list:
1 unit = 3 pcs
Water cooling plate * 3
ASIC miner water cooling liquid shunt multi 1 to 3 * 2
Hash board card slot aluminum strip * 6
Silicone water pipe * 2m
Main water pipe * 2m
Clamps and screws
WhatsMiner M30S hash board water cooling board modification steps:
1. Remove the heat sink screws of the hash board. Note: The screws in the middle of the heat sink must be removed together.
2. Use a circuit board cleaning solution and a dust-removing cloth to clean the heat-conducting stickers and thermal-conducting silicone grease on the front and back of the hash board, and be careful not to damage the components of the hash board when cleaning.
3. Evenly coat the smooth side of the water cooling plate with thermal conductive silicone grease.
4. Install the screws through the holes, and then install the hash board according to the position of the screw holes.
5. Install heat conduction stickers on the chip position of the hash board.
6. Install another water cooling plate, and install and fasten all the screws.
7. Refit the other two hash boards in the same way, and then put them back into the case. Note: A spacer can be installed at the contact position between the hash board and the casing to ensure that the hash board components will not be damaged.
8. Install the power supply and tighten the screws.
9. On the side of the water nozzle of the water cooling plate, use suitable screws to fix the baffle at the upper and lower ends.
10. Install the water pipe, cut the appropriate length, and tighten the water pipe joint. Instructions for the unconnected joints: the upper part is the water outlet, and the lower part is the water inlet.
11. Connect the remaining water pipes and water separators.
12. Finally, connect to the external radiator.
