Unit Price: | $ 320 |
Avalon universal fixture without a screen is a test fixture without a screen. Its model is A320X. By connecting it to a computer, you can directly view the failure results of the hash board. It is suitable for the Avalon A10 series, A11 series, and A12 series hash boards. The test fixture is easy to operate and precisely positioned, and it can quickly find the location of the faulty ASIC chip. In addition, it is very convenient to use and affordable. Our products are tested by everyone before delivery and can be used directly after receiving the goods.

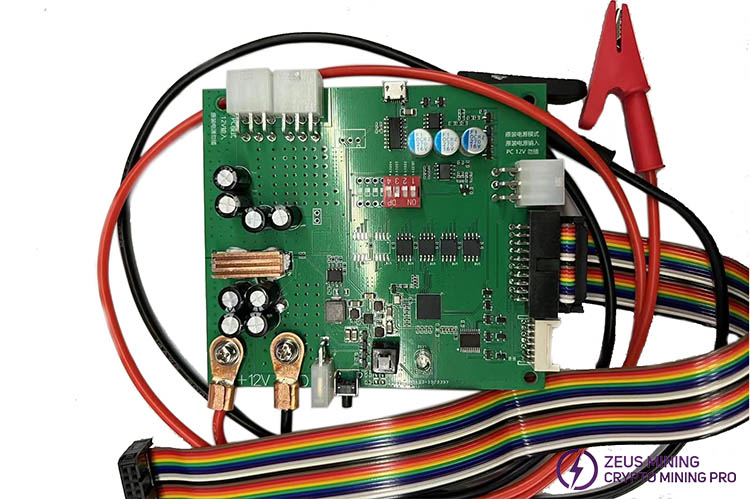

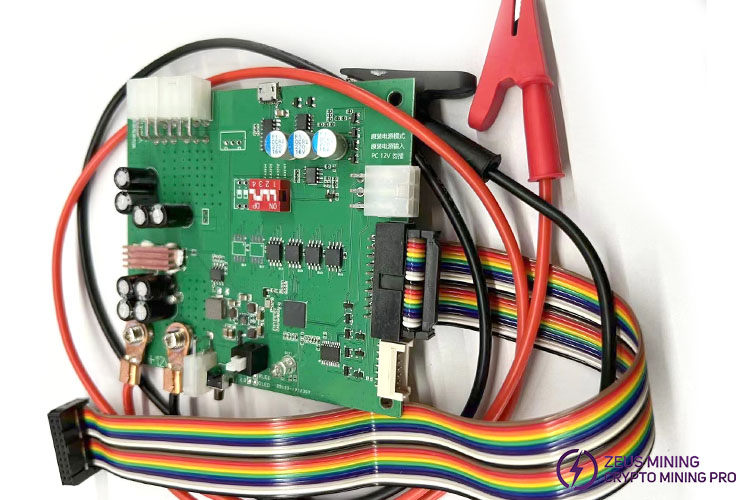

The A320X fixture includes the following accessories:
1: Host 1 set
2: 1 foot switch
3: 2*10 cable: 1 piece
4:2*7 flex cable: 1 piece
5: USB cable: 1 piece
6: Hash board power cord: positive and negative 1 set.

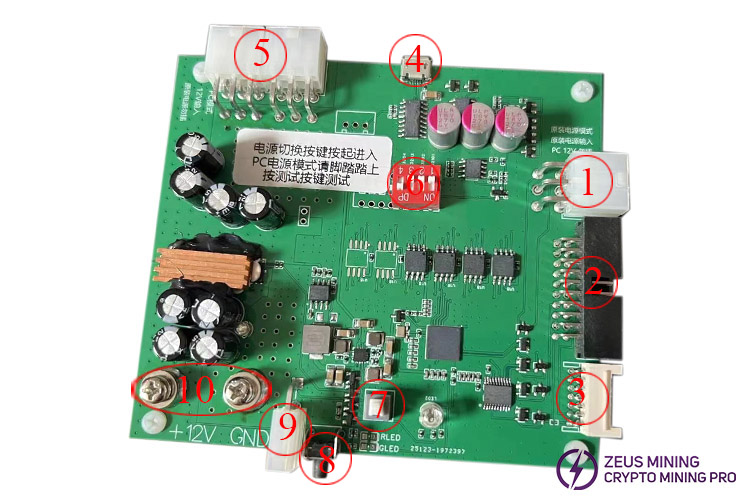

A320X fixture corresponding function description:
1: Original power supply interface (Note! This interface cannot be connected to a PC power supply or any 12VDC power supply).
2: 20P test cable interface.
3: 14P test cable interface.
4: MicroUSB interface, connect to a computer to display test print data.
5: 12VDC power supply (please use a power supply greater than 60A, do not plug in the original power supply).
6: The corresponding switch for program switching, the switch fluctuates to NO to open the chip program of the corresponding model, A3201, A2302, A3203, and A3204; the program switch can only fluctuate to NO in one gear position; please dial back other program switches when testing is required.
7: Power switch, respectively PC power and original power switch.
8: Test button; press this button to test the rack to enter the test mode.
9: Turn on the 12V power supply, plug in the pedal to power it on, and power on the hash board for testing.
10: Power output, connect to the positive and negative poles of the hash board (note: do not connect the reverse power line).
