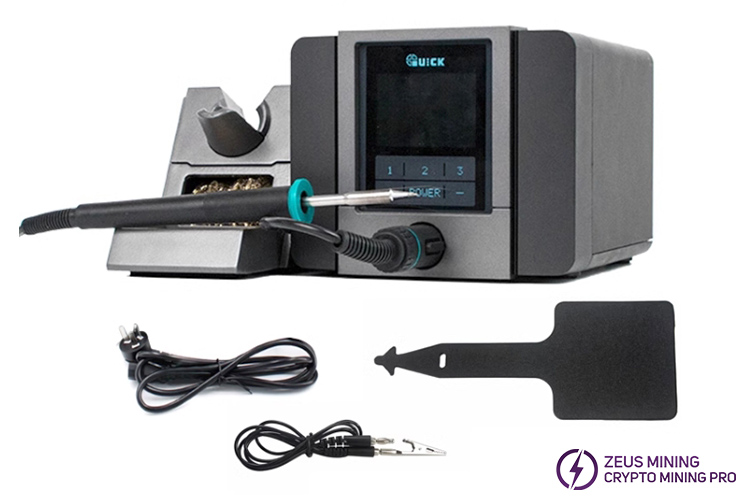

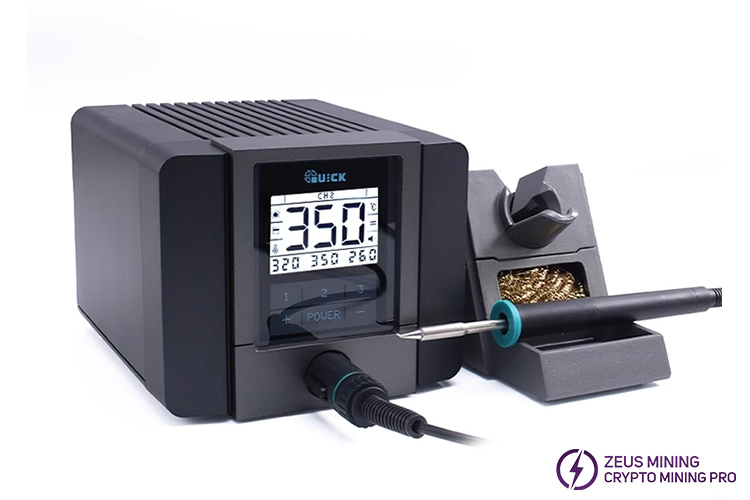

Quick TS1200A 120W soldering iron station

QUICK TS1200A intelligent lead-free soldering station soldering iron, 120W anti-static high-power soldering iron soldering station, adopts full touch panel, plug-in iron head, 8 seconds rapid heating, built-in sensor, precise temperature control, automatic sleep, all-metal soldering iron Base, safe and secure to use.

Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

To get a clearer understanding of how to use the product, please check out the article: How to use TS1200A 120W soldering iron station to repair ASIC miner?

Product parameters:

Brand: QUICK

Product name: Intelligent lead-free desoldering station

Model: QUICKTS1200A

Power: 120W

Voltage: 110V/220V AC

Temperature range: 200-420°C

Temperature stability: ±2°C

Welding tip to ground resistance: <2Ω

Welding tip-to-ground potential: <2mV

Handle model: TSS30B

Welding tip model: TSS02

Soldering tip/heating core: integrated

Product size: 137*168*114mm

Weight: about 2.8kg

Product features:

1) Speedy temperature recovery, and automatic sleep

Equipped with a sensor placed in front of the top of the heating core, it recovers temperature very quickly, accurately controls the temperature, and automatically sleeps, and the sleep interval can be set at will;

2) Intelligent temperature control made of pure copper

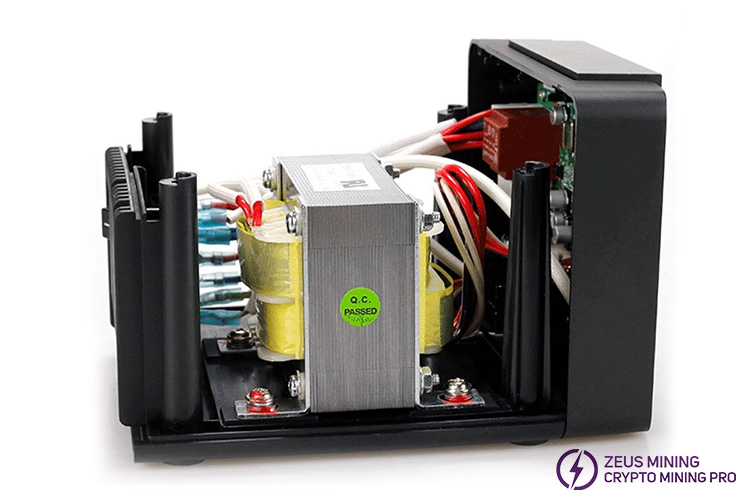

Built-in enlarged pure copper transformer, with enough power of 120W to work continuously, heats up quickly, and the temperature is stable. There is a fuse on the power switch, which is safer;

3) Intelligent digital display, preset channels

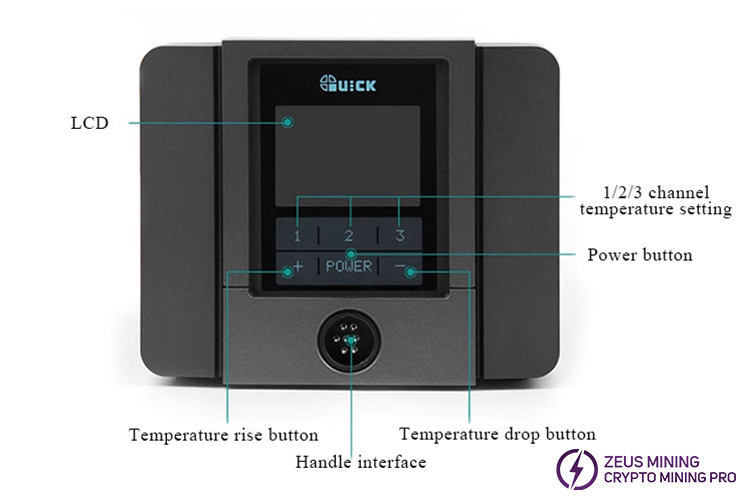

LCD digital display with multiple function displays, real-time display of temperature/adjust working mode fault code error/password error/preset three temperature channels CH1/CH2/CH3.

Product details:

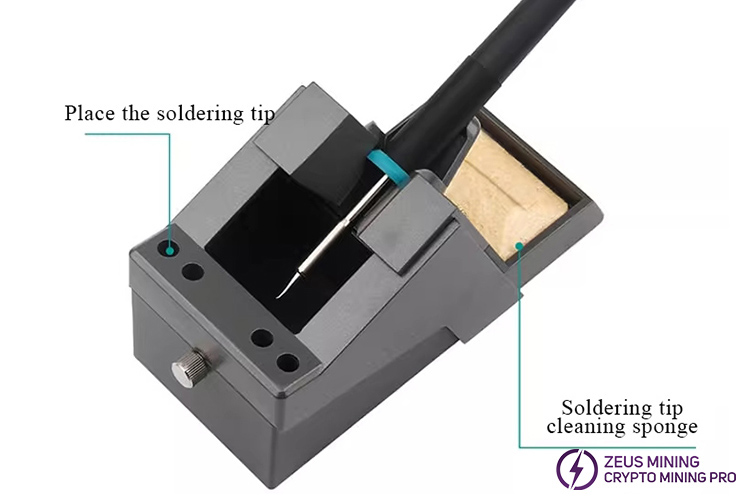

1) All-metal soldering iron holder, high-temperature resistance and durability, free soldering iron tip cleaning sponge/steel ball;

2) Special metal heating core, not fragile, heats up quickly, has high heating efficiency and long service life;

3) The welding tip is easy to replace, has strong versatility, can be replaced and used immediately, and has a built-in metal heating core;

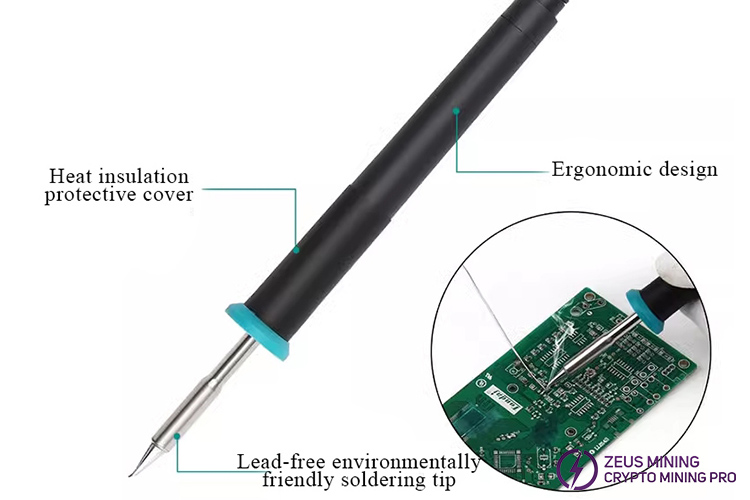

4) The overall length of the welding pen is shortened, which is ergonomic, comfortable to use, and suitable for precision welding;

5) The power plug adopts a three-pin design, has a boat-shaped switch, and is equipped with a fuse, which is safer;

6) There is a circular air outlet design on the back of the main unit, which dissipates heat quickly and is conducive to the normal operation of the machine;

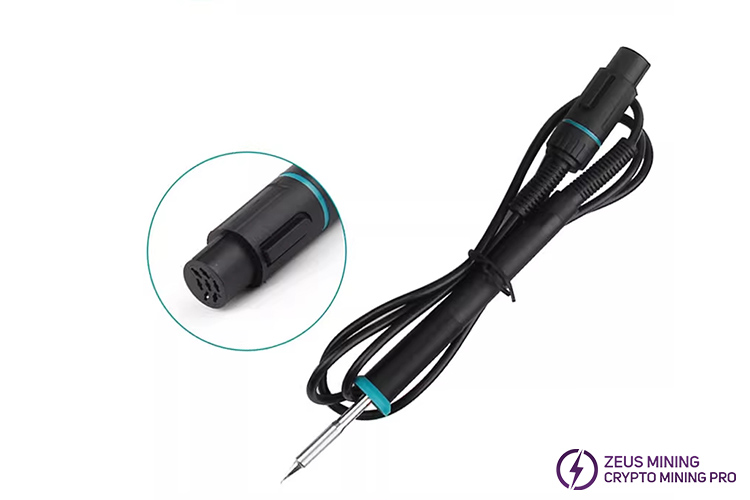

7) The soldering iron handle interface has a plug-in design and a buckle design that will not fall off and is safer;

8) The standard high-temperature anti-scalding leather can wrap the sleeve and replace the soldering iron tip to prevent burns under high-temperature conditions.
