NCP1397AG

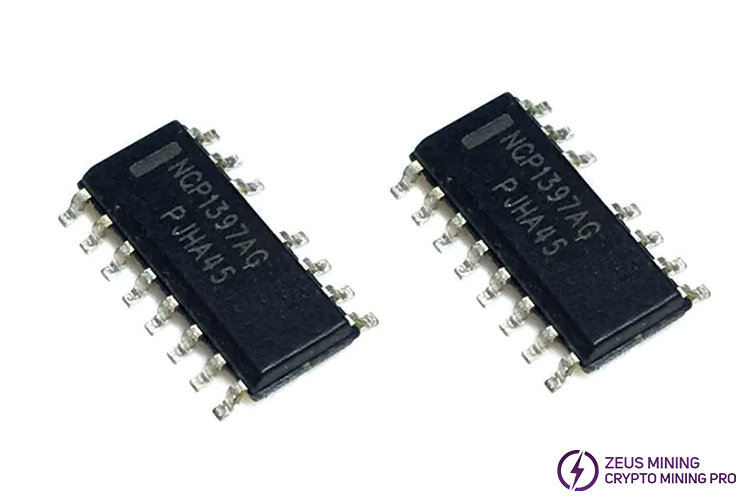

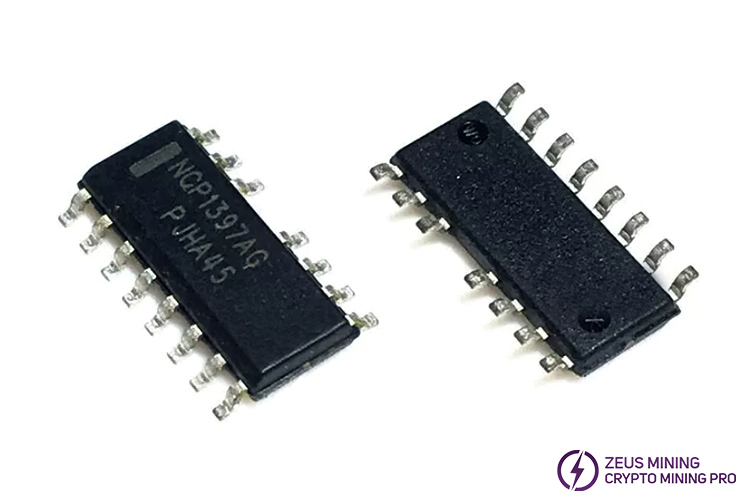

NCP1397AG is a high-performance controller on the loveminer A1 PSU TT240015P-YTJ that can be used in half-bridge resonant topologies such as series, parallel, and LLC resonant converters. It integrates a 600V gate driver, simplifying layout and reducing external component count. Its controller features include automatic recovery or fault latch, brown−out, optocoupler open, soft-start, and short-circuit protection.

Feature:

• High-frequency operation from 50kHz to 500kHz

• 600V high voltage floating driver

• Adjustable minimum switching frequency with ±3% accuracy

• Dead time adjustable from 100ns to 2ms

• Start sequence via externally adjustable soft start

• Latching input for severe fault conditions such as over-temperature or OVP

• Timer-based input with automatic recovery operation in response to delayed events

• Latching overcurrent protection

• Disable inputs for immediate event response or simple on/off control

• VCC operating voltage up to 20V

• Low startup current of 300mA

• 1A/0.5A peak sink/source drive capability

• Common collector optocoupler connection makes ORing easier

• Optional common-emitter optical coupler connection

• Internal temperature shutdown

Application:

• Flat panel display power converter

• Industrial and medical power supplies

• Offline battery charger
