Unit Price: | $ 0.4 |

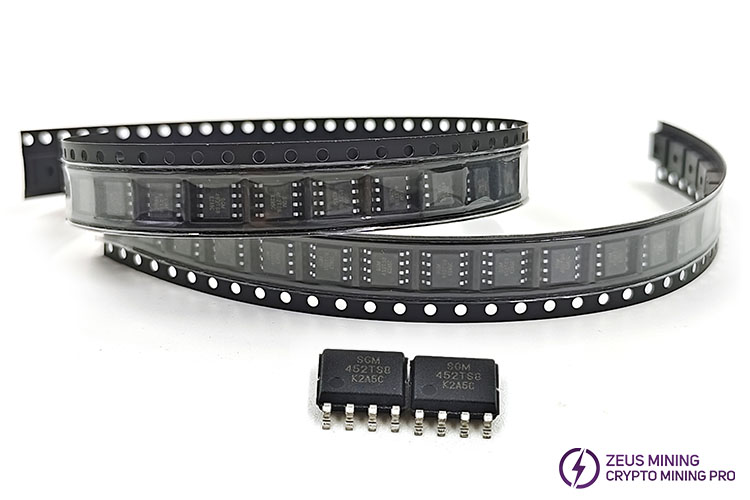

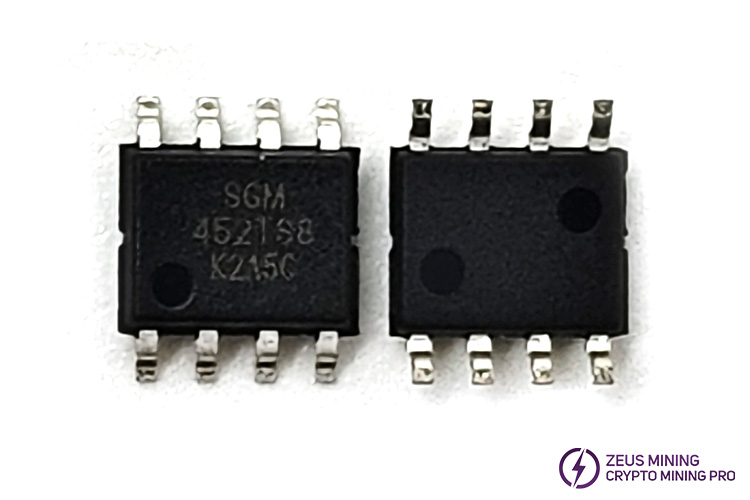

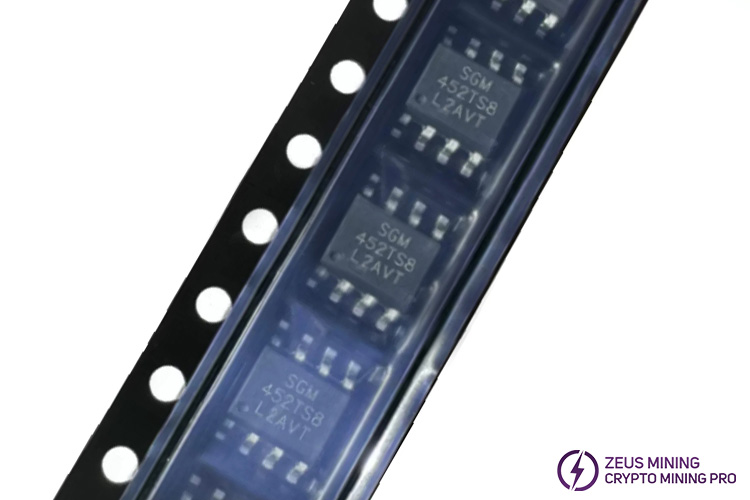

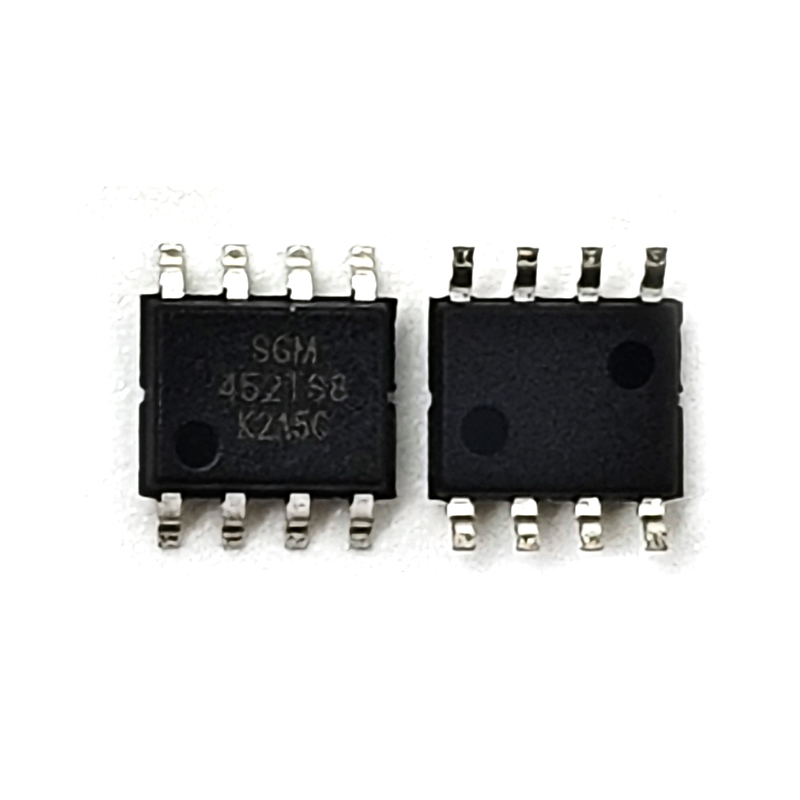

SGM452 SGM452TS8G/TR temperature sensor chip for hash board repair
The SGM452TS8 is a digital temperature sensor located on the ASIC miner hash board that detects the hash board's operating temperature. It integrates a sigma-delta analog-to-digital converter (ADC) and an I2C interface with an accuracy of ±1°C in the range of -20°C to +85°C and ±1.2°C in the range of -55°C to +125°C. The device operates from a supply voltage of 2.7V to 5.5V. This temperature sensor's wide temperature, power range, and I2C interface make the SGM452TS8 an ideal choice for many applications where thermal management is critical to performance. It is packaged in a green SOIC-8 package and can operate in an ambient temperature range of -55°C to +125°C.
Features:
• No external components required
• Minimize power consumption with shutdown mode
• Power-on defaults allow standalone operation as a thermostat
• Supply voltage range: 2.7V to 5.5V
• Supports 1.8V I2C bus voltage with 3.3V supply
• Low quiescent current: 49μA (typical)
• Shutdown mode current: 0.4μA (typical)
• Temperature accuracy:
-20℃ to +85℃: ±1℃ (max)
-55℃ to +125℃: ±1.2℃ (max)
• Operating temperature range: -55℃ to +125℃
Applications:
• ASIC miner hash board
• Thermal management in computing systems
• Telecommunications infrastructure equipment
• Environmental monitoring
