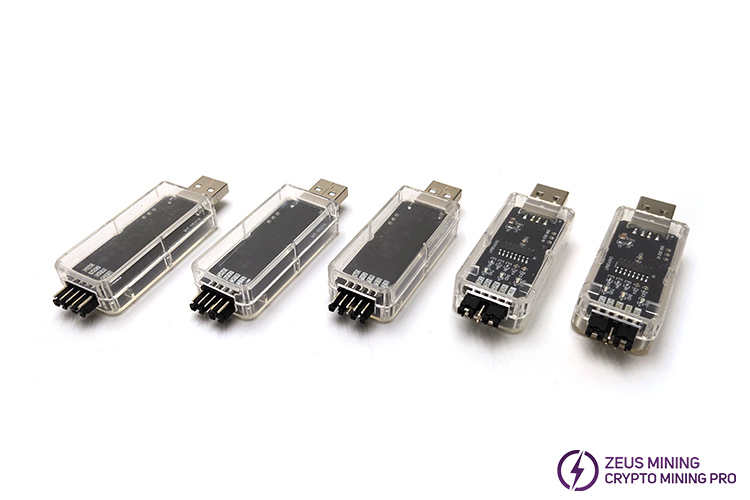

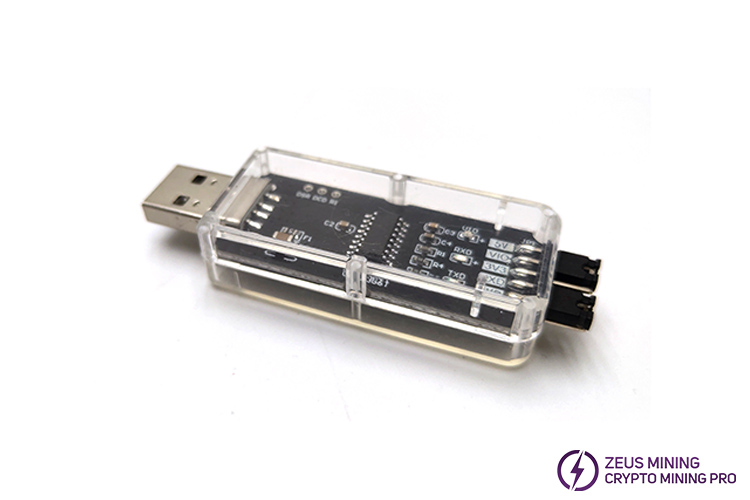

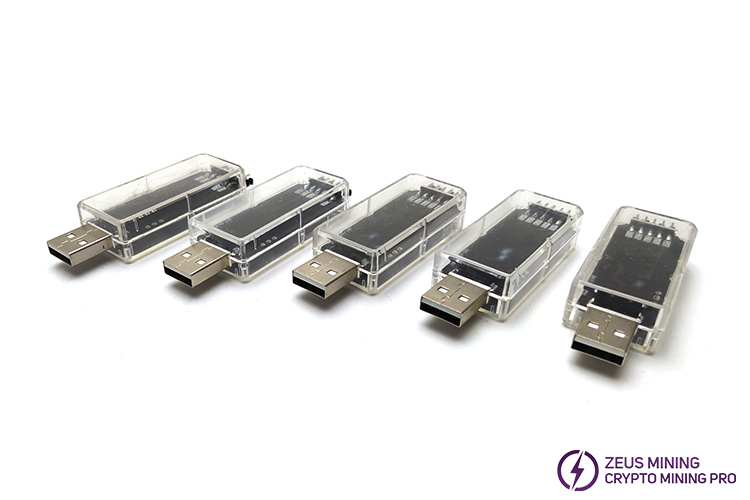

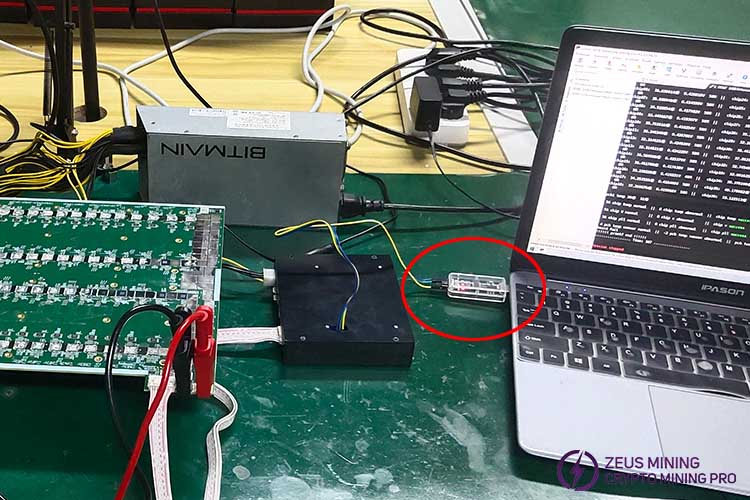

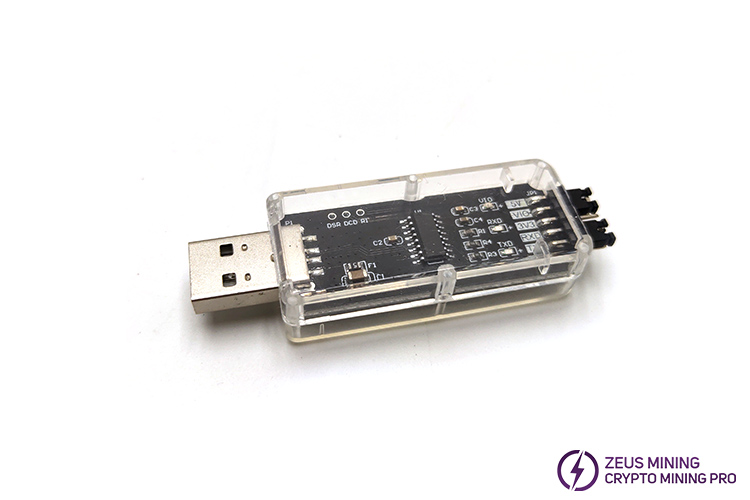

The CH343G6T USB to TTL serial port module allows the KS tester to connect to a computer and view fault logs when testing the Iceriver series hash boards. Its USB port is connected to the computer, and the other end is to the DuPont line.

The CH343G6T serial port module uses the third-generation USB-to-serial port chip CH343 to realize a USB-to-high-speed asynchronous serial port. It is used for high-speed serial port debugging, downloading, data acquisition, etc., and works stably and reliably.

Product features:

1. Supports 50~6Mbps baud rate serial communication, continuous, efficient, and stable communication at a high baud rate;

2. Supports 5V/3.3V/2.5V/1.8V and other serial communication; can be directly connected to various MCU, CPU, and other devices; no level conversion required; easy to connect and use;

3. Multi-system compatible, supports Windows/Linux/macOS/Android and other operating systems, compatible with various serial port software;

4. Supports full MODEM communication signals RTS, DTR, DCD, RI, DSR, CTS: can also be used as GPIO for MCU download, IO control, etc.;

5. Supports serial port CTS and RTS hardware automatic flow control, high-speed continuous communication without packet loss;

6. Built-in UniquelD, the module is inserted into any USB port, the serial port number can be kept fixed, no need to manually find the serial port, more convenient to use;

For details on how to use the product, please see: How to use the CH343G6T USB to TTL serial port module?
