Unit Price: | $ 0.3 |

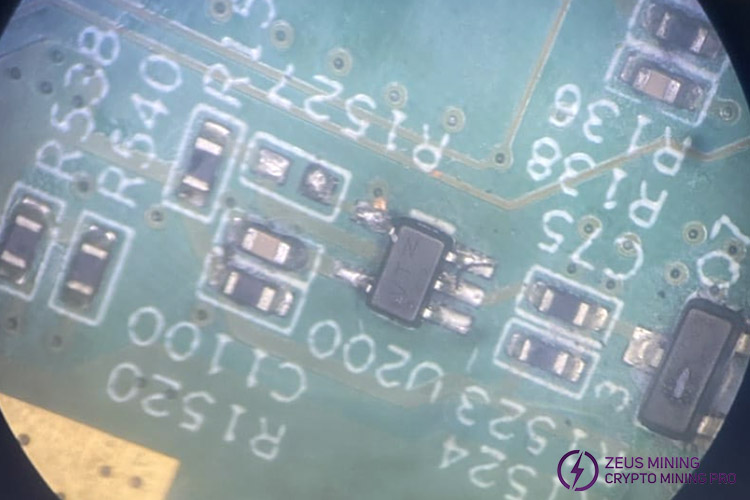

M74VHC1GT08DFT2G logic level shifter for Iceriver KS1 hash board repair
The M74VHC1GT08DFT2G is an advanced high-speed CMOS 2-input AND gate fabricated to replace defective components on the Iceriver KS1 hash board. The device inputs are compatible with TTL-type input thresholds, and the outputs have a full 5V CMOS level output swing. The input protection circuitry on the device allows for input overvoltages, allowing the device to be used as a logic-level translator from 3V CMOS logic to 5V CMOS logic or from 1.8V CMOS logic to 3V CMOS logic when operating from a high voltage supply.
Features:
• High speed: tPD = 3.5ns (typ), VCC = 5V
• Low power consumption: ICC = 1μA (max), TA = 25°C
• TTL compatible input: VIL = 0.8V; VIH = 2V
• CMOS compatible output: VOH > 0.8VCC; VOL < 0.1VCC @Load
• Power-off protection for inputs and outputs
• Balanced propagation delays
• Pin and function compatible with other standard logic families
Please click here for the specific steps of chip replacement.
