What are the Avalonminer A3205NV2 ASIC chip replacement steps?

The A3205NV2 ASIC chip is designed to replace faulty ASIC chips on the Avalon 1066 miner's hash board, assisting miners in resuming normal operation.

When one or more A3205NV2 ASIC chips on 1066 miner's hash board malfunction, it can lead to low hashrate or 0 hash rate, affecting the miner's stability and reducing mining profits. Upon detecting any abnormalities in the A3205NV2 ASIC chips, it is crucial to replace them immediately to avoid further downtime losses.

How do we replace a faulty A3205NV2 chip?

1. Disassembly the faulty hash board: Disassemble the miner, remove the faulty hash board, and place it on an insulating pad. Detach the heatsink from the hash board.

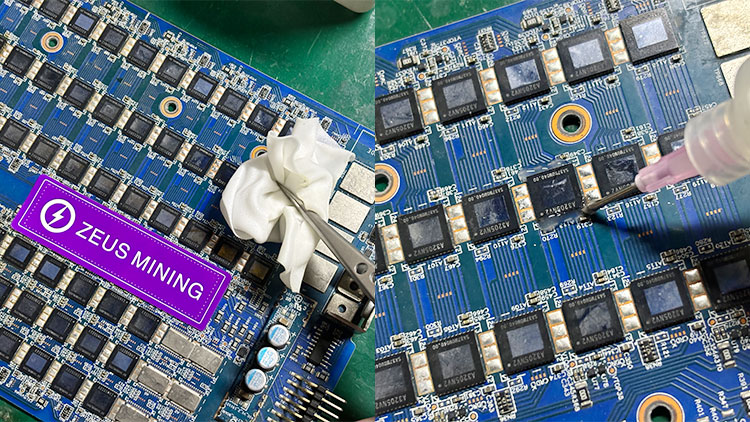

2. Locate the faulty chip: Use the Avalon test fixture to quickly identify the location of the faulty chip and clean the area around it with a circuit board cleaner, apply a suitable amount of flux around the faulty chip's pins.

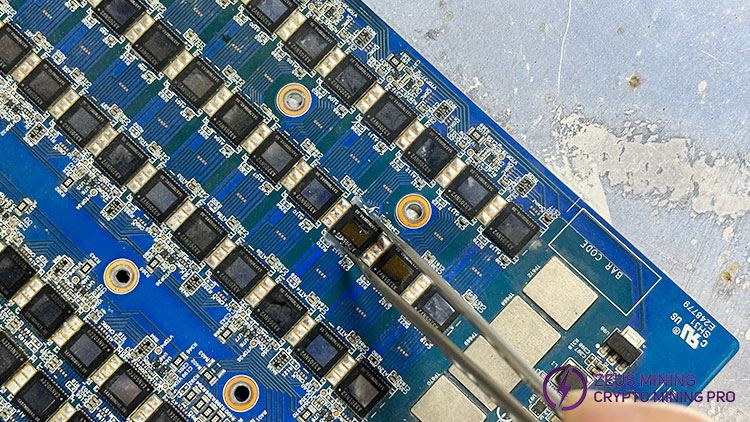

3. Desolder the faulty chip: Set a constant-temperature heating platform to approximately 300℃for preheating. Once the set temp is reached, place the hash board on the platform to heat it. When we see the solder on the chip's pins start to melt, gently grasp the chip with tweezers, lift it slowly, and take it out. Cool the hash board with a cooling fan, then use circuit board cleaner to clean any solder residue from the board.

4. Tinning the new chip: The soldering surface of the new chip is without tin, so we need to use a chip tinning tool to evenly apply tin to the surface of the new Avalon A3205NV2 chip. If we're unsure how to do this, refer to How to use the Avalon 3205 chip tin tool?

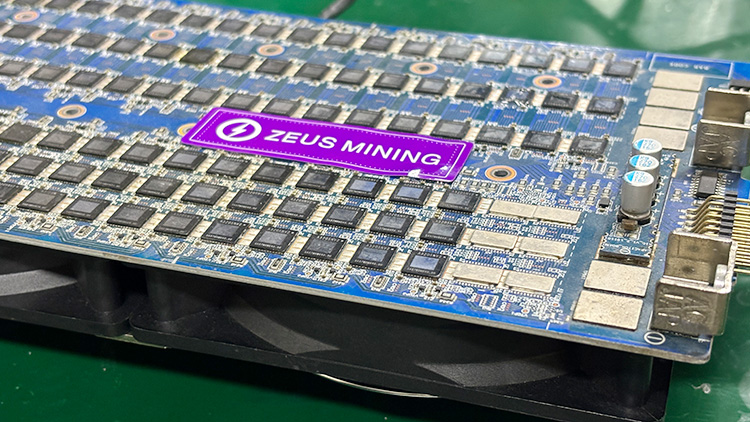

5. Soldering A3205NV2 chip: Apply some flux to the solder pads (if the tin on the pads is insufficient, we can add a small amount of tin paste). Use a heating platform to heat the A3205NV2 chip's solder pads until the solder melts. Align the chip's pins with the solder pads, continue heating until the tin paste encapsulates the chip's pins, and complete the chip soldering. After cooling the hash board, clean away any remaining solder and flux, and the process of soldering the new chip is almost complete.

6. Chip pin testing: Detect the chip signal grounding value to ensure proper soldering. Use a test fixture to check the status of the single board and ensure that the ASIC chip has been successfully replaced.

7. Install the heat sink: Apply thermal paste evenly to the chip's surface and install the heat sink.

8. Miner power on test: Place the hash board back into the miner's chassis and power on the miner for testing.

Replacing faulty A3205NV2 chips promptly can quickly restore the Avalon 1066 miner's normal mining efficiency, extend its lifespan, and yield better mining profits. It is recommended to maintain an adequate inventory of vulnerable components such as A3205NV2 chips to facilitate quick replacements in case of sudden miner failures, minimizing downtime and waiting time.
