What is the replacing method for Whatsminer M53 Hydro miner P564Y PSU?

The Whatsminer P564Y PSU is designed to provide a stable voltage of 7V-36V to ensure the stable operation of the miner. It is the best replacement for the faulty power supply of the Whatsminer M53 Hydro miner. In addition, the P564Y PSU is an upgraded version of the P564B, which is not only suitable for the M53 Hydro miner but also compatible with other Hydro miners such as M53S and M53S+.

The WhatsMiner M53 Hydro miner has attracted attention with its high hash rate of up to 226Th/s and powerful cooling efficiency. However, even equipped with the most reliable power supply, it may encounter issues such as power supply damage after miner's prolonged operation, resulting in unable start or frequent restarts. The P564Y power supply is the best solution for this problem. Timely replacement of the faulty one is the key to obtain stable mining revenue.

So, how can we quickly replace the faulty power supply for the M53 Hydro miner? The steps are as follows:

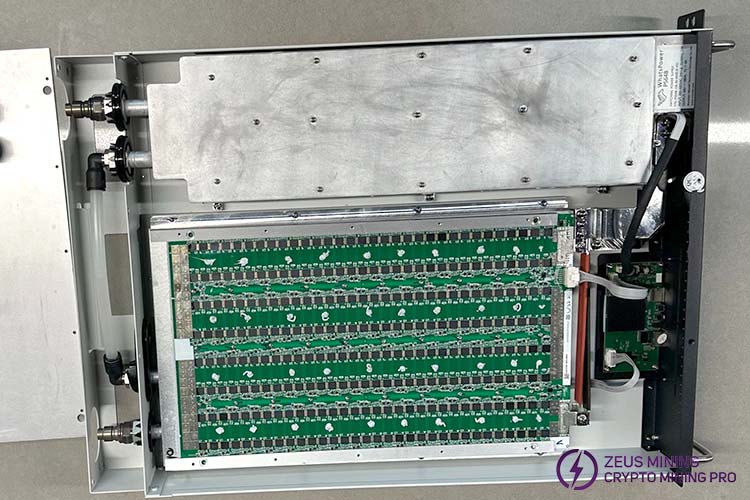

1. Power off the miner, unplug the power cord, disconnect the miner from the external radiator, remove the quick connector, and then dismantle the chassis enclosure of the miner.

2. Disconnect the cable connecting the miner's power supply to the control board, remove the conductive copper sheet, disconnect the water outlet of it from the hash board inlet, and unscrew the fixing screws on both sides to remove it.

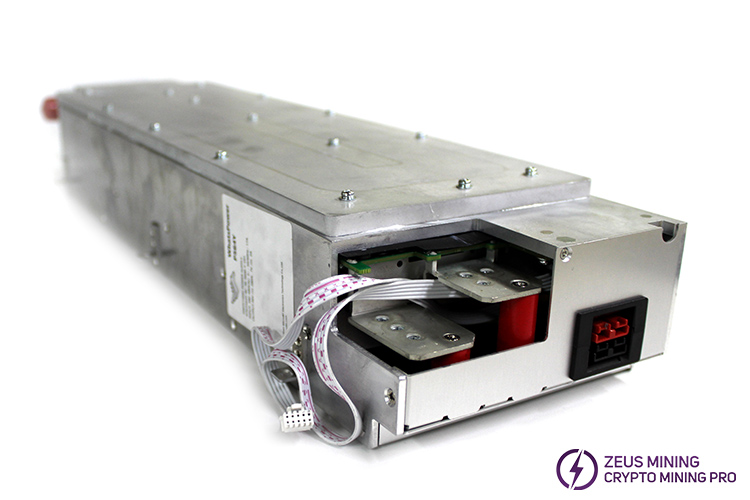

3. Inspect the new P564Y PSU, confirm that it is in good condition without damage, and install it in the original position, fixing it with screws.

4. Insert the cable connecting the PSU to the control board, install the conductive copper sheet, use the quick connector to connect the power outlet to the hash board inlet, and ensure a stable connection.

5. After installing the miner's protective shell of the miner, use a water pipe to connect the water inlet of the power supply to the water outlet of the external radiator, and use another water pipe to connect the water outlet of the hash board to the water inlet of the external radiator, fixing them with quick connectors.

6. Insert the powering cord, power on the miner and the external radiator, and check if the miner is operating normally to ensure the PSU replacement is successful.

A reliable power supply can provide stable power support for the miner during prolonged high-speed operation, thus ensuring its continuous and efficient operation. When the M53 Hydro miner encounters a power supply failure, choosing the P564Y power supply as a replacement is an economical and efficient choice.
