How to replace the CB6 V5 control board for Whatsminer M53 M63 Hydro miner?

2024/5/31

The Whatsminer CB6_V5 control board is the optimal replacement part for M53 M63 Hydro miners. It reduces miners' downtime to avoid further losses. With its excellent performance and strong compatibility, it has become the preferred solution for miners using the hydro series, including M33s+, M33s++, M53S, M53s++, and M63S.

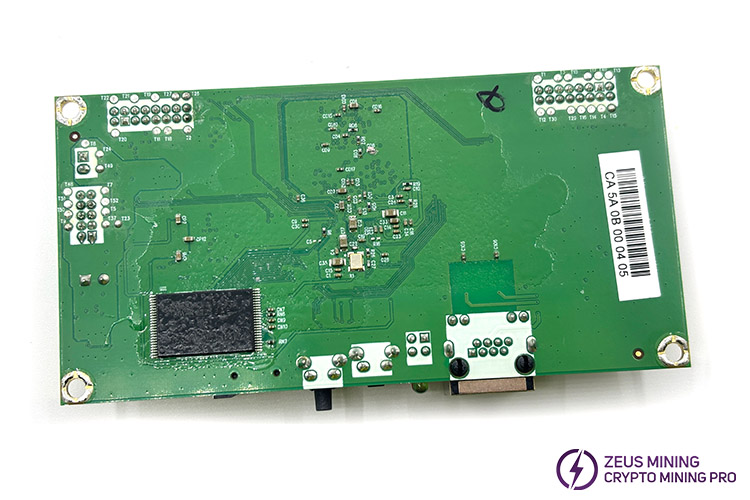

CB6 V5 control board of M53 Hydro

replace M53 Hydro miner CB6 V5 control board

When miners experience issues such as not being able to find IP or access the miner's backend, chain drop, or the network light not being light, it may be caused by a faulty control board. As the core component of the miner's operation, once the control board fails, the overall performance of the miner will be affected, resulting in reduced mining efficiency, unstable operation, or even damage the machine. By replacing a new control board, the normal operation of the miner can be restored, ensuring the stability and continuity of mining benefits.

Taking the M53 miner as an example, the specific steps for replacing the CB6_V5 control board are as follows:

Removing the faulty control board:

1. Disconnect the powering cable of the miner, then loosen the two screws that secure the control board housing.

2. Carefully pull out the control board housing, disconnect 3 cables connected to the control board (note the position of each cable for correct reconnection in subsequent steps).

3. Use an electric screwdriver to remove the four fixing screws on both sides of the control board to remove the faulty one.

Installing the new control board:

1. After checking that the new CB6_V5 control board is intact, attach a cooling pad to the corresponding position on the back of the control board CPU to ensure good heat dissipation during operation.

2. Place the new control board aligned with the screw holes on the control board housing, then tighten the fixing screws.

3. Reconnect the three cables to the new control board according to the previously recorded positions.

4. Ensure that all cables are securely connected, without any loose or unconnected ones, and then tighten the screws securing the control board housing.

5. Replace the control board housing in its original position, next tighten the two fixing screws.

Power-on test:

Re-power the miner, observe its operating status to check if the miner can work normally.

With the continuous development of the cryptocurrency mining industry, the performance and stability of miners are becoming increasingly important for miners. The Whatsminer CB6_V5 control board provides a reliable solution for them, safeguarding their mining business. We expect it to bring excellent mining experiences, making the mining journey easier and more enjoyable.
