How to quickly replace the Whatsminer CB2 V16 control board?

2024/5/31

The Whatsminer CB2_V16 control board is suitable for the M20 / M30 / M50 series miner, equipped with the H3 main control chip, and the fan interface is 4pin square. As the core component connecting various parts, the control board affects the operation of the entire miner. It can monitor the working status of the miner in real-time, ensuring the optimal mining efficiency under high-performance operation and achieving efficient and stable profitability.

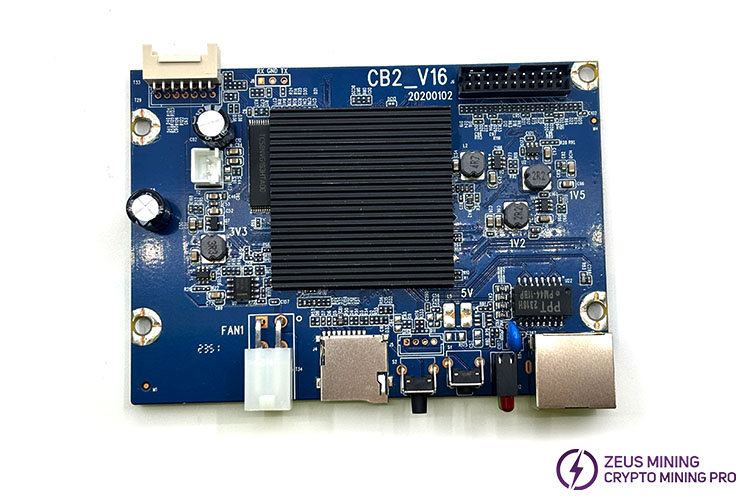

raplace Whatsminer M50 control board

Long-term operation of the miner may cause failures in the control board. If the miner experiences issues such as 0 or low hash rate, abnormal fan speed, non-working or red indicator lights, inability to find IP or chain loss in the background log, and inability to recover, it may be due to damage to the control board.

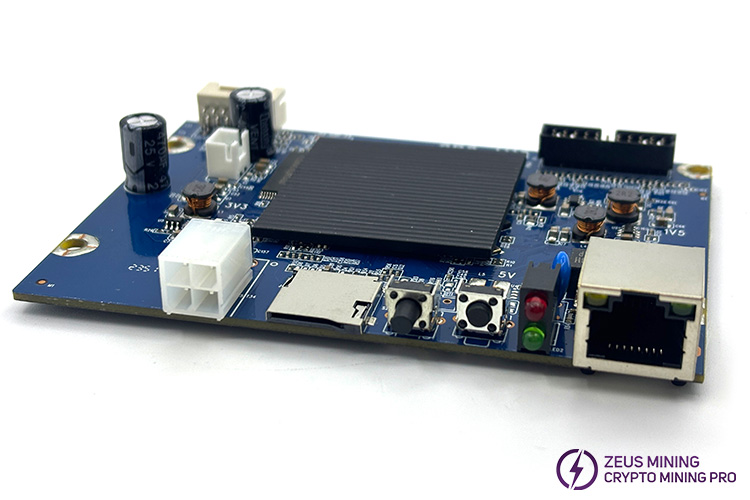

CB2 V16 control board

Steps to replace the CB2_V16 control board:

1. First, disconnect the powering of the miner to ensure safe operation.

2. Unplug the fan cables and network data cables, use a screwdriver to unscrew the screws fixing the control board cover, carefully flip the protective cover, and expose the control board.

3. Disconnect all cables connected to the control board: adapter board cables and cables connected to the power unit.

4. Unscrew the four screws fixing the control board and take it out.

5. After checking that the new CB2_V16 control board is intact, install it correctly into the cover plate and secure it with screws.

6. Insert all the cables on the board, make sure they are sturdy, and install the protective cover.

7. After the replacement is completed, you need to flash the corresponding firmware. Click to view the Whatsminer control board burning operation guide to flash.

8. After completing all steps, reconnect the network cable, fan cables, power on, start the miner, and check the operation status.

During replacement, pay attention to electrostatic prevention to avoid damaging electronic components. Handle carefully during disassembly and installation to prevent damage to other components.

Note: Specific models that can replace Whatsminer include ASIC miners such as M20s, M30s, M30, M31s+, M32, M30S+, M50, M50S+, and more.

Through the above steps, we can successfully replace the Whatsminer CB2_V16 control board, restore the mining ability of the miner, and obtain stable economic benefits in the fierce market competition. If you have any questions or need further technical support, please feel free to seek professional help.
