Whatsminer CB6 V7 control board replacement tutorial

2024/6/4

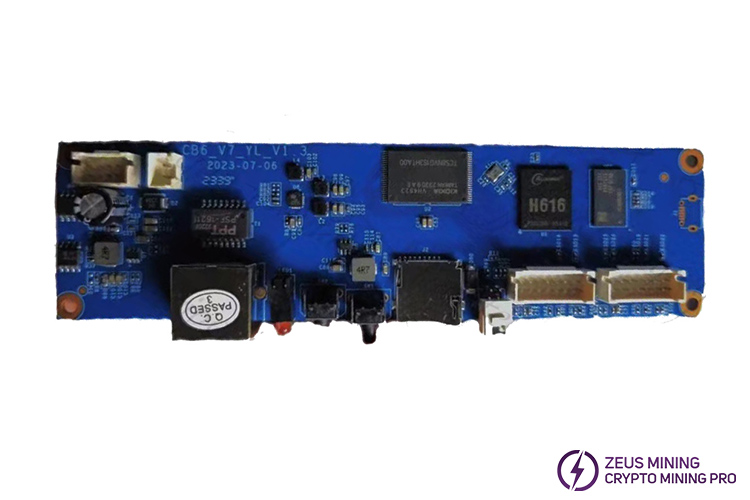

The Whatsminer CB6 V7 control board is suitable for using in M56, M56S, M56S+, M56S++, M66S, M36S+, and M36S++ oil-cooled miners, featuring the H616 main control chip. It serves as the core component for miner operation, encompassing various functions such as control, monitoring, and communication. Through the adoption of high-performance hardware design and software support, the control board ensures the miner's efficient operation, enhancing mining efficiency and profitability.

replace Whatsminer CB6 V7 control board

Damage to the oil-cooled miner's control board can lead to severe consequences, including the miner's inability to operate normally, a significant drop in mining efficiency, the inability to monitor and manage the miner, and even a complete loss of control over it, thus significantly affecting profitability and the miner's lifespan. Therefore, maintaining the integrity and proper operation of the control board is crucial for the stability and performance of oil-cooled miners.

Taking M56S+ as an example, here are the steps for replacing the control board of an oil-cooled miner:

1. First, ensure the miner is powered off. Back up all data to prevent data loss.

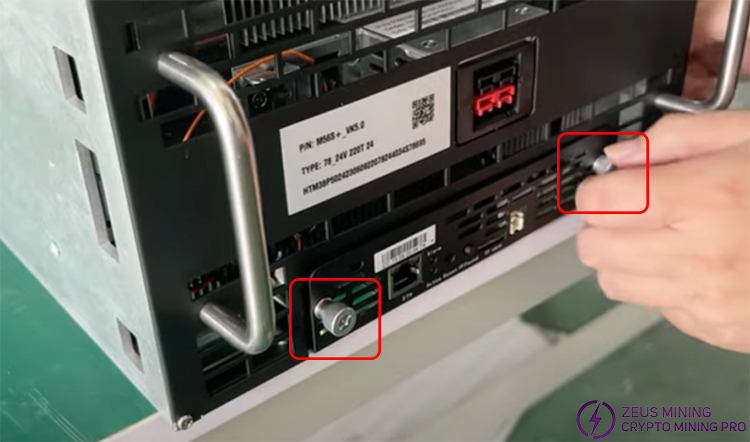

2. According to the unique design of the miner's control board, unscrew the external screws and open the protective shell.

replacing a faulty CB6 V7 control board

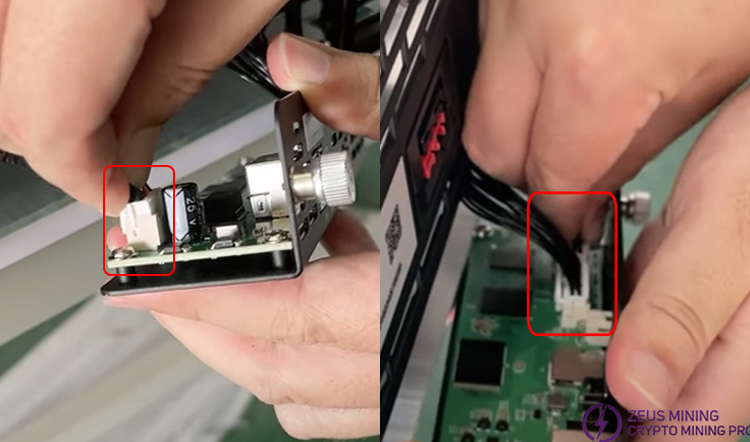

3. Disconnect all plugs and cables from the damaged control board, making sure to mark the corresponding positions of the plugs for ease of subsequent installation and use.

MicroBT Whatsminer M56S replacement parts

4. Use a screwdriver to unscrew the four fixing screws of the control board and remove it.

CB6_V7 motherboard for Whatsminer oil-cooling miner

5. Check if the specifications, interfaces, and slots of the new control board match the miner model.

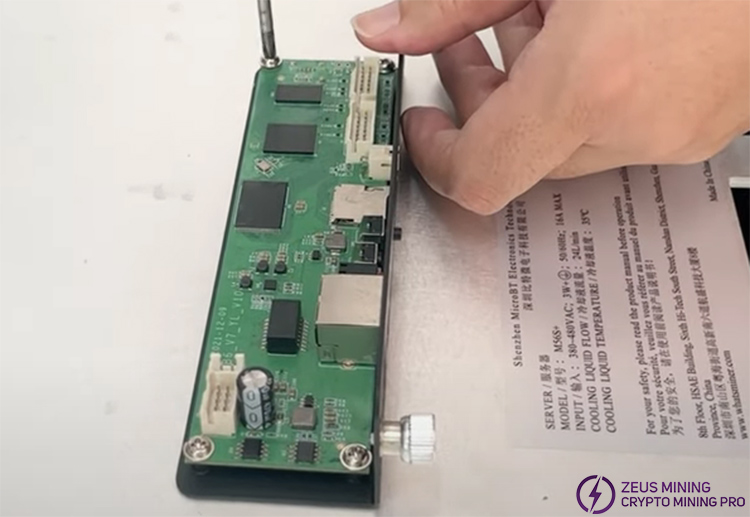

6. Also, use screws to fix it onto the separate protective case.

CB6_V7 control board for Whatsminer M66S

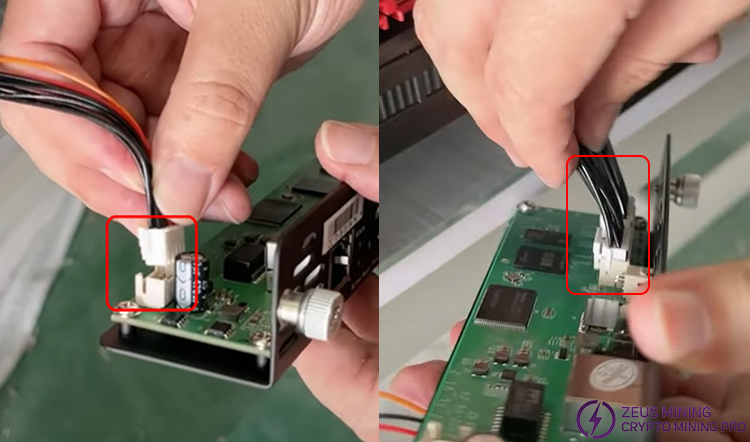

7. Connect all the cables and plugs in sequence according to the previously marked plug positions, and install the screws for the miner's internal protective case.

remove the damaged M56 control board

8. Connect the power supply and turn on the miner. Configure and calibrate the new control board in the software to ensure its normal operation.

9. Perform a comprehensive functional test to ensure that all functions of the control board and miner are normal.

Note: Replacing the control board requires careful operation. Throughout the entire replacement process, please ensure to follow safety procedures to avoid electric shock or other hazards.

By following the above steps, we can successfully complete the replacement of the Whatsminer CB6_V7 control board. Replacing a faulty control board can help restore the normal mining performance of oil-immersion cooled miners, enhance their stability and reliability, extend their lifespan, then provide a more efficient and stable mining experience.
