How can the SPS-C3010 adjustable DC power supply be used during the ASIC miner repair?

KUAIQU SPS-C3010 is a regulated DC power supply with automatic temperature control, four-digit display, coarse and fine adjustment functions. It is usually used to help power the hash board when repairing the ASIC miner repair progress.

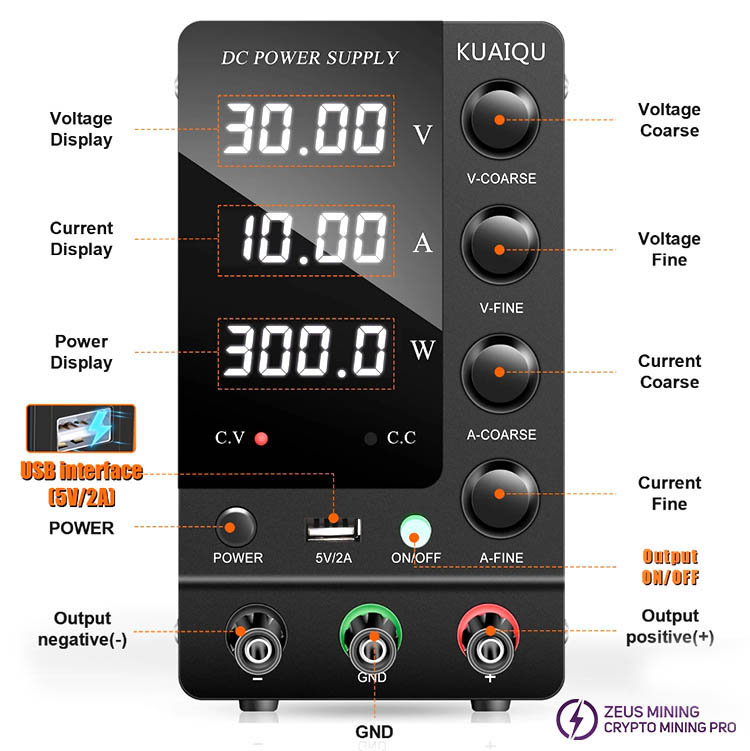

What are the features of KUAIQU SPS-C3010?

Coarse and fine adjustment: Voltage and current can be coarsely and finely adjusted.

Multiple protections: overvoltage, overcurrent, overtemperature and short circuit protection.

Preset current: current can be set without shorting.

Large screen: four-digit display.

Interface: USB interface (5V, 2A)

Product parameters:

Output voltage: 0-30V

Output current: 0-10A

Output power: 300W

Steps to use SPS-C3010 and help ASIC miner hash board test voltage:

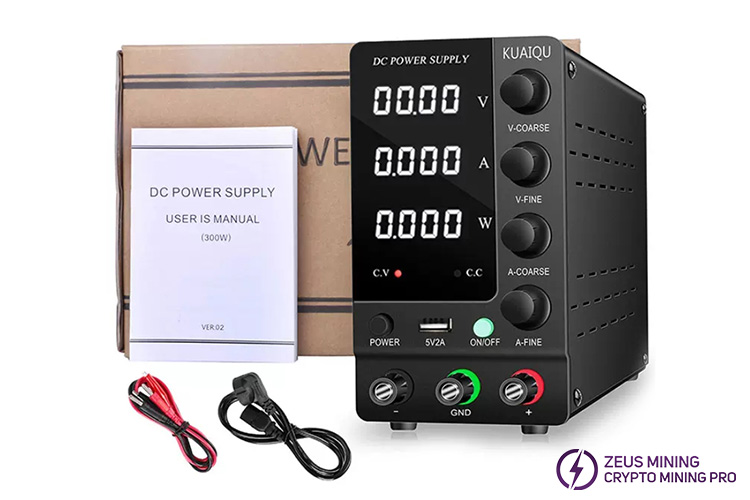

Prepare tools: SPS-C3010 adjustable DC power supply, red and black output wires, multimeter, cooling fan, ASIC miner hash board

Set up SPS-C3010

Connect the power cord and turn on the SPS-C3010 power switch.

Set the voltage and current using the knob on the power supply. The voltage should be consistent with the output voltage of the miner PSU of the hash board being measured. When repairing the hash board, the current is set to 10A by default.

Use the red and black output wires to connect the positive and negative poles of the power supply respectively. Black is the negative pole and red is the positive pole.

Test voltage

Modulate the multimeter to the DC voltage range, turn on the cooling fan and place the hash board to be tested on it.

Then connect the other end of the red and black output wires to those of the hash board, first the negative pole and then the positive pole.

Finally, press the "ON/OFF" output switch on the SPS-C3010, then use the multimeter to test the voltage at various locations on the hash board for maintenance.

The KUAIQU SPS-C3010 adjustable DC power supply makes the maintenance of ASIC miner hash board more accurate and efficient, and the powering of hash board more stable, thanks to its powerful functions of adjustable voltage and current, high-definition digital screen display and automatic temperature control.
