How to use the thermal grease tool to apply grease on the Antminer S19 Hydro ASIC chip?

The drying of the thermal grease on the Antminer S19 Hydro hash board will cause the heat dissipation performance of the ASIC chip to deteriorate. We can use the thermal grease tool to re-apply thermal grease to the ASIC chip to solve the heat dissipation problem.

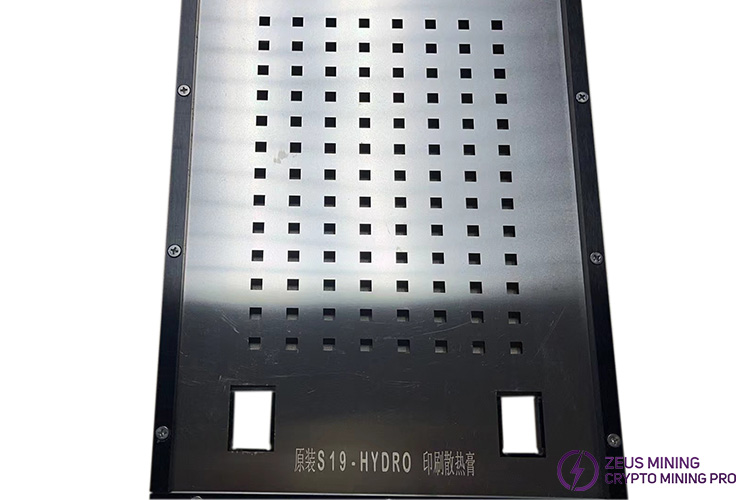

This thermal conductive silicone tool is designed specifically for S19 Hydro hash board . It precisely fits the hole of BM1398BB ASIC chip, which can help the chip to quickly and evenly apply silicone grease, so that it has a better heat dissipation effect.

Steps to apply thermal grease to the BM1398BB ASIC chip using the thermal grease tool:

Tools: Antminer S19 Hydro hash board, S19 Hydro dedicated thermal grease tool, dust cloth, cleaning agent, thermal grease, scraper.

Use a dust cloth soaked in detergent to clean the impurities and dirt on the surface of the Antminer S19 Hydro hash board to keep a clean and tidy surface.

Cover the S19 Hydro dedicated thermal grease tool on the BM1398BB ASIC chips. The holes of the thermal grease tool should be aligned with the ASIC chips to prevent the thermal grease from being applied outside the chip.

Use a scraper to evenly apply the thermal grease on the ASIC chips through the thermal grease tool. The thickness of the application should be about the thickness of an A4 paper.

After the application is completed, gently remove the thermal grease tool and the application work is completed.

Note:

Make sure that the thermal grease is applied evenly without bubbles and gaps.

The Antminer S19 Hydro hash board thermal grease tool can improve the heat dissipation performance of the BM1398BB ASIC chip, help the chip dissipate heat better, and extend the service life of the Antminer S19 Hydro.
