How to replace the PSU3400-01 power supply for Avalon A1346 A1366?

2024/6/8

When the power supply of Avalon A1346 and A1366 is in a high-intensity working state for a long time, it may cause it to malfunction or even damage. Avalon PSU3400-01 is a replacement PSU designed for Avalon A1346 and A1366, which can help Avalon miner quickly restore performance and make it run more smoothly.

Avalon PSU3400-01 product parameters:

Input port

Input voltage range: 200-300VAC

Input voltage frequency: 50/60HZ

Maximum input current: 16A

Output port 1

Output voltage range: 11.5V-14.5V

Maximum output power: 3100W

Output port 2

Output voltage range: 12V

Maximum output power: 200W

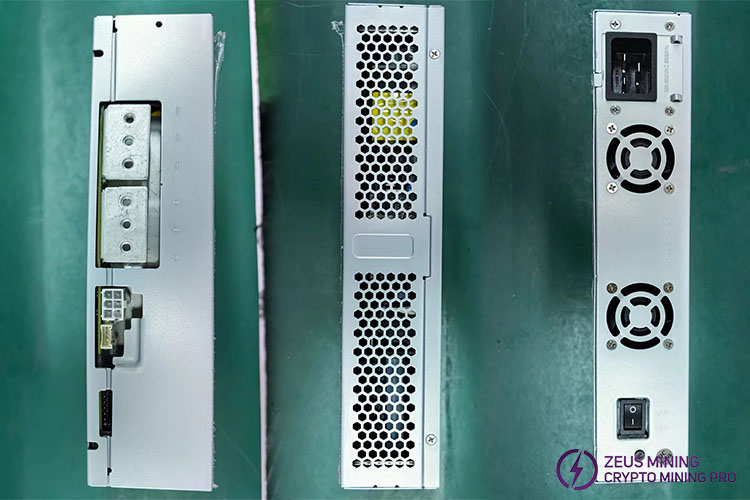

PSU3400-01 PSU for Avalon 1366 miner

Steps to replace PSU3400-01 for Avalon A1346:

Disconnect the powering of Avalon A1346, unscrew the fixing screws on the PSU protective shell, and remove it.

Unplug the relevant connection cables of the control board. Simply clean the dust and unscrew the 4 fixing screws on the power supply terminal. Press the plug of the PSU slot, slide the old one off the fixed rail on the slot and remove it.

Align the PSU3400-01 with the fixed rail and push it forward until it is successfully inserted into the slot.

Then re-tighten the fixing screws and plug in the power cable. Install the control board cable.

Finally, put the protective shell back in place and tighten the screws on the top of the protective shell.

Power on the Avalon A1346 and test the operating status of the power supply. If it is operating normally, the replacement of the PSU3400-01 PSU is successfully completed.

The Avalon miner requires a stable powering to ensure its normal operation. The power supply is a very important and indispensable part of it. Avalon PSU3400-01 PSU can not only improve the mining efficiency and hash rate of the Avalon A1346 or A1366, but also has enough stable power to support its operation. And it can also convert more electrical energy into usable power for the Avalon miner, reducing energy waste. This can effectively reduce mining costs and increase mining profits.
