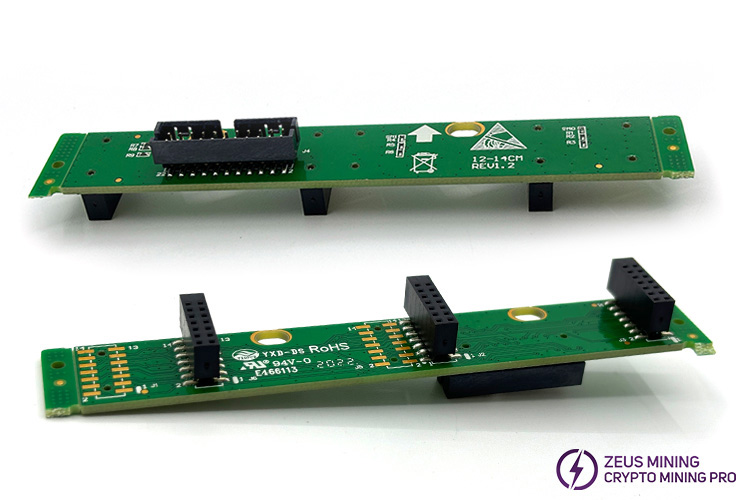

Whatsminer M10 D1 adapter board user tutorial

Whatsminer M10 D1 adapter board plays a crucial role in the miner. It enables the connection and integration between the hash board and the control board, ensuring that these two core components can work together, to improve the efficiency and stability of the entire miner system. It is suitable for Whatsminer M10 and D1.

How to replace the adapter board for Whatsminer M10 and D1? The steps are as follows:

Prepare tools: screwdriver, Whatsminer adapter board

1. First, disconnect the powering of the miner. Unplug the cable of the air inlet fan from the control board, unscrew the fixing screws and remove the control board.

2. Next, unplug the cables connecting the control board and the old adapter board.

3. Then, unscrew the fixing screws of the old adapter board and remove it. Install the new Whatsminer M10 D1 adapter board and tighten the screws.

4. Finally, plug in the connection cables, install the control board housing, and tighten the fixing screws of the housing.

Don't forget that the cable of the air inlet fan also needs to be reinserted into the control board.

The existence of the Whatsminer M10 D1 adapter board optimizes data stream transmission, making data transmission between the hash board and the control board more efficient and accurate. Through the connection of the adapter board, the hash board and the control board can form a stable system, which together provide strong support for the stable operation of the miner.
